Note
When you use high bandwidth video formats such as 4K/60p 4:4:4, 4:2:2 and 4K/60p 4:2:0 10 bit, be
sure to set the HDMI signal format. For details, see “Setting HDMI signal formats (
HDMI Signal
Format).”
Depending on the TV or video device, 4K or 3D content may not be displayed. Check the HDMI
video formats supported by the receiver.
Refer to the operating instructions of each connected device for details.
[28] Preparation 4. Connecting audio-visual devices and the antennas (aerials)

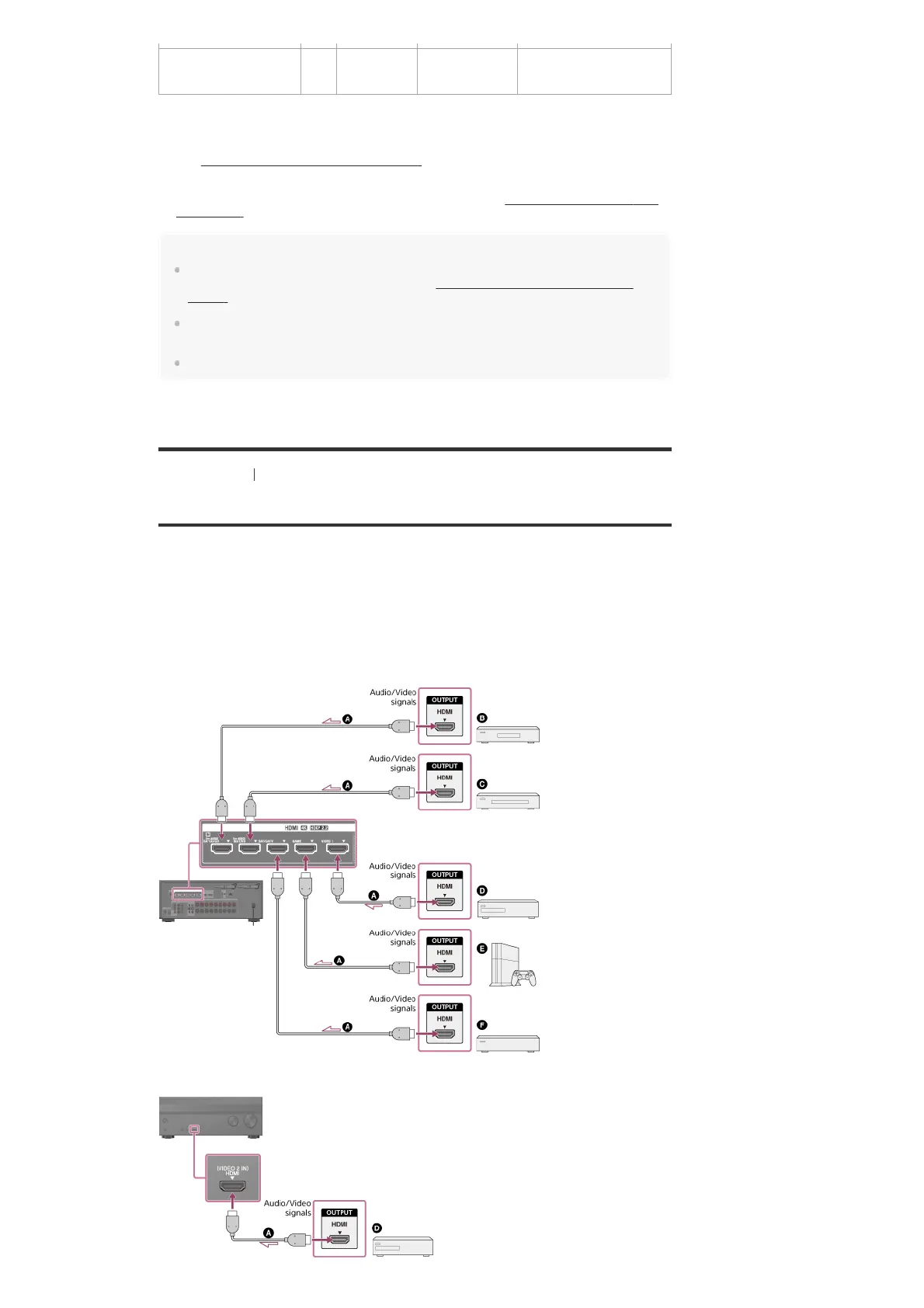

Connecting devices with HDMI jacks
Connect devices to the receiver as illustrated below. Before connecting cables, be sure to
disconnect the AC power cord (mains lead).
All HDMI jacks on the receiver support High-bandwidth Digital Content Protection System
Revision 2.2 (HDCP 2.2). To watch content protected by HDCP 2.2, such as 4K content,
connect these HDMI jacks to jacks that support HDCP 2.2 on the TV and AV device. Refer to
the operating instructions of the connected device for details.
Rear
Front
640 × 480p @ 59.94/60
Hz
○ - - -
If you use YCbCr 4:4:4/YCbCr 4:2:2/RGB 4:4:4 or YCbCr 4:2:0 Deep Color (Deep Colour) (10 bit or 12 bit) of
these video formats, we recommend you to use Premium High Speed HDMI Cables with Ethernet that support 18
Gbps and be sure to set the HDMI signal format to [Enhanced format] in the [HDMI Settings] menu. For details,
see “Setting HDMI signal formats (
HDMI Signal Format).”
*1
If you use Deep Color (Deep Colour) (10 bit or 12 bit) of these video formats, we recommend you to use
Premium High Speed HDMI Cables with Ethernet that support 18 Gbps and be sure to set the HDMI signal
format to [Enhanced format] in the [HDMI Settings] menu. For details, see “Setting HDMI signal formats (
HDMI
Signal Format).”
*2
To Next Page
