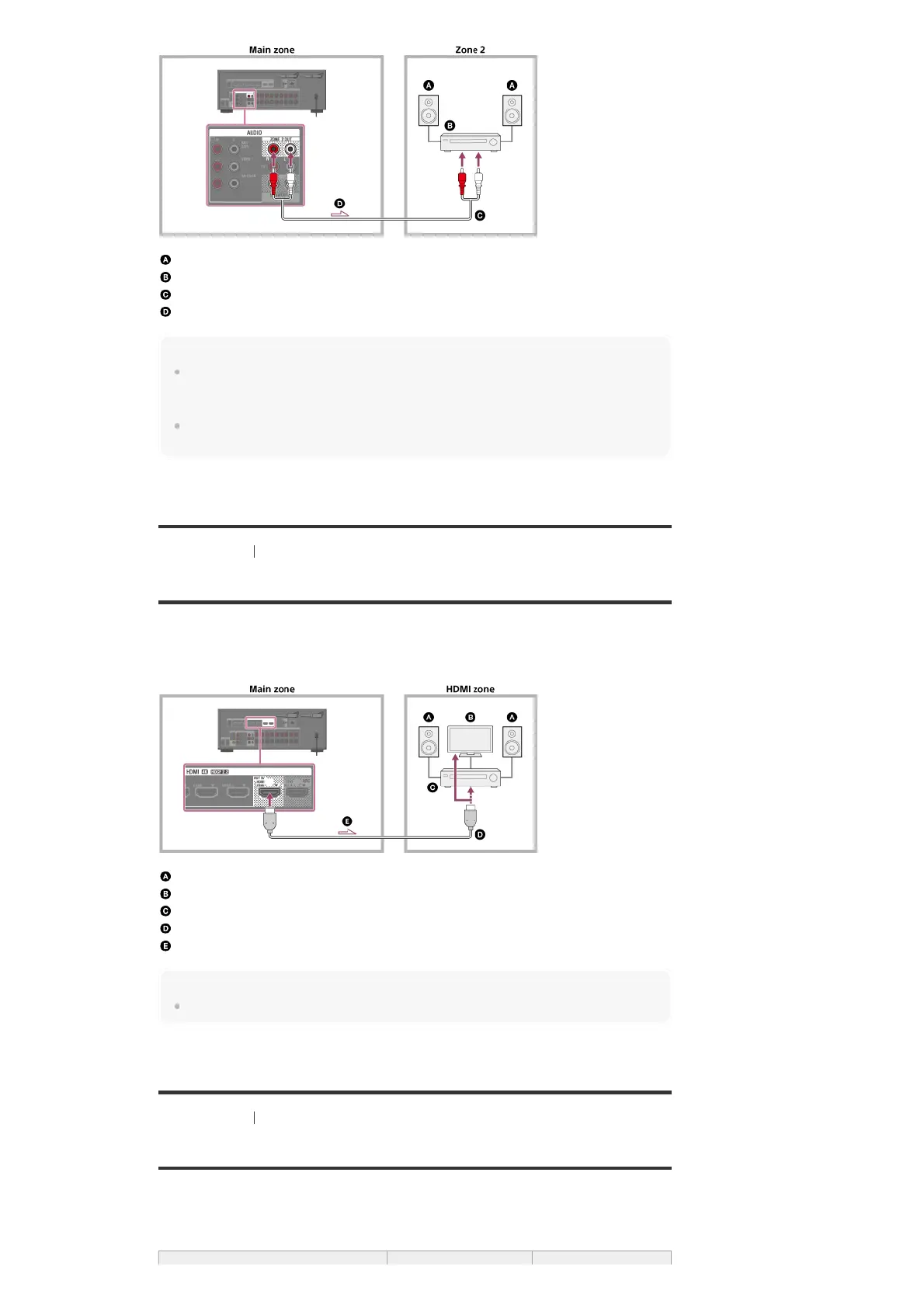

Speakers
Amplifier/receiver
Audio cable (not supplied)
Audio signals
Note
Only audio signals from [USB], [Bluetooth] (only when in BLUETOOTH RX mode), [Home Network],
[Music Services], [FM TUNER] and audio signals input from AUDIO IN jacks are output to the Zone
2 speakers.
External digital input from OPTICAL IN, COAXIAL IN, HDMI IN jacks and Screen mirroring cannot be
output to Zone 2.
[33] Preparation 4. Connecting audio-visual devices and the antennas (aerials)
Connecting another amplifier or TV in the HDMI zone
HDMI input video/audio signals are output in HDMI zone using the HDMI OUT B/HDMI ZONE
jack of the receiver.
Solid lines show recommended connections and the dashed line shows alternative connection.
Speakers
TV
Amplifier/receiver
HDMI cable (not supplied)
Audio/video signals
Note
To use this connection, select [Setup] - [HDMI Settings], and set [HDMI Out B Mode] to [Zone].
[34] Preparation 4. Connecting audio-visual devices and the antennas (aerials)
Digital audio formats supported by the receiver
The digital audio formats that this receiver can decode depend on the digital audio output jacks
of the connected device. This receiver supports the following audio formats. The words in
brackets are those indicated on the display panel.
