Product Description
3.1 Overall Design of the Inverter

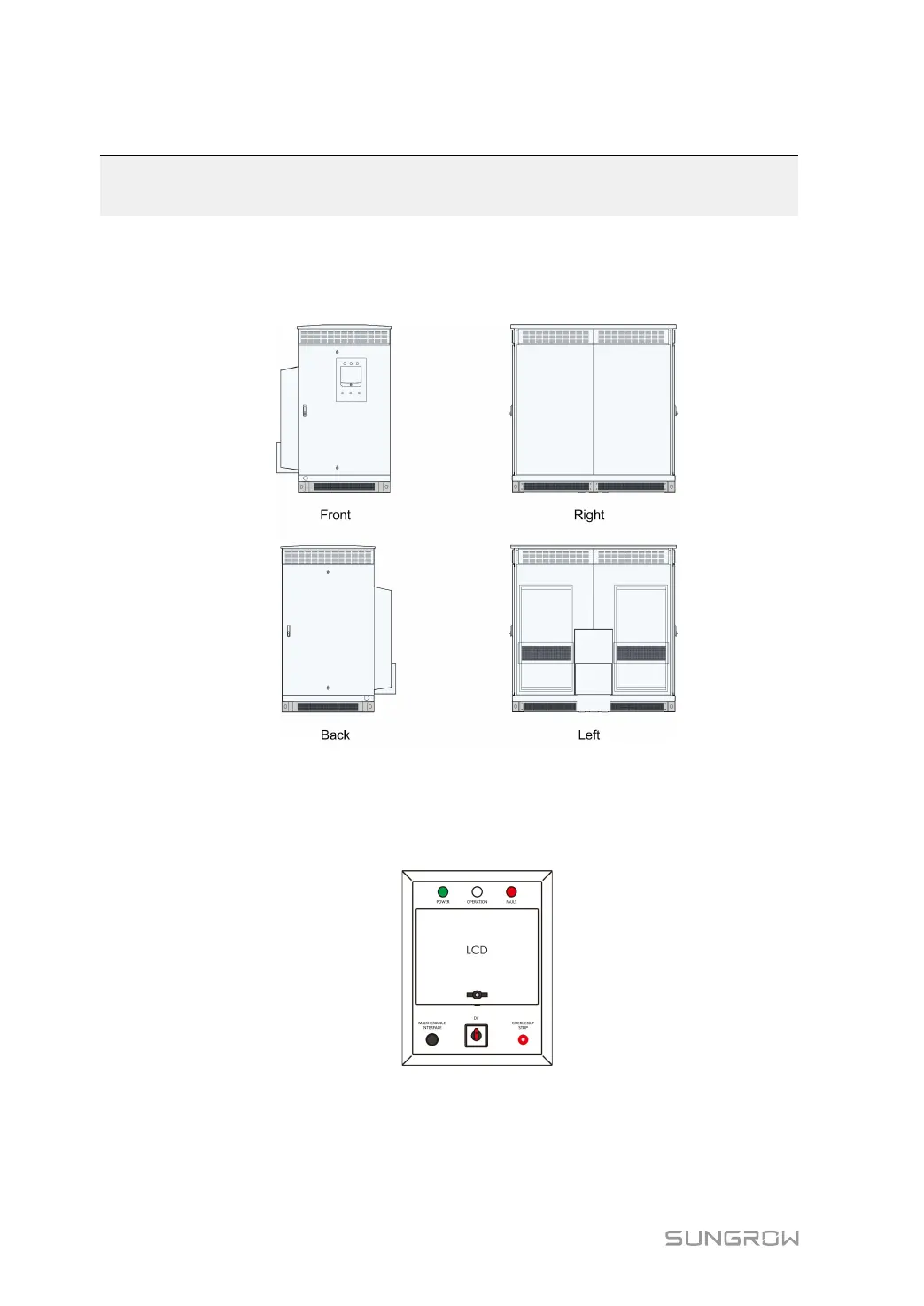

3.1.1 Inverter Views
Control and Monitoring Window
The Control and Monitoring window is located on the front door of the inverter.
As shown in the figure below, the LED indicators are at the upper part, the color liquid crystal
(LCD) touchscreen is at the middle part, and the emergency stop button is at the lower part.
The LEDs at the upper side of the Control and Monitoring Window: POWER indicates the
power-on state; OPERATION indicates the proper operation of the inverter; FAULT indicates
a fault condition.
LED Indicators
The working status of the inverter can be acquired through these LEDs.
