6.2.2 Opening the Inverter Door
Opening the Enclosure

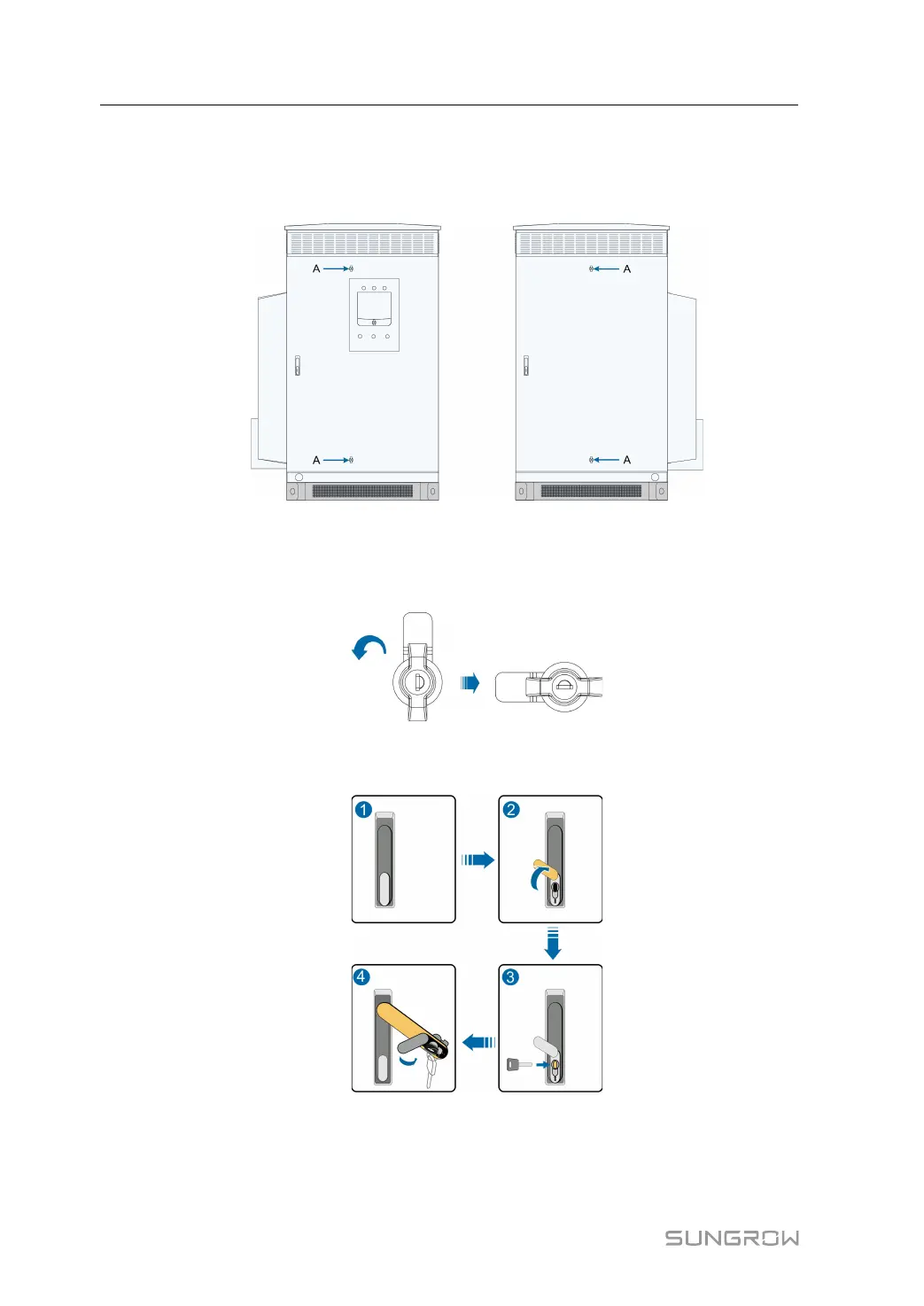

The locks are installed on the inverter enclosure (Figure A below).
1 Open the protective cover on the door lock.
2 Insert the key.
3 Turn the handle counterclockwise to unlock the door.
Opening the Door Lock
Open the doors before cable connection.
Fixing the Enclosure
When the cabinet door is opened, the studs slide naturally. When the stud slides to the
gourd hole (Figure B), the limit rod is automatically fixed.
