14
*The figure above is indicative only.
Remark Name
Description
QS1
DC load break switch
Connecting/disconnecting the DC
side of the inverter.QS3
QS2*
Energy storage device switch
Connecting/disconnecting the
energy storage device.
QS4*
QS5
DC maintenance switch
Disconnect the switch before
maintaining DC cabinet
components.
QS6
AC maintenance switch
Disconnect the switch before
maintaining AC cabinet
components.
* is optional.

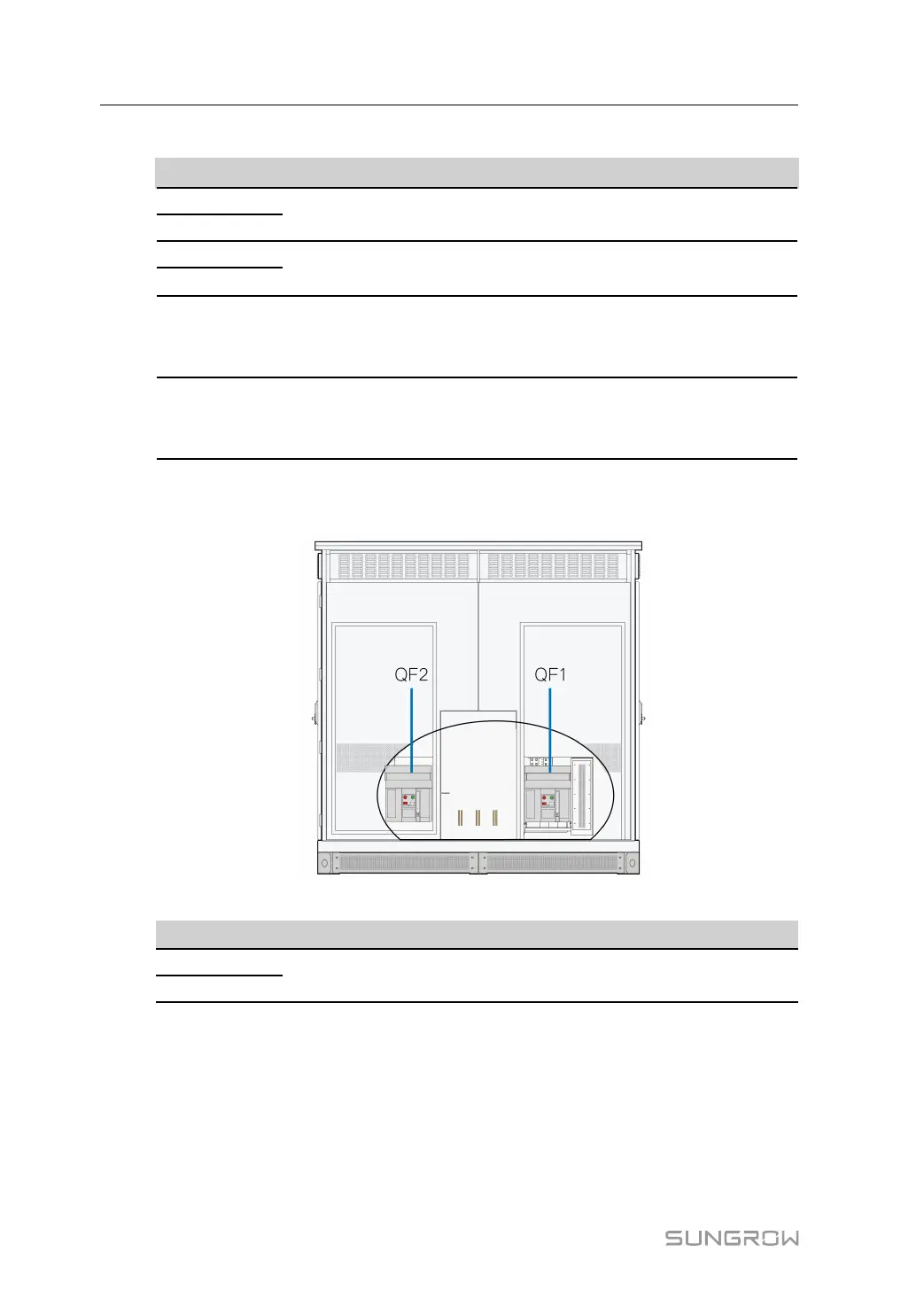

AC Cabinet
figure 3-2 AC cabinet
Remark Name
Description
QF1
AC circuit breaker
Connecting/disconnecting the AC side of
the inverterQF2
3.2.3 Operations on the DC and AC Side
DC load break switches and AC circuit breakers are provided on inverter.
3 Product Description System Manual
