Main Menu
First sub-
menu
Second sub-menu Third sub-menu
Stop
-
Set-
parameter
Sys-parameter
Language & Firmware Ver.
Time
Remote/Local control
E-adjust
Load default
Run-parameter
-
Pro-parameter
-
Com-parameter
Address
Serial port param
Network param

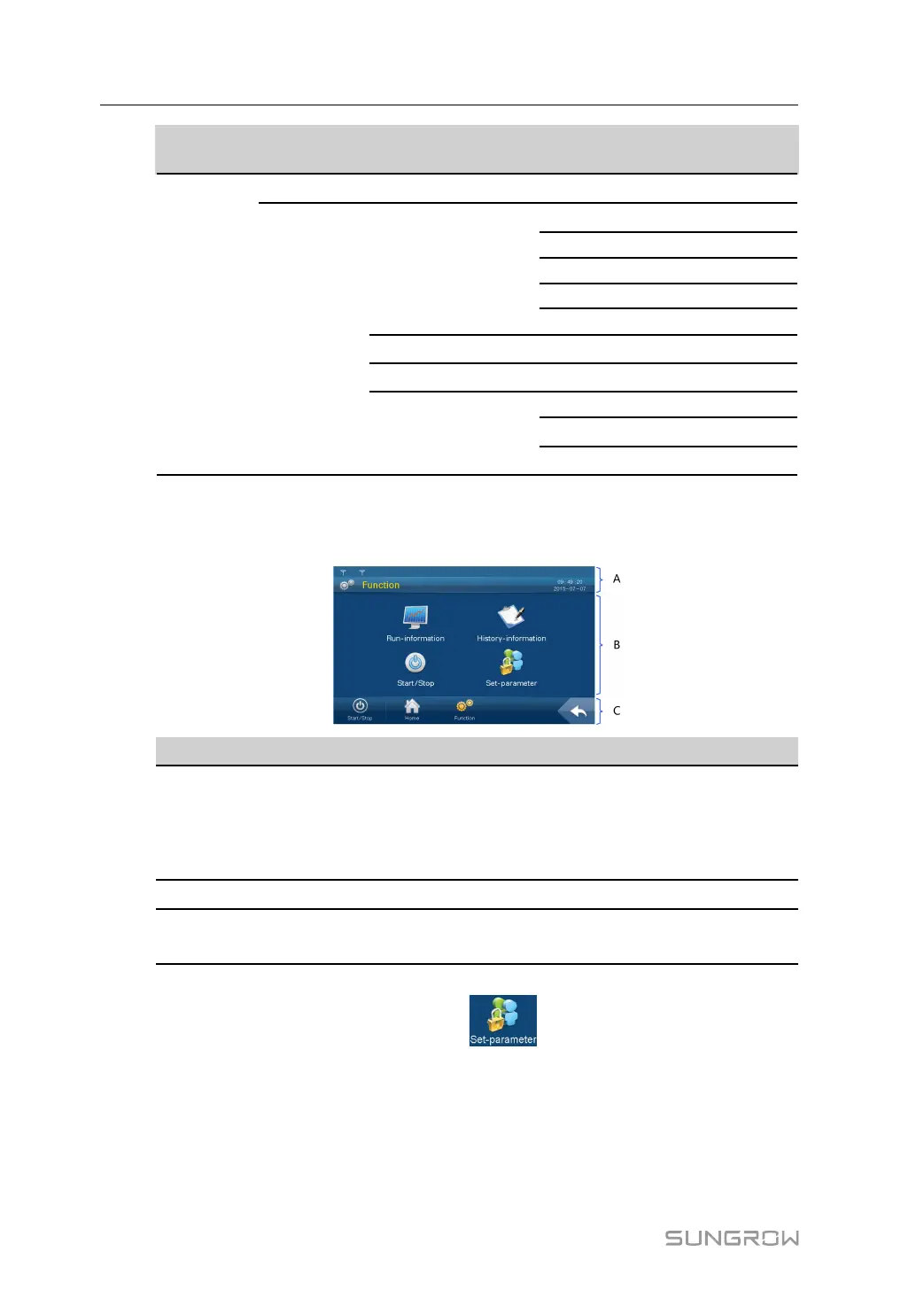

9.3.2 Layout of the submenus
The layout of submenus is the same as that shown below except for the default menu.
No.
Description
A
Title bar
The first line on the top indicates the present success rate of communication.
The left side of the second line is the name of the present page, while the
right side is the present date and time.
B
Data display or parameter configuration.
C
From left to right: there are three main icons and a return button which is
used to return to the previous menu.
For convenience’s sake, the operations on the menus are referred to as the menu name
with quotation marks. For example, the
menu will be referred to as “Set-
parameter”.
9 LCD Menu Operation System Manual
