6-2 FI SYSTEM/ CVT SYSTEM
PRECAUTIONS IN SERVICING
When handling the FI/CVT component parts or servicing the FI
system/CVT system, observe the following points for the safety
of the system.
ELECTRICAL PARTS

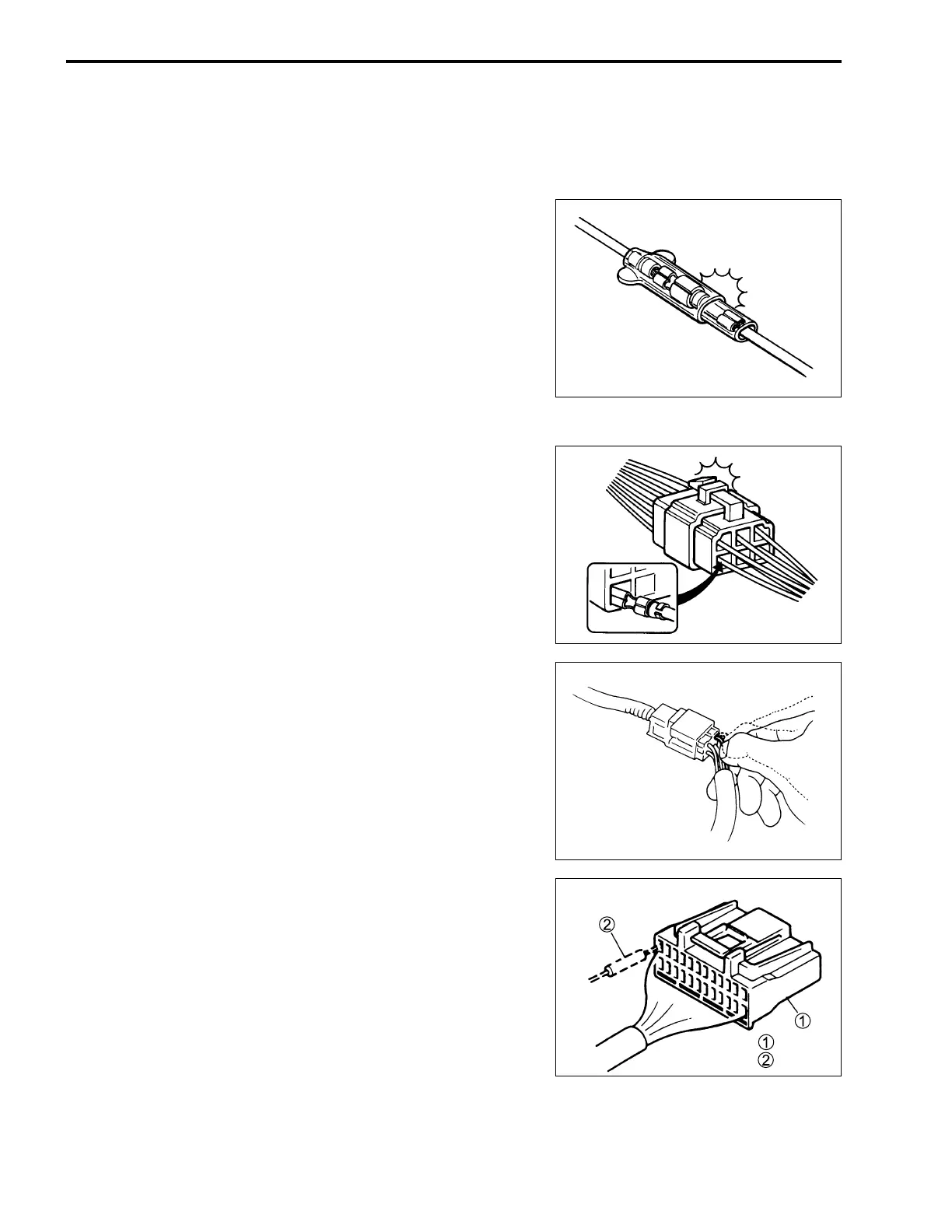

CONNECTOR/COUPLER
• When connecting a connector, be sure to push it in until a
click is felt.
• With a lock type coupler, be sure to release the lock when dis-
connecting, and push it in fully till the lock works when con-
necting it.
• When disconnecting the coupler, be sure to hold the coupler
body and do not pull the lead wires.
• Inspect each terminal on the connector/coupler for looseness
or bending.
• Inspect each terminal for corrosion and contamination.
The terminals must be clean and free of any foreign material
which could impede proper terminal contact.
• Inspect each lead wire circuit for poor connection by shaking it
by hand lightly. If any abnormal condition is found, repair or
replace.
• When taking measurements at electrical connectors using a
tester probe, be sure to insert the probe from the wire harness
side (backside) of the connector/coupler.
Click
Click
Coupler
Probe

Suzuki AN650 2002 Specifications

General

Displacement	638 cc
Compression Ratio	11.2:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-15
Rear Tire	160/60-14
Bore x Stroke	75.5 mm x 71.3 mm
Front Brakes	Disc
Fuel Tank Capacity	15 liters
Seat Height	750 mm
Transmission	CVT
