Suzuki AN650 2002 User Manual

11-26 SERVICING INFORMATION

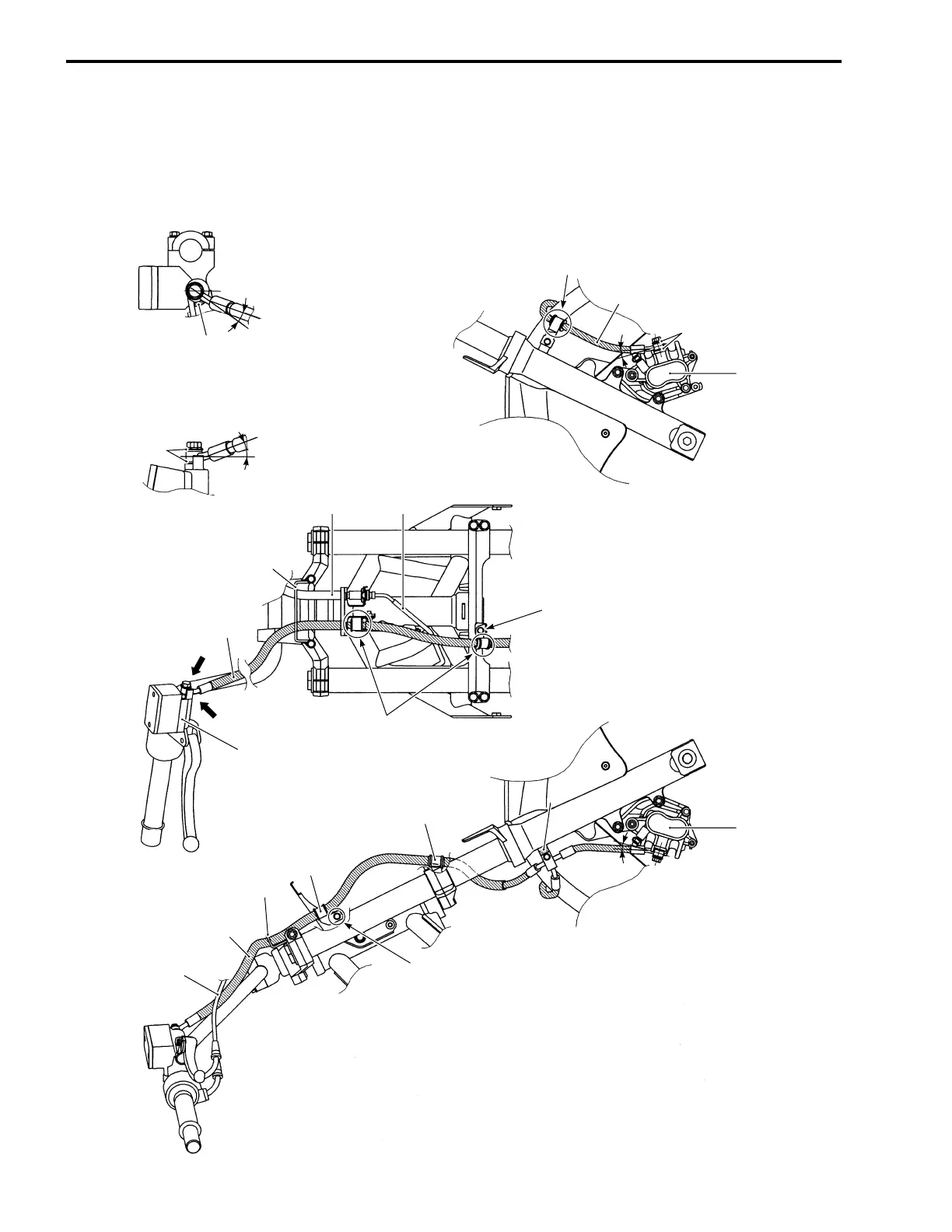

FRONT BRAKE HOSE ROUTING
After touching the clamp to the stopper, tighten the clamp bolt.
After touching the clamp to the stopper, tighten the clamp bolt.
Front brake caliper (L)
Brake hose clamp
Front brake hose
Brake hose guide
B
A
14˚
Fix the brake hose grommet to its hose clamp.
Fix the brake hose grommet to its hose clamp.
Washer
VIEW B
Stopper
After touching the brake hose union to the stopper, tighten the union bolt to the specified torque.
Brake hose
Front brake caliper (R)
Brake hose clamp
14˚
14˚
Washer
21˚
VIEW A
Front brake master cylinder
Rear brake pipe
Throttle cable
Front brake hose
Brake hose guide
StopperStopper
Rear brake hose

Suzuki AN650 2002 Specifications

General

Displacement	638 cc
Compression Ratio	11.2:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-15
Rear Tire	160/60-14
Bore x Stroke	75.5 mm x 71.3 mm
Front Brakes	Disc
Fuel Tank Capacity	15 liters
Seat Height	750 mm
Transmission	CVT
