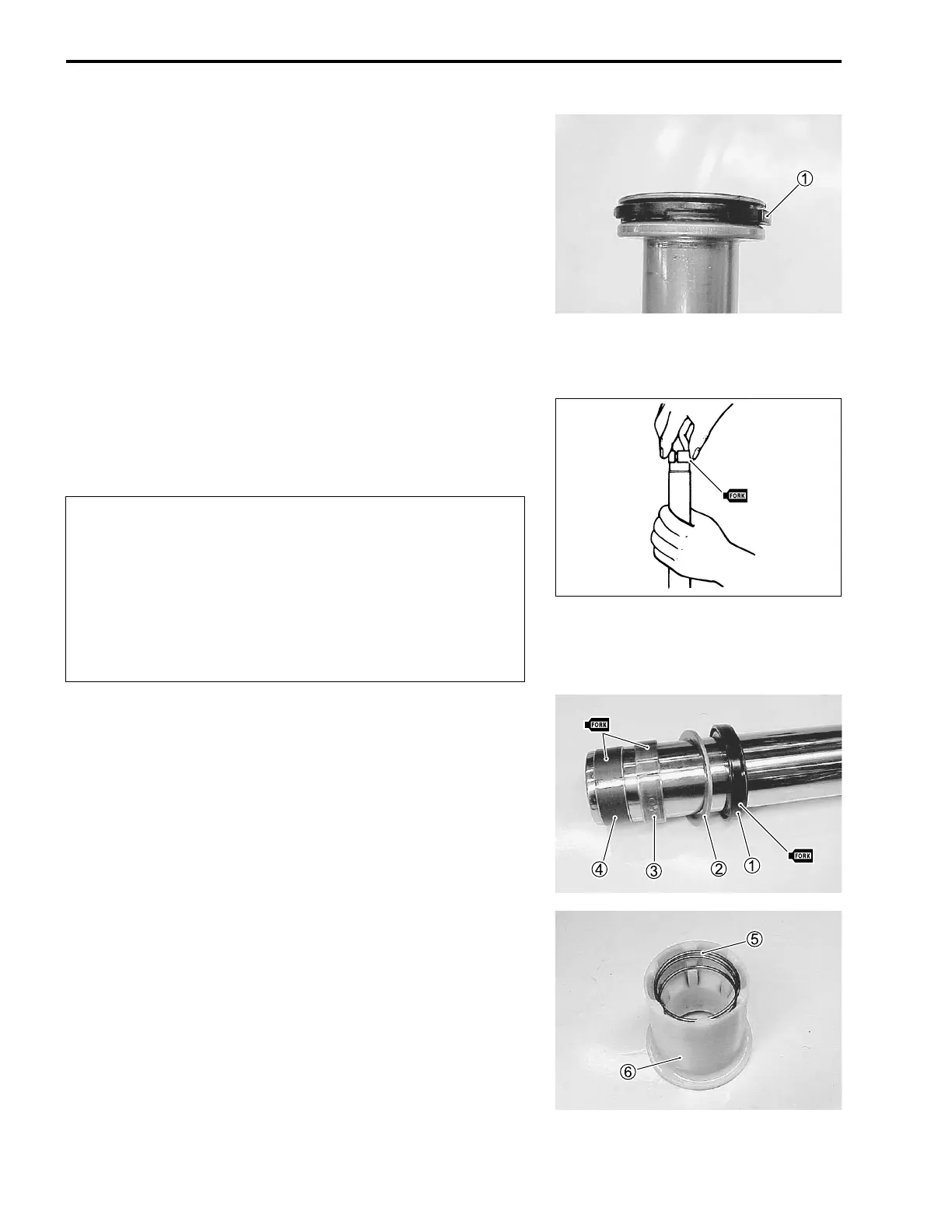

9-36 CHASSIS
CYLINDER
Inspect the cylinder and piston ring
1 for damage. If any defects
are found, replace them with new ones.
REASSEMBLY AND REMOUNTING
Reassemble and remount the front fork in the reverse order of
removal and disassembly. Pay attention to the following points:
METALS AND SEALS
• Hold the inner tube vertically and clean the metal groove and
install the guide metal by hand as shown.
• Apply fork oil to the oil seal lip lightly before installing it.
• Assemble the following parts as shown.
1 Oil seal
2 Oil seal retainer
3 Guide metal
4 Slide metal
NOTE:
Stamped mark on the oil seal must face upward.
• Install the spring
5 into the oil lock piece
6 securely.
* Use special care to prevent damage to the “Teflon”
coated surface of the guide metal when mounting it.
* When installing the oil seal to inner tube, be careful
not to damage the oil seal lip.
* Replace the removed metals and seals with new
ones.
* Apply fork oil to the Anti-triction metals and lip of the
oil seal.
