8-12 COOLING AND LUBRICATION SYSTEM
ENGINE COOLANT TEMPERATURE SENSOR

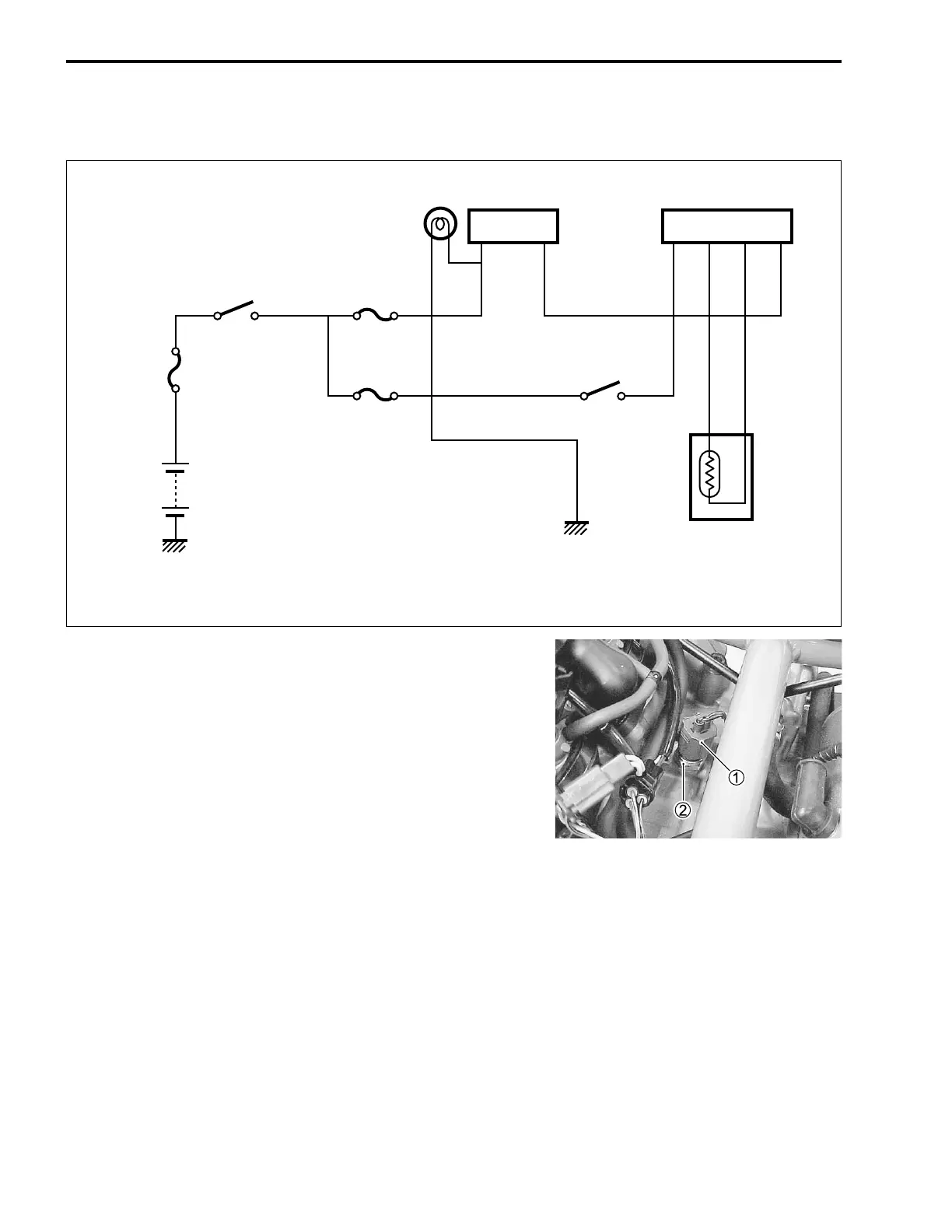

The following circuit diagram shows the electrical wiring for the thermometer. The major components are
temperature sensor in contact with coolant; and temperature indicator (engine coolant temperature meter).
REMOVAL
• Remove the footboard. (9-18)
• Disconnect the engine coolant temperature sensor lead wire
coupler
1.
• Remove the engine coolant temperature sensor
2.
Ignition
switch
Fuse
Fuse
Main
fuse
Battery
Handle
switch
Water temp
sensor
Water temp
warning
ECU
Speedometer
O
O/W
O/G
B/Br
B/Br
B/Bl
P/W
R
O/Y
O/Y
B/W
O
O/W
O/G
B/Br
B/Bl
P/W
R
O/Y
B/W
WIRE COLOR
O
R
B/Br
B/Bl
B/W
O/G
O/Y
O/W
P/W
:
Orange
:
Red
:
Black with Brown tracer
:
Black with Blue tracer
:
Black with White tracer
:
Orange with Green tracer
:
Orange with Yellow tracer
:
Orange with White tracer
:
Pink with White tracer
