Suzuki AN650 2002 User Manual

3-12 ENGINE

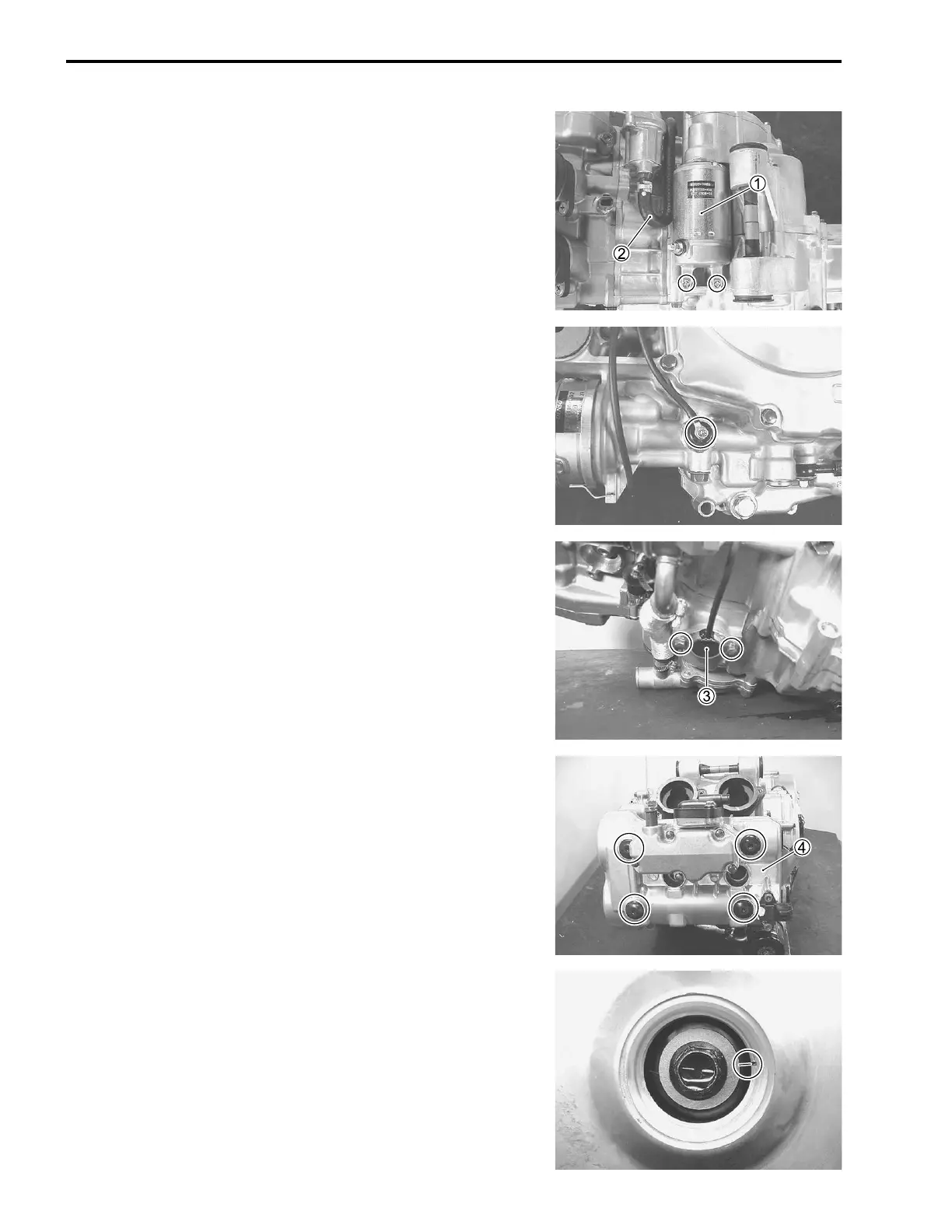

ENGINE DISASSEMBLY
STARTER MOTOR
• Remove the starter motor
1.
• Disconnect the water bypass hose
2.
OIL PRESSURE SWITCH
• Remove the oil pressure switch.
OIL LEVEL SWITCH
• Remove the oil level switch
3.
CYLINDER HEAD COVER
• Remove the cylinder head cover
4.
NOTE:
Do not remove the dowel pin at the back side of the cylinder
head cover since it is embedded.
CAMSHAFT
• Remove the valve timing inspection cap and bring the piston
to the top dead center by turning the crankshaft. (2-8)
NOTE:
Take note of the tappet clearance. (2-9)

Suzuki AN650 2002 Specifications

General

Displacement	638 cc
Compression Ratio	11.2:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-15
Rear Tire	160/60-14
Bore x Stroke	75.5 mm x 71.3 mm
Front Brakes	Disc
Fuel Tank Capacity	15 liters
Seat Height	750 mm
Transmission	CVT
