10-6 ELECTRICAL SYSTEM

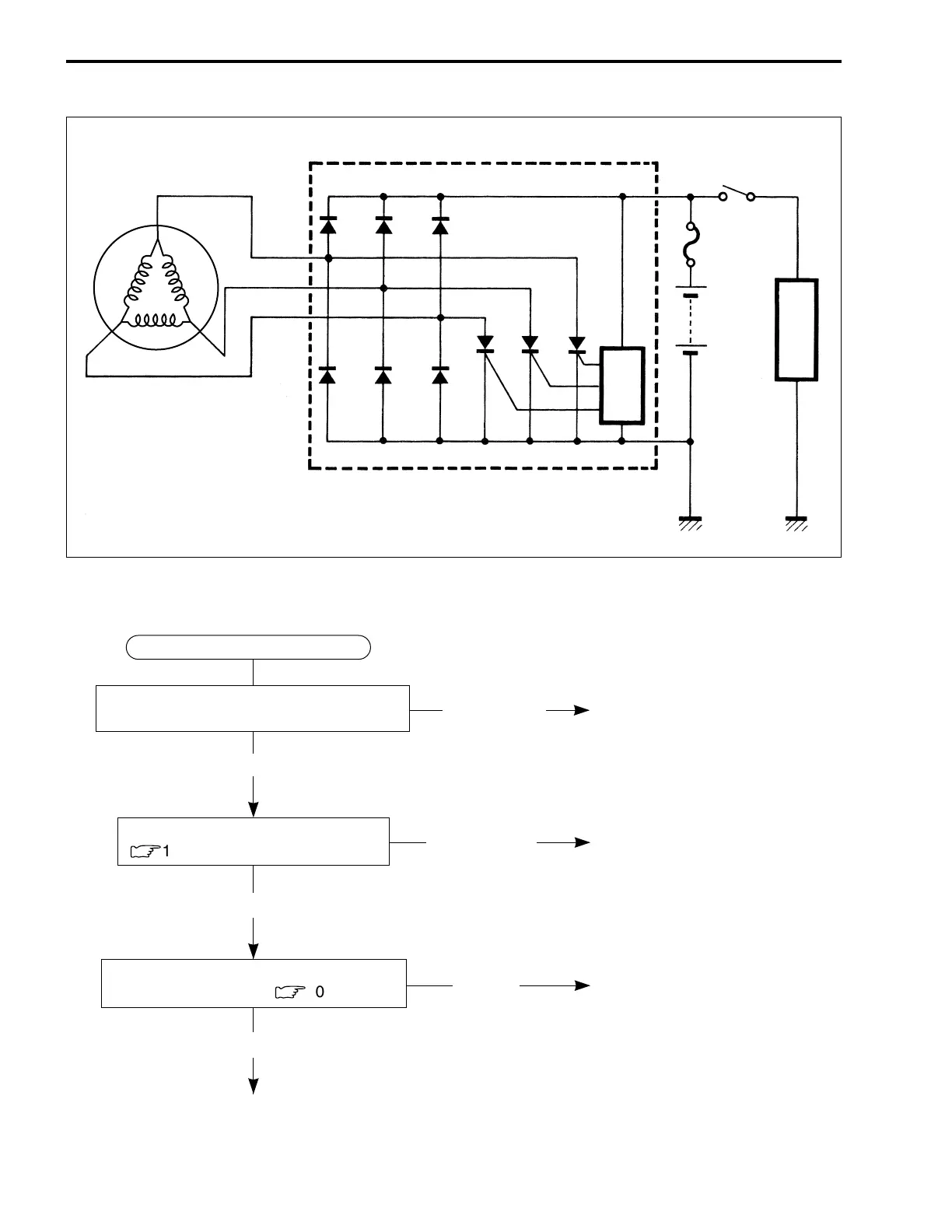

CHARGING SYSTEM
TROUBLESHOOTING
Generator
Regulator/rectifier
Ignition switch
Main fuse
Battery
Load
No accessories
No current leaks
Incorrect
Continued on next page
• Remove accessories
• Short circuit of wire harness
• Faulty electrical equipment
• Faulty battery
• Abnormal driving condition
Battery runs down quickly.
Check accessories which use excessive
amounts of electricity.
Check the battery for current leaks.
( : 10-8)
Measure the charging voltage between
the battery terminals. ( : 10-9)
Correct
Current leaks
Accessories
are installed
