ELECTRICAL SYSTEM 10-23

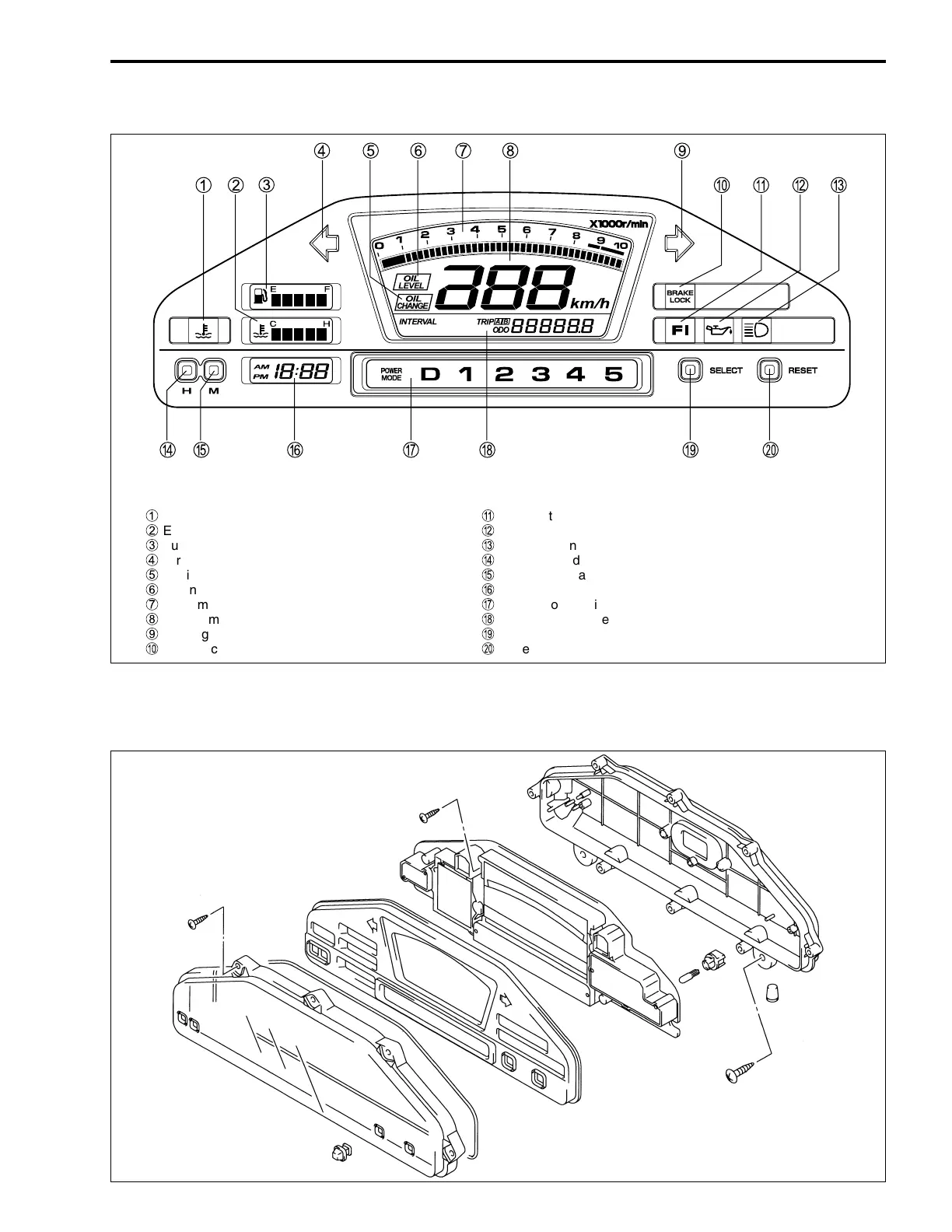

COMBINATION METER
PARTS NAMES
REMOVAL AND DISASSEMBLY
• Remove the combination meter. (9-22)
• Disassembly the combination meter, as shown.
1 Engine coolant temp. indicator light
2 Engine coolant temp. meter
3 Fuel meter
4 Turn signal indicator light (L)
5 Engine oil change indicator
6 Engine oil level indicator
7 Tachometer
8 Speedometer
9 Turn signal indicator light (R)
0 Brake lock indicator light
A FI indicator light
B Engine oil pressure indicator light
C High beam indicator light
D Clock hour adjust button
E Clock minute adjust button
F Clock
G Riding mode indicator light
H Odometer/tripmeter (A, B)
I Select button
J Reset button

Suzuki AN650 2002 Specifications

General

Displacement	638 cc
Compression Ratio	11.2:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-15
Rear Tire	160/60-14
Bore x Stroke	75.5 mm x 71.3 mm
Front Brakes	Disc
Fuel Tank Capacity	15 liters
Seat Height	750 mm
Transmission	CVT
