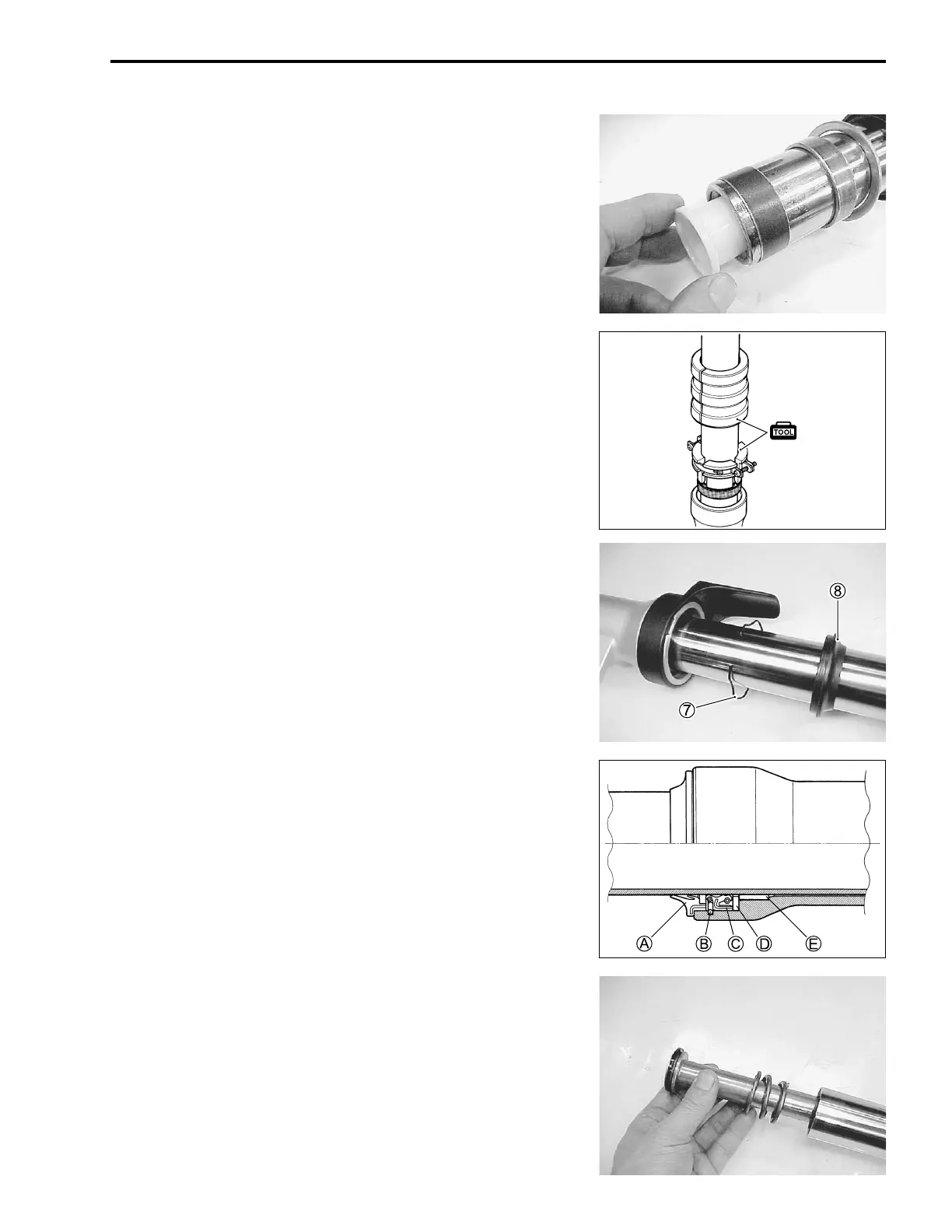

CHASSIS 9-37
• Install the oil lock piece into the inner tube.
• Install the inner tube into the outer tube with care not to drop
the oil lock piece out.
NOTE:
After installing the inner tube into the outer tube, keep the oil
lock piece into the inner tube by compressing the front fork fully.
• Install the guide metal, the retainer and the oil seal into the
outer rube with special tool.
[ 09940-52861: Front fork oil seal installer
• Install the oil seal stopper ring
7 and the dust seal 8.
A Dust seal
B Oil seal stopper ring
C Oil seal
D Oil seal retainer
E Guide metal
CYLINDER BOLT
• Install the rebound spring to the cylinder.
• Install the cylinder into the front fork.

Suzuki AN650 2002 Specifications

General

Displacement	638 cc
Compression Ratio	11.2:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-15
Rear Tire	160/60-14
Bore x Stroke	75.5 mm x 71.3 mm
Front Brakes	Disc
Fuel Tank Capacity	15 liters
Seat Height	750 mm
Transmission	CVT
