FI SYSTEM/ CVT SYSTEM 6-7

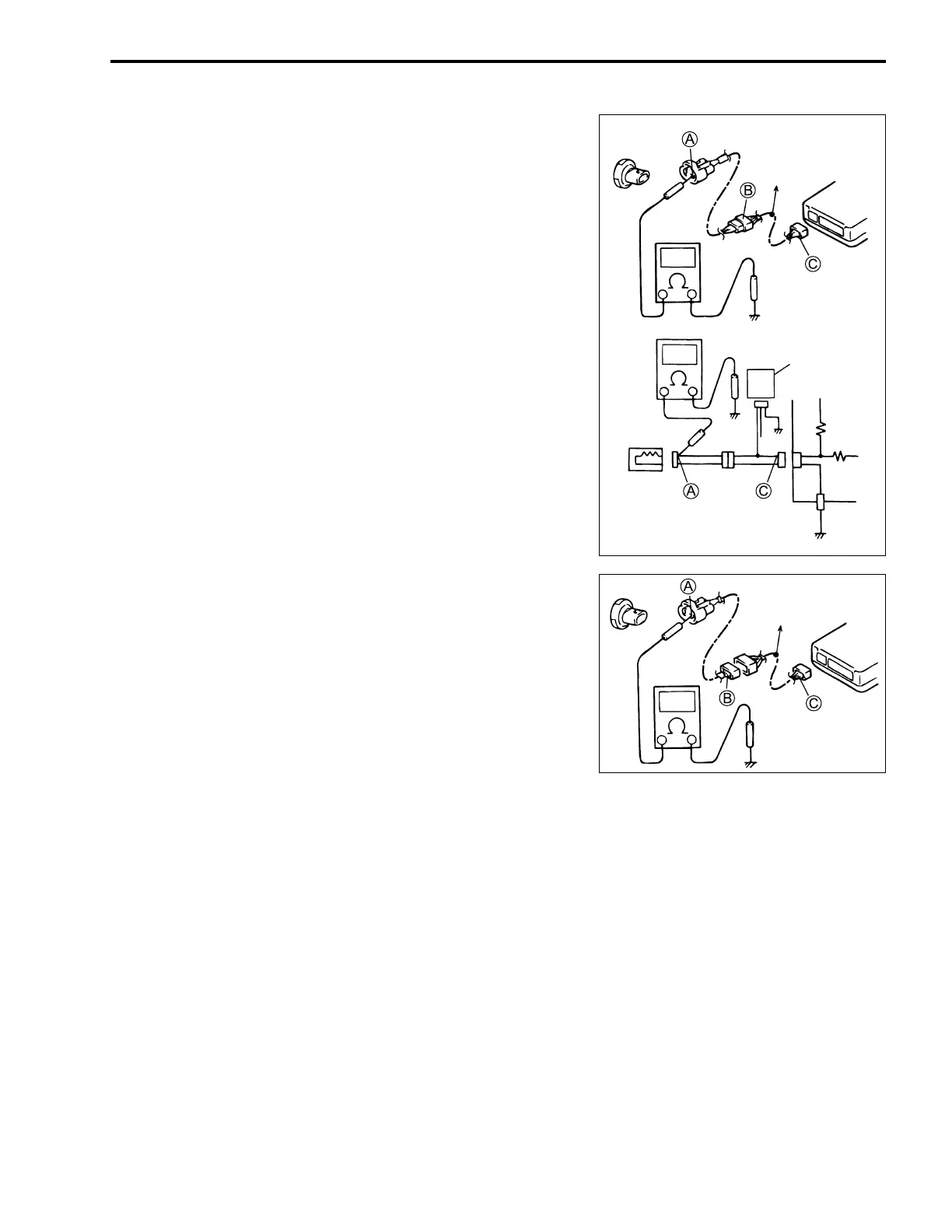

SHORT CIRCUIT CHECK (WIRE HARNESS TO GROUND)
• Disconnect the negative cable from the battery.
• Disconnect the connectors/couplers at both ends of the circuit
to be checked.
NOTE:
If the circuit to be checked branches to other parts as shown,
disconnect all connectors/couplers of those parts. Otherwise,
diagnosis will be misled.
• Measure resistance between terminal at one end of circuit (
A
terminal in figure) and body ground. If continuity is indicated,
there is a short circuit to ground between terminals
A and C.
• Disconnect the connector/coupler included in circuit (coupler
B) and measure resistance between terminal A and body
ground.
If continuity is indicated, the circuit is shorted to the ground
between terminals
A and B.
To other
parts
Other parts
5V
To other
parts
ECM

Suzuki AN650 2002 Specifications

General

Displacement	638 cc
Compression Ratio	11.2:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-15
Rear Tire	160/60-14
Bore x Stroke	75.5 mm x 71.3 mm
Front Brakes	Disc
Fuel Tank Capacity	15 liters
Seat Height	750 mm
Transmission	CVT
