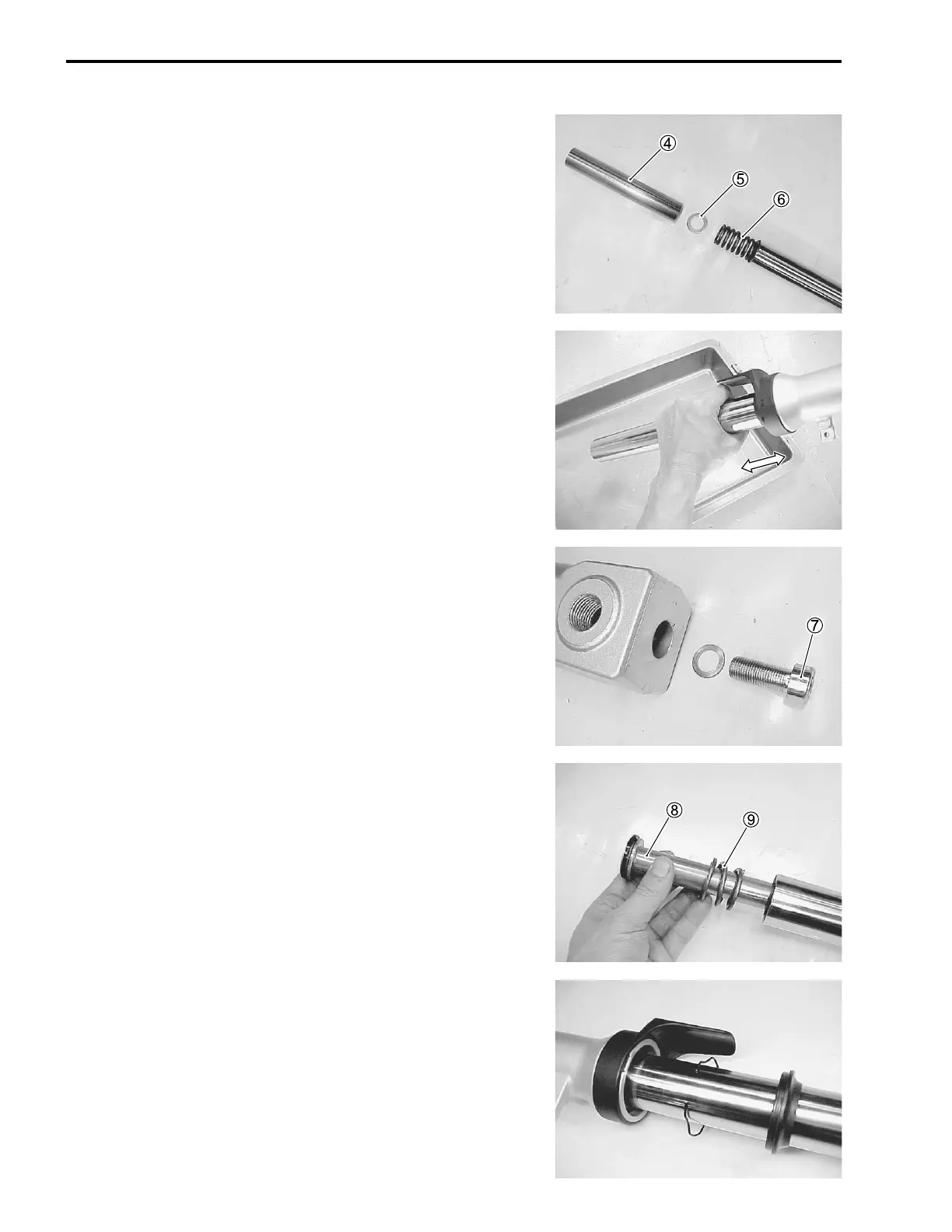

9-34 CHASSIS
• Remove the spacer
4, washer 5 and spring 6.
• Invert the fork and drain the fork oil out of the fork by stroking.
• Hold the fork inverted for a few minutes to drain oil.
• Remove the cylinder bolt
7.
NOTE:
If the cylinder turns together with the cylinder bolt, temporarily
install the fork spring, spacer, washer and cap bolt to prevent the
cylinder from turning.
• Remove the cylinder
8 and rebound spring 9.
• Remove the dust seal.
• Remove the oil seal stopper ring.
