9-42 CHASSIS

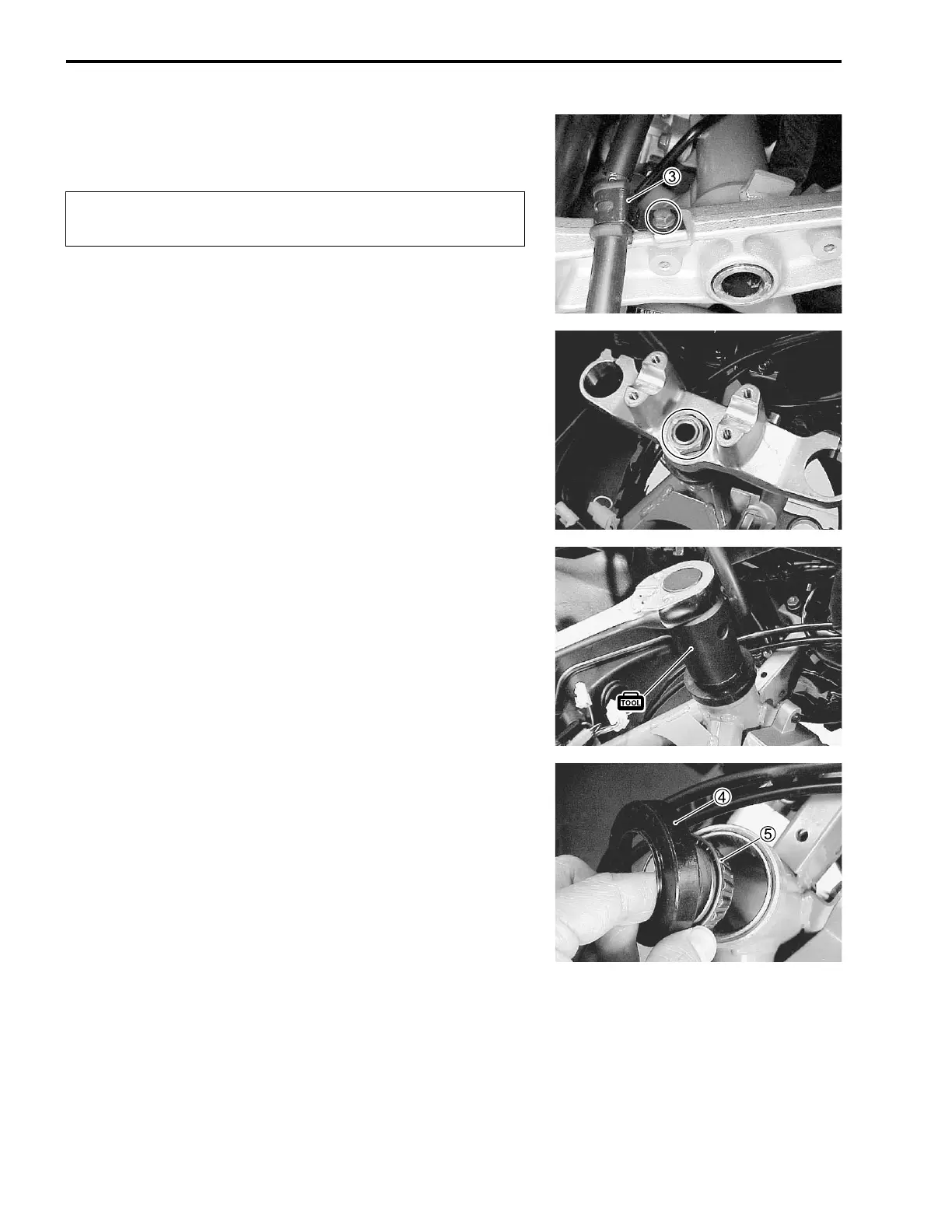

• Remove the brake hose clamp
3.
• Remove the front brake assembly.

• Remove the steering stem upper bracket.
• Remove the steering stem nut with the special tool.
[ 09940-14911: Steering socket wrench
• Remove the steering stem lower bracket.
NOTE:
When loosing the stem nut, hold the steering stem lower bracket
to prevent it from falling.
• Remove the dust cover
4 and bearing 5.
Take care not to make air come in the front brake sys-
tem.

Suzuki AN650 2002 Specifications

General

Displacement	638 cc
Compression Ratio	11.2:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-15
Rear Tire	160/60-14
Bore x Stroke	75.5 mm x 71.3 mm
Front Brakes	Disc
Fuel Tank Capacity	15 liters
Seat Height	750 mm
Transmission	CVT
