Suzuki AN650 2002 User Manual

CHASSIS 9-45

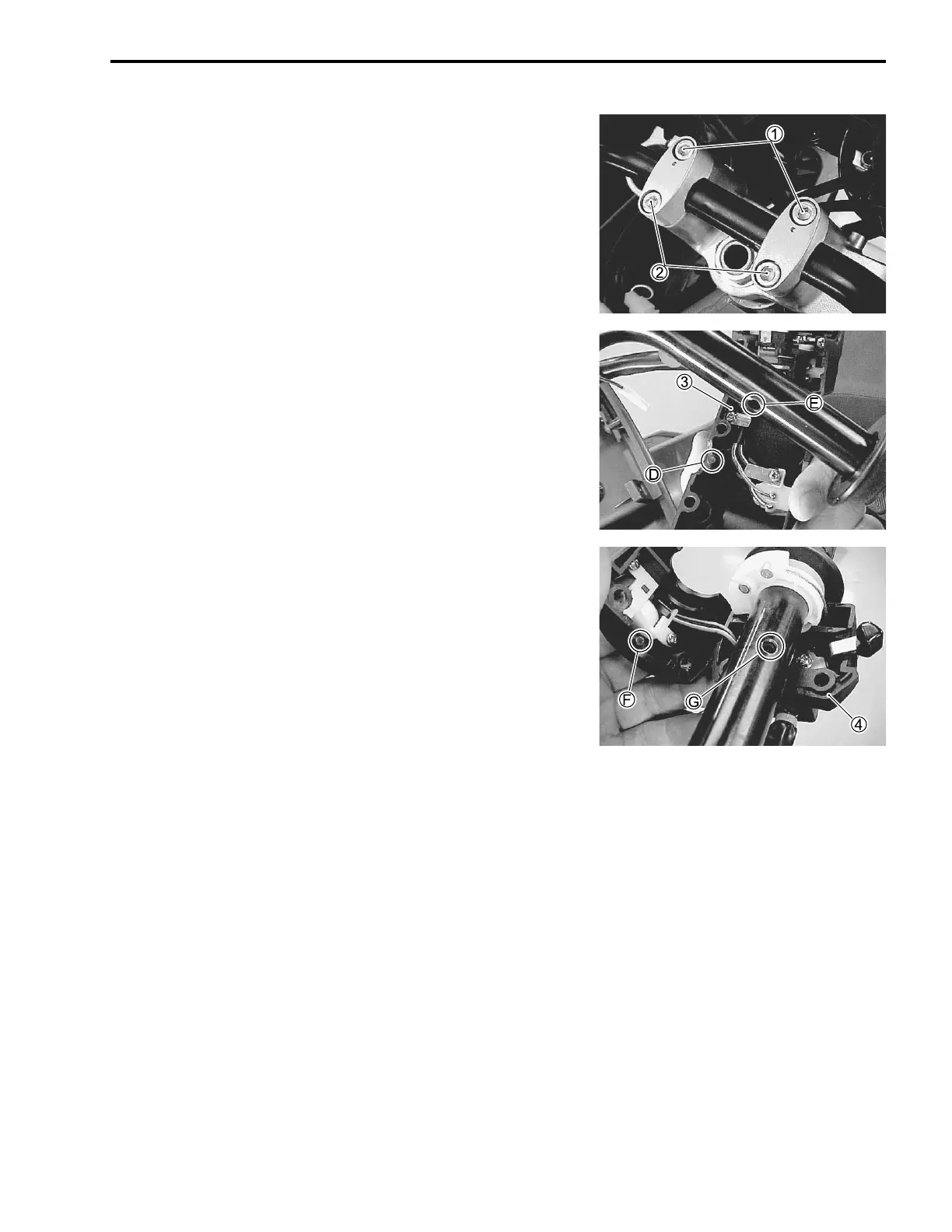

• Tighten the handlebar clamp bolt to the specified torque.
! Handlebar clamp bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
NOTE:
When tightening the handlebar clamp bolts, first tighten the bolts
1 and then tighten the bolts 2.
• Install the left switch box
3 to the handlebars by engaging the
stopper
D with the hole E on the handlebars.
• Install the rear brake master cylinder. (9-84)
• Install the right switch box
4 to the handlebars by engaging
the stopper
F with the hole G on the handlebars.
• Install the front brake master cylinder. (9-72)
• Install the handlebar covers and inspect the handlebar cover
clearance. (9-24)

Suzuki AN650 2002 Specifications

General

Displacement	638 cc
Compression Ratio	11.2:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-15
Rear Tire	160/60-14
Bore x Stroke	75.5 mm x 71.3 mm
Front Brakes	Disc
Fuel Tank Capacity	15 liters
Seat Height	750 mm
Transmission	CVT
