9-56 CHASSIS
REAR AXLE

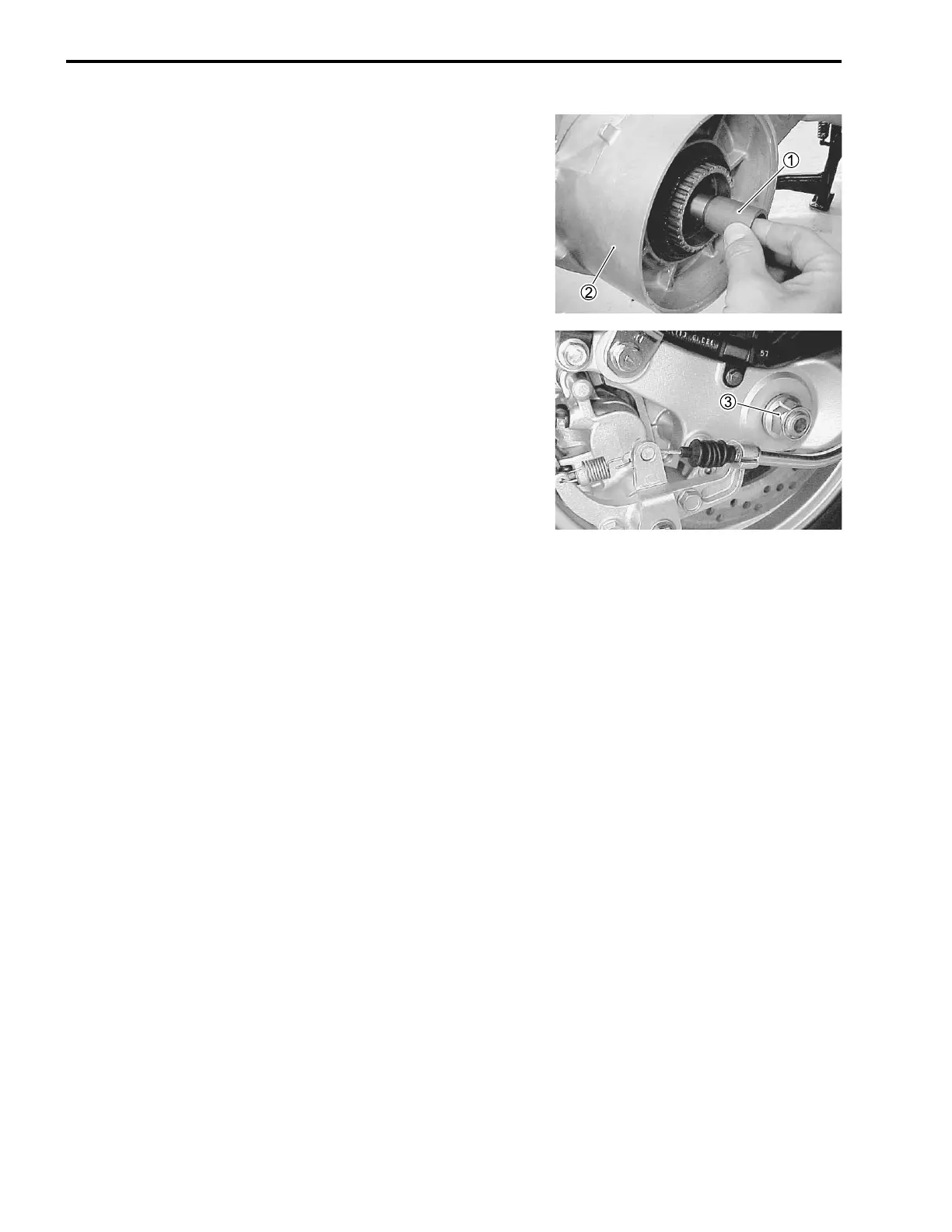

• Install the left spacer
1 into the final gear case 2.
• Remount the rear wheel, coller, spacer and rear axle.
• Install the washer and rear axle nut.
• Tighten the rear axle nut
3 to the specified torque.
! Rear axle nut: 100 N·m (10.0 kgf-m, 72.5 lb-ft)
• Install the new cotter pin. (For E-03, 28, 33)
• Install the final gear case cover.
• Install the caliper. (9-81)
• Install the brake-lock cable and brake-lock arm. (9-82)
• Adjust the brake-lock. (9-84)
NOTE:
If the caliper pistons come out by operating the rear brake lever
while removing the rear caliper, it is impossible to push back the
pistons into the caliper because of the brake lock system. There-
fore remove the pads and turn the piston clockwise so that the
piston will come in. Refer to REAR BRAKE PAD REPLACE-
MENT page 9-74.
