CHASSIS 9-75

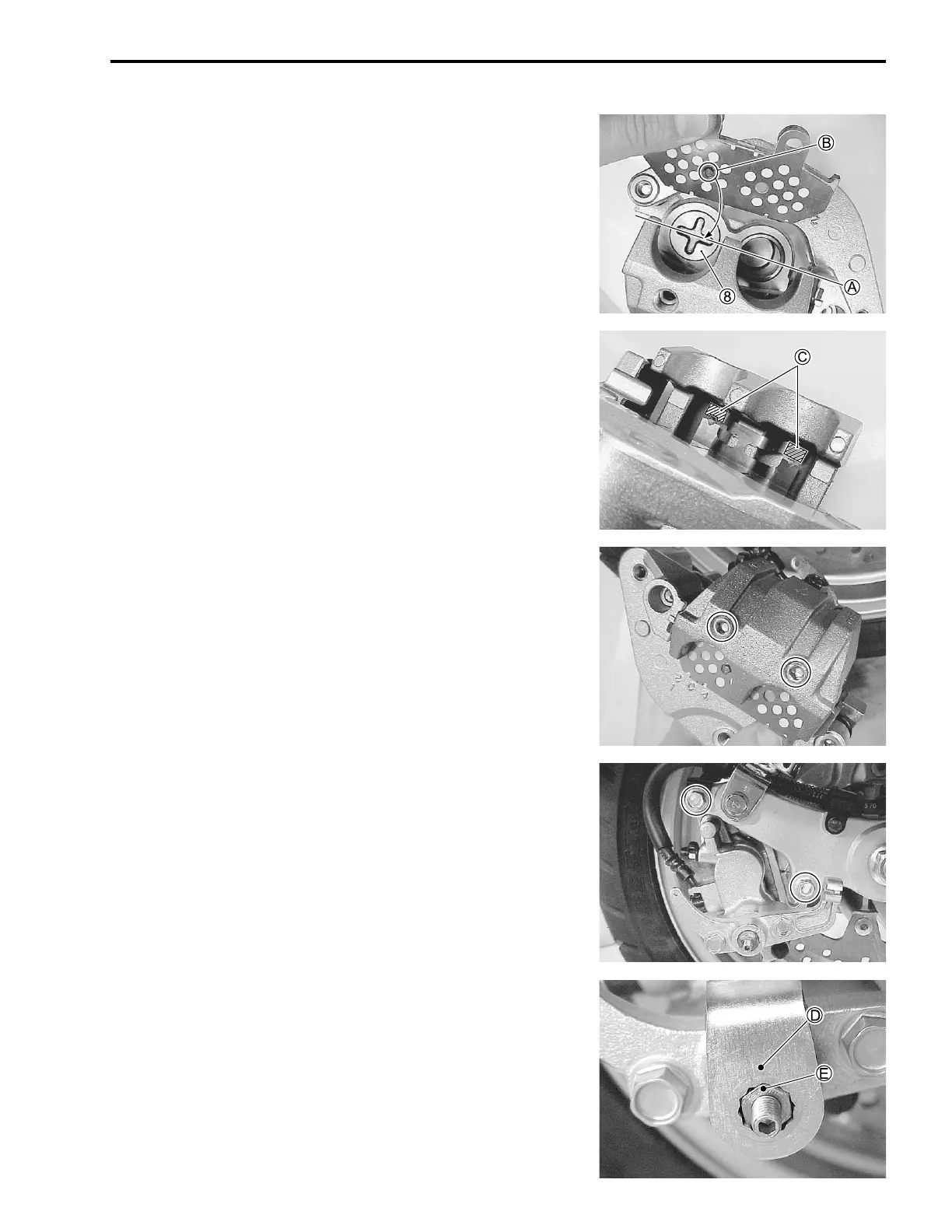

• Turn the piston
8 clockwise until it stops.
• Align the groove with line
A by turning the piston out.
• Install the pad with the projection
B fitted in the groove on the
piston.
• Install the pad to the caliper with the pad seated at the
hatched area
C of pad spring.
• Tighten the pad mounting pins to the specified torque.
! Pad mounting pin: 18 N·m (1.8 kgf-m, 13.0 lb-ft)
• Install the caliper.
• Tighten the caliper mounting bolt to the specified torque.
! Caliper mounting bolt: 26 N·m (2.6 kgf-m, 19.0 lb-ft)
NOTE:
After replacing the brake pads, pump the brake lever several
times to check for proper brake operation and then check the
brake fluid level.
• Install the brake-lock cable. (9-86)
• Install the brake-lock arm with the punch mark
D aligned with
punch mark
E on the brake-lock shaft.
NOTE:
Make sure that the spring end faces to right side of the vehicle.
• Adjust the brake lock. (9-84)

Suzuki AN650 2002 Specifications

General

Displacement	638 cc
Compression Ratio	11.2:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-15
Rear Tire	160/60-14
Bore x Stroke	75.5 mm x 71.3 mm
Front Brakes	Disc
Fuel Tank Capacity	15 liters
Seat Height	750 mm
Transmission	CVT
