CHASSIS 9-77

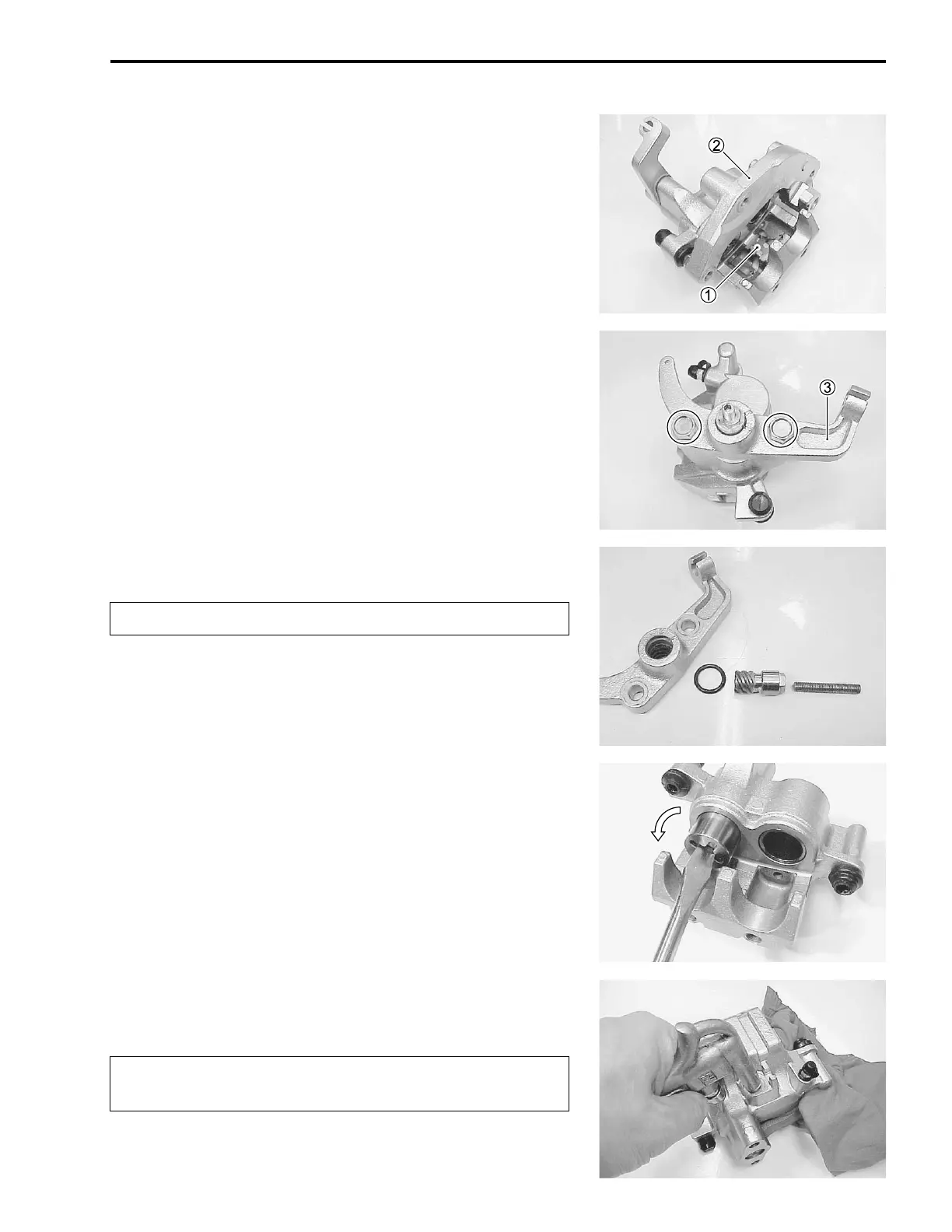

• Remove the pad spring
1 and caliper holder 2.
• Remove the parking brake housing
3.
• Disassemble the parking brake.

• Turn the piston counterclockwise fully.
• Place a rag over the piston to prevent it from popping out and
then force out the piston using compressed air.

Replace the removed O-ring with a new one.
Do not use high pressure air to prevent piston dam-
age.

Suzuki AN650 2002 Specifications

General

Displacement	638 cc
Compression Ratio	11.2:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-15
Rear Tire	160/60-14
Bore x Stroke	75.5 mm x 71.3 mm
Front Brakes	Disc
Fuel Tank Capacity	15 liters
Seat Height	750 mm
Transmission	CVT
