9-88 CHASSIS

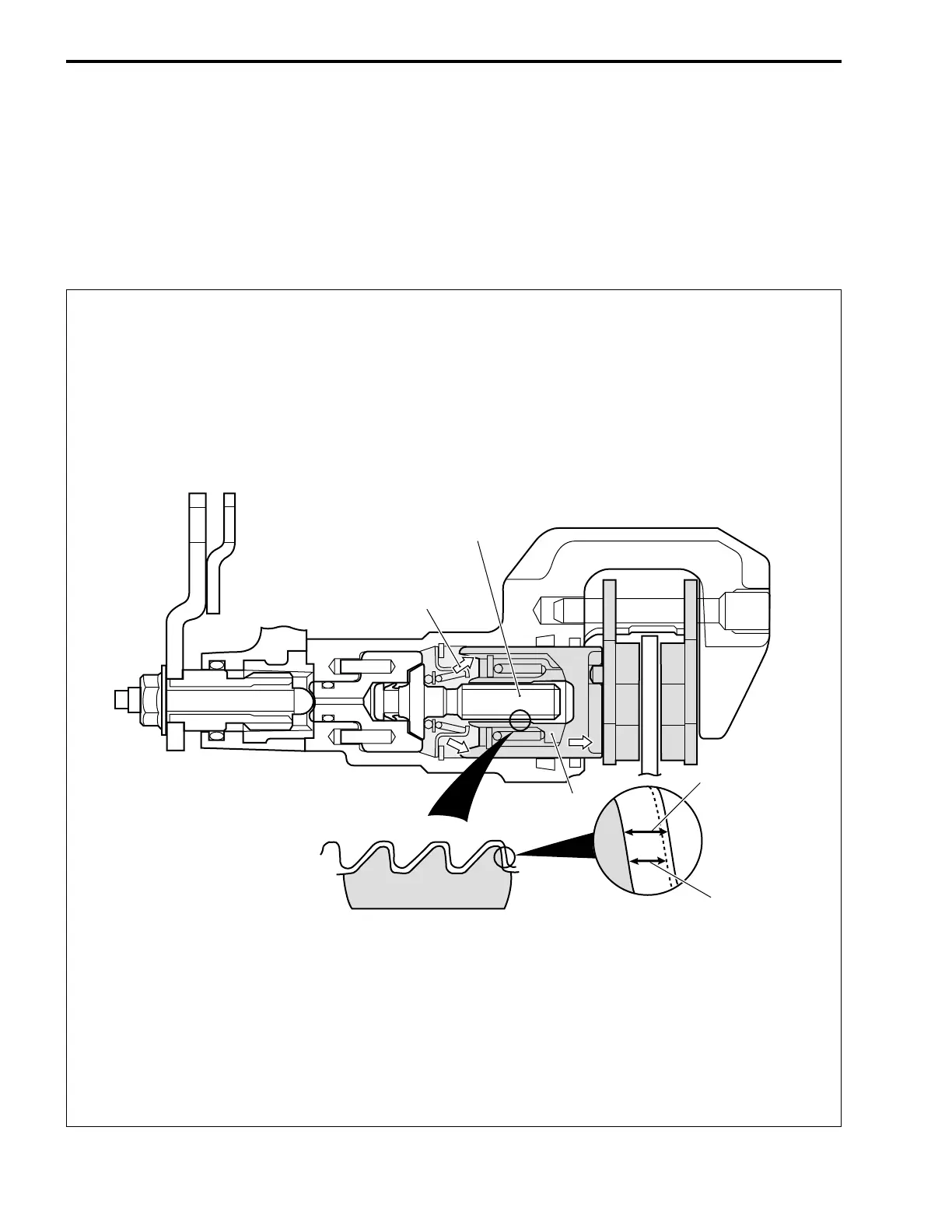

AUTOMATIC BRAKE-LOCK ADJUSTER SYSTEM
The automatic brake-lock adjuster system is equipped on the brake-lock. If the brake pad worn, the adjust-
bolt/nut adjust the position of caliper piston so as to keep the certain clearance between brake pad and
brake disk.
OPERATION (Normal condition➔
➔➔
➔Braking)
The hydraulic pressure by brake lever operation acts on the adjust-nut/caliper piston. The adjust-bolt
threads and adjust-nut threads have a clearance. The piston stroke when braking is shorter than clearance,
thus, the braking operation will finish without automatic brake-lock adjuster system operation.
Clearance
Caliper piston
stroke
Adjust-bolt
Hydraulic pressure
Adjust-nut

Suzuki AN650 2002 Specifications

General

Displacement	638 cc
Compression Ratio	11.2:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-15
Rear Tire	160/60-14
Bore x Stroke	75.5 mm x 71.3 mm
Front Brakes	Disc
Fuel Tank Capacity	15 liters
Seat Height	750 mm
Transmission	CVT
