DISASSEMBLY OF CRANKCASE

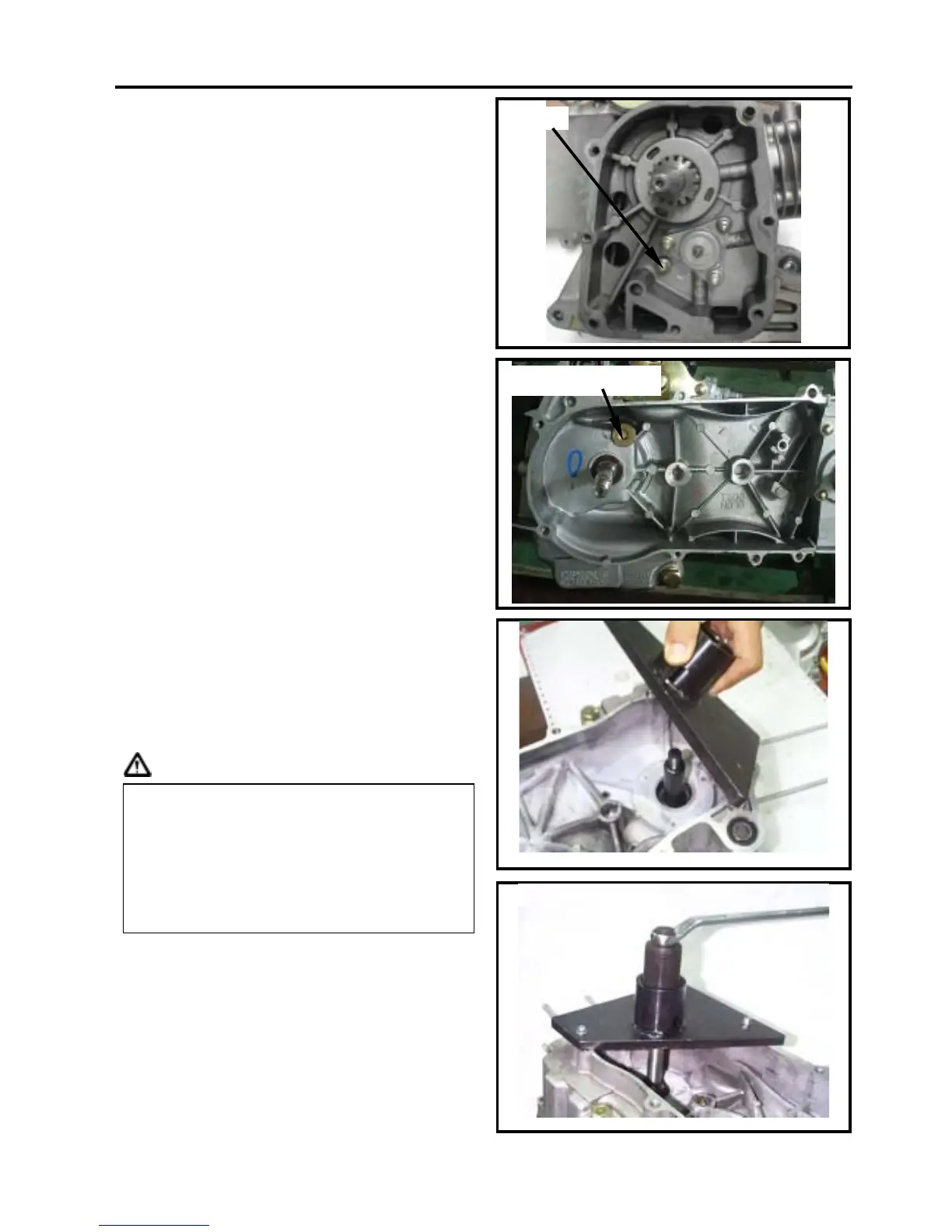

Remove the 1 bolt from the right crankcase.
Remove the cam chain tensioner (hex socket
bolt) from the left side of crankcase.
Place the left side of crankcase upward,
and then install the crankcase remover/set
onto the crankcase.
Drive the screw of the crankcase
remover/set into the crankcase, and then
separate the left and the right crankcases.
Remove the cam chain.
Caution
Special Service Tools:
Crankcase remover/set
Never pry out the connection surfaces of
crankcases as separating. Otherwise,
the connection surfaces could be
damaged and cause oil leaking.
It have to separate the cam chain and the
drive gear before pressing out the both
left and right crankcases.
1 bolt
1 hex socket bolt
