12. BODY COVER SYM
12-10

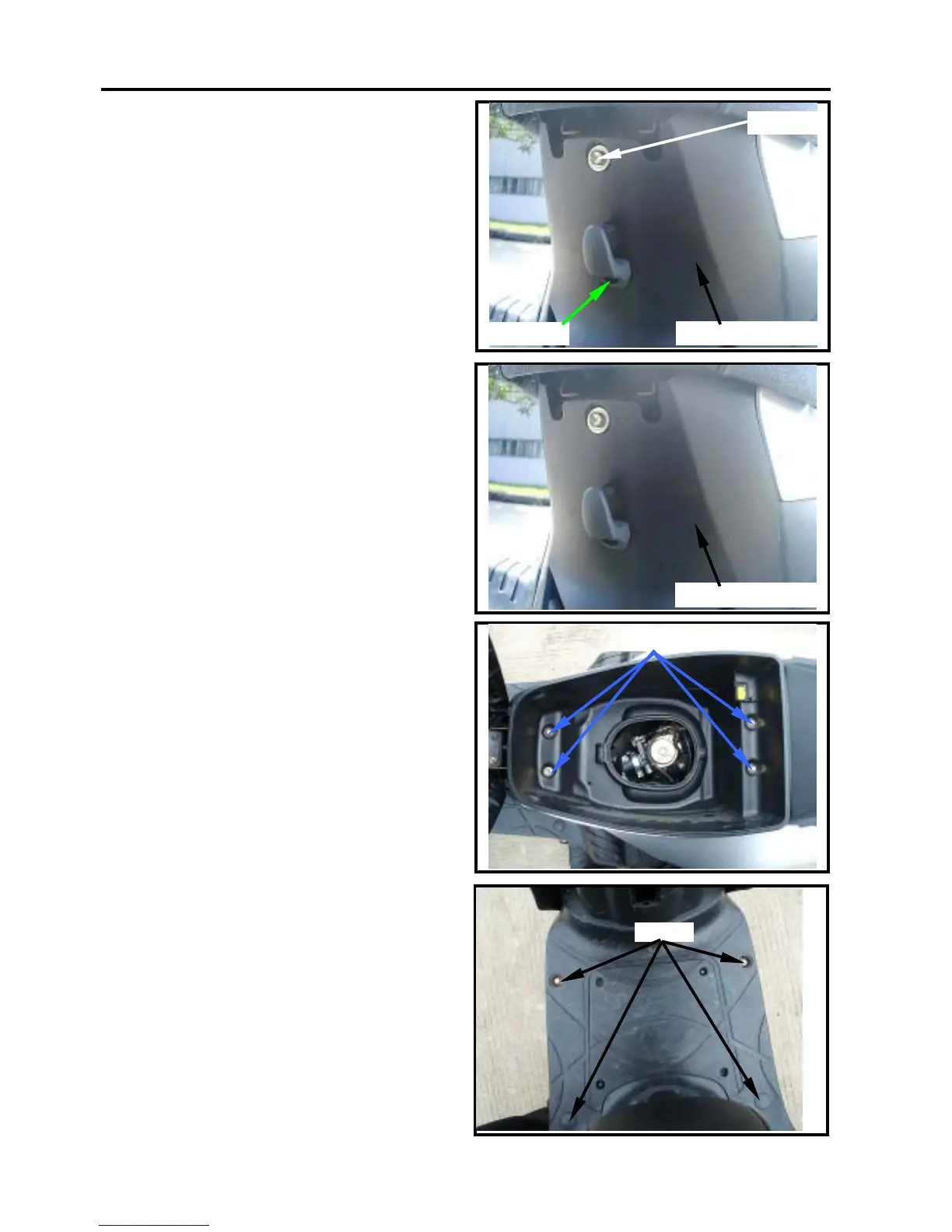

FRONT CENTER COVER
Removal
Remove the luggage box.
Remove the front center cover mounting
screw.
Remove the front center cover mounting
bolt.
Remove the front center cover.
Installation
Install the cover according to the reverse
procedure of removal.
LUGGAGE BOX
Removal
Open the seat.
Remove the 4 bolts from the luggage box.
Remove the luggage box and the double
seat.
Installation
Install the luggage box according to the
reverse procedure of removal.
FLOOR PANEL
Removal
Remove the 4 bolts from the luggage box.
Remove the luggage box and the double
seat.
Remove the front center cover.
Remove the 2 screws between the inner
box B and the floor panel.
Remove the 4 floor panel mounting bolts.
Installation
Install the floor panel according to the
reverse procedure of removal.
4 bolts
screw×1
Front center cover
bolt×1
Front center cover
4 bolts
To Next Page
