3. LUBRICATION SYSTEM SYM
3-4
OIL PUMP

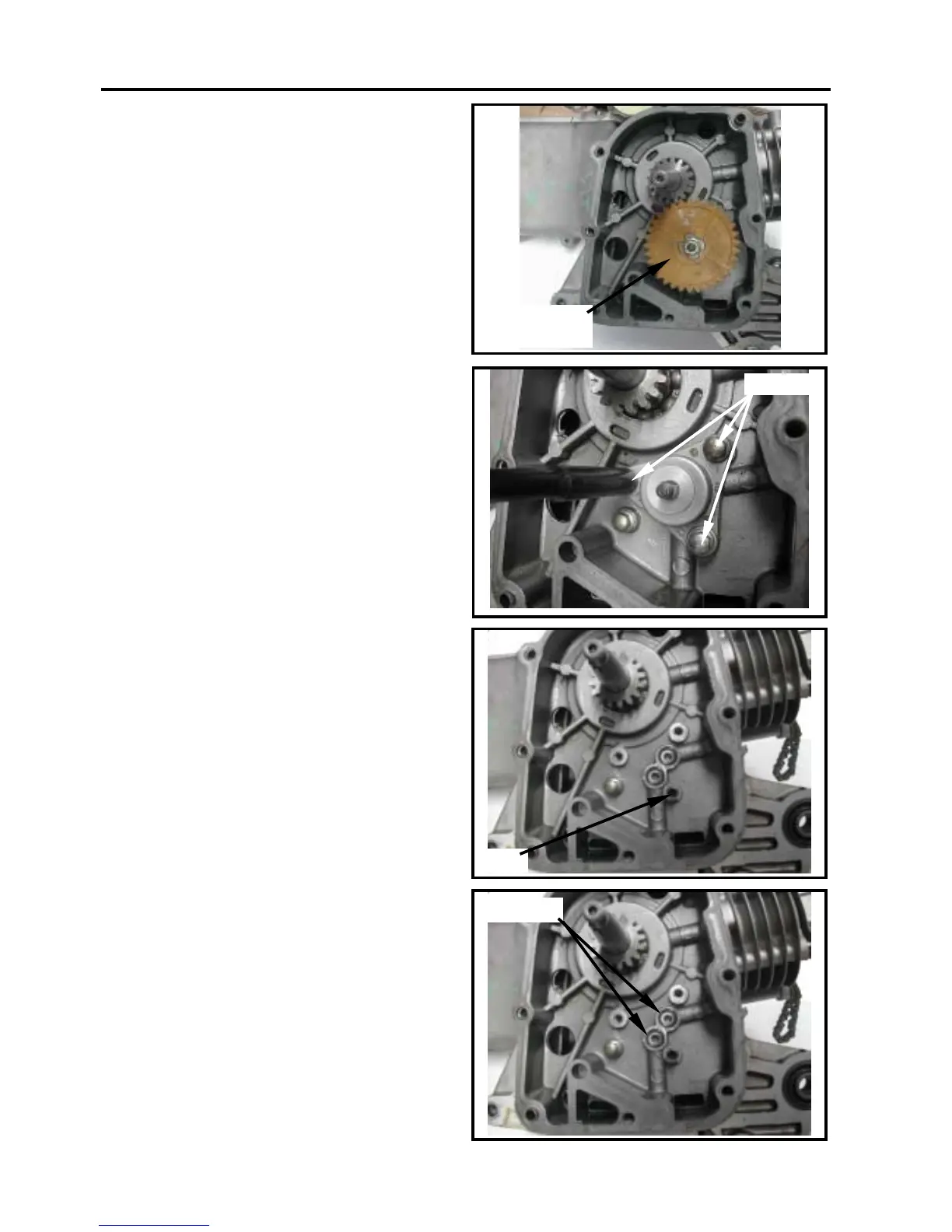

Oil Pump Removal
Remove the alternator (refer to chapter10).
Remove the engine right crankcase cover.
Make sure that the pump axle can be rotated
freely.
Remove the oil pump driving gear nut.
Remove oil pump body bolts (3 bolts).
Remove the oil pump pin.
Remove the oil pump.
Remove the 2 O-rings.
pump driving
gear nut
3bolts
pin
2 O-rings
