AIR CLEANER

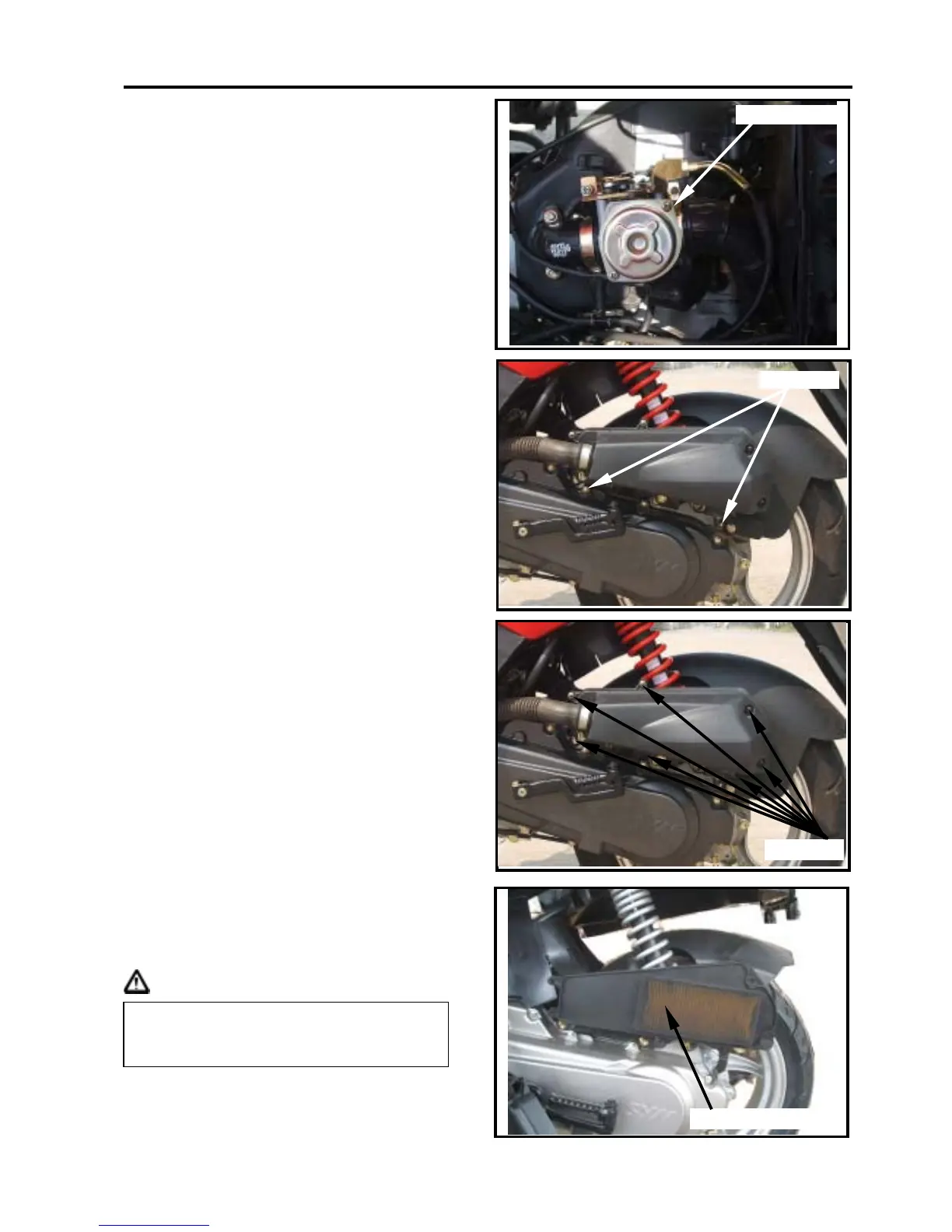

Removal
Remove the seat .
Remove the luggage box assembly (4 bolts).
Loosen the clamp strip of air cleaner.
Remove evaporative return hose.
Remove the air cleaner body bolts (2 bolts).
Remove the air cleaner.
Installation
Install the air cleaner in the reverse order of
removal.
Air Cleaner Element Cleaning
Remove the air cleaner cover (7 screws).
Remove the air cleaner element (2 screws).
With compressed air to clean dirty around
the element. Replace it if it is too dirty to
clean.
Cautions
The air cleaner element is made of paper
so do not soap it into water or wash it
with water.
air filter strap
bol
