13. BRAKE SYM
13-10
INSTALLATION
Place the master cylinder onto handlebar,
and install the split ring and bolts. The
“UP” mark on the split ring should face
upward.
Align the split ring on the master cylinder
seat with the alignment point on the
handlebar.
Tighten the upper bolt of the seat to
specified torque value, and then tighten
lower bolt to the same specified torque
value.
Install the brake lever, and connect leads to
brake lamp switch.
Connect brake hoses with 2 new washes.
Tighten the brake hose bolt to the specified
torque value.
Torque value: 3.5 kgf-m
Make sure the hose is installed correctly.
CAUTION
CAUTION
Add specified brake fluid and bleed the
system and conduct the air-bleeding job for
the system.
Improper routing may damage leads, hoses
or pipes.
Kink of brake leads, hose or pipe may
reduce brake performance.

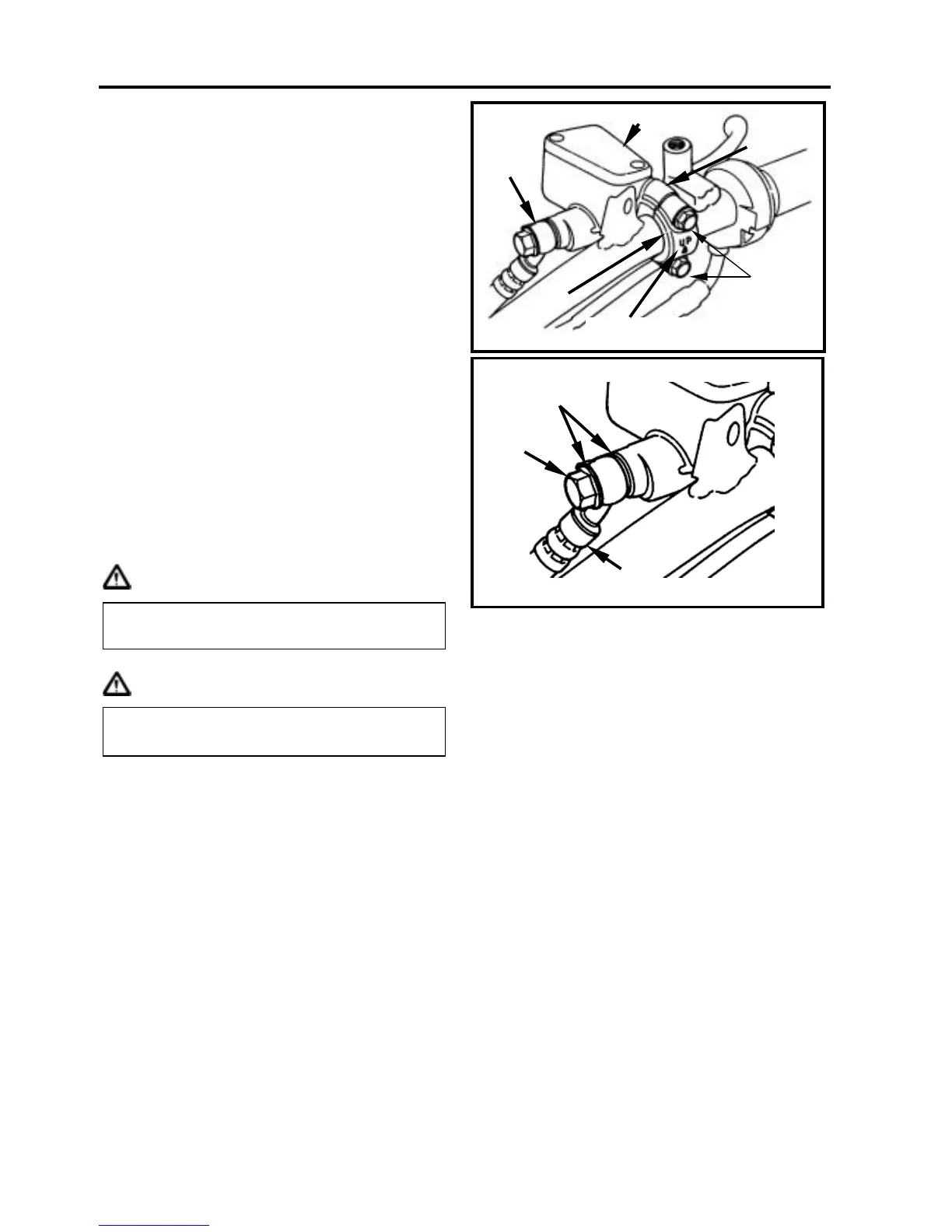

sealing washer
hose bolt
brake hose
bolts x 2
brake
hose
master cylinder
split ring
“UP” mark
mounting
seat
