IGNITION SYSTEM

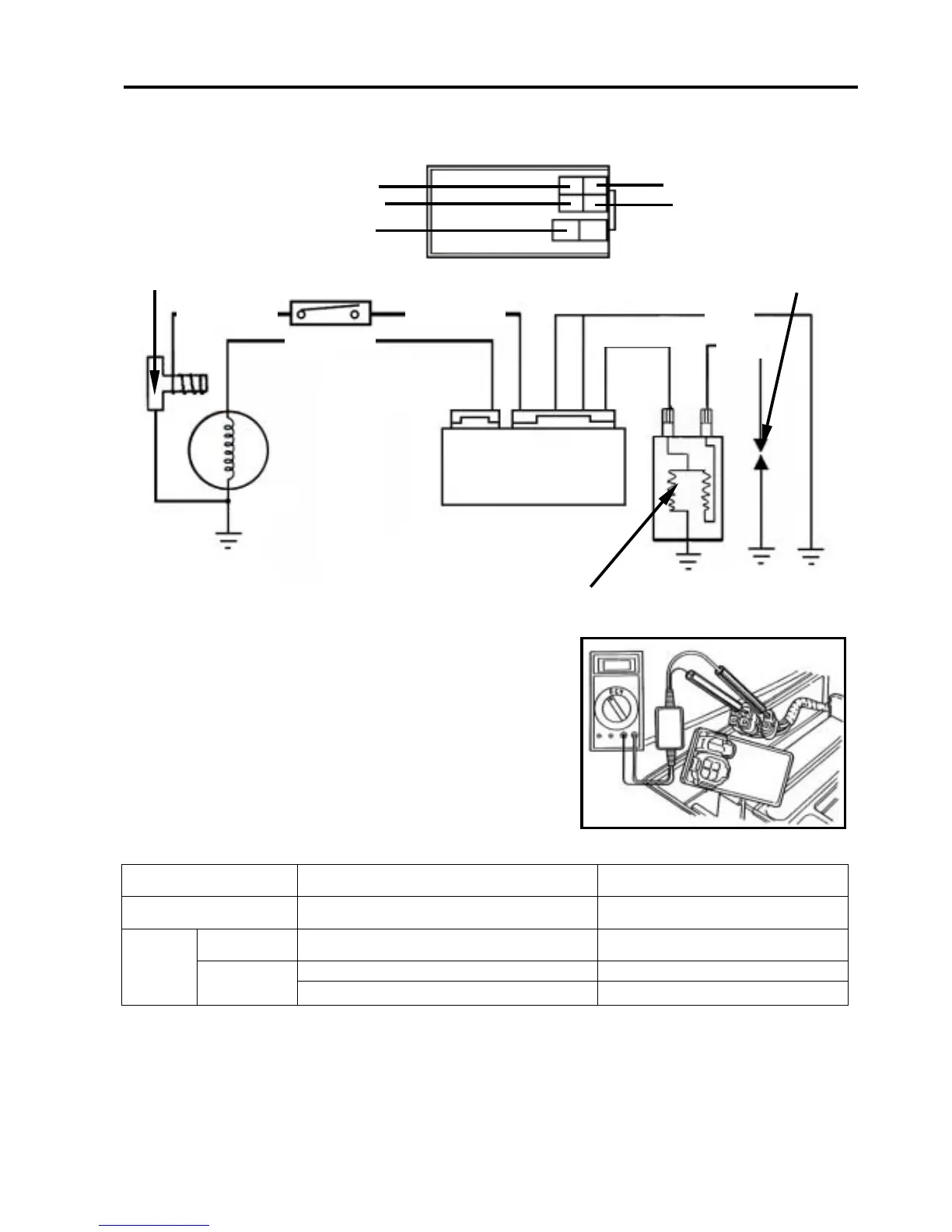

Ignition System Circuit
CDI UNIT
Removal
Remove the right body cover, then the C.D.I.
unit can be removed from the frame.
Check
Disconnect the connector from the CDI unit.
Make the following inspection at each terminal of the harness side connector.
ITEM Measure at: Standard (at 20C)
Pulse Generator Blue/Yellow-green 50 ~200Ω
Primary Black/yellow-green 0.21Ω±10%
Green-hi
