12. BODY COVER SYM
12-8
BODY COVER/REAR CENTER
COVER/REAR FENDER

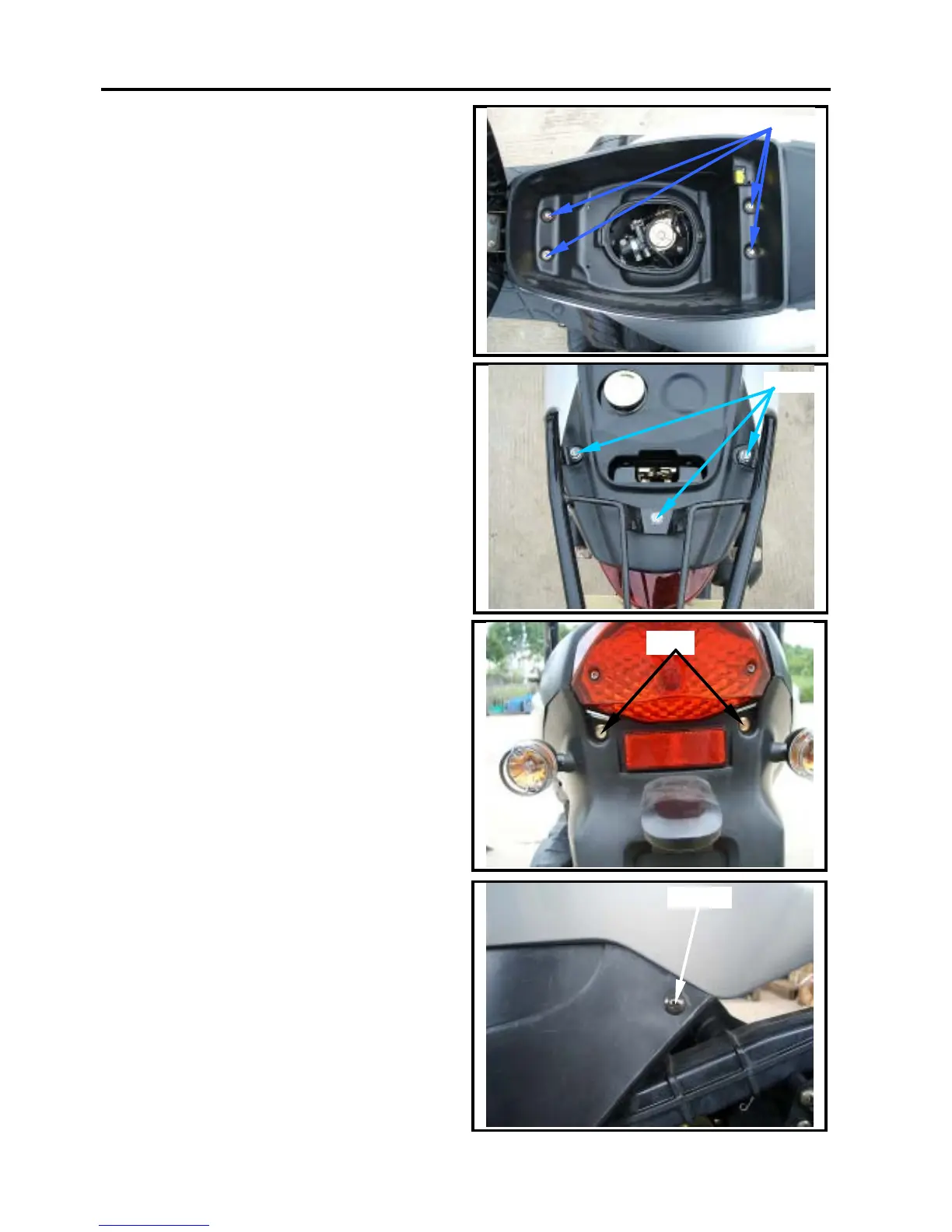

Removal
Open the seat.
Remove the luggage box. (4 bolts)
Remove the rear carrier. (3 bolts)
Remove the 2 mounting bolts of the rear
fender.
Remove the 2 mounting screws between the
body cover and the floor panel.
Remove the body cover、rear center cover
and rear fender.
4 bolts
3 bolts
2 bolts
screw
To Next Page
