4. FUEL SYSTEM SYM
4-10

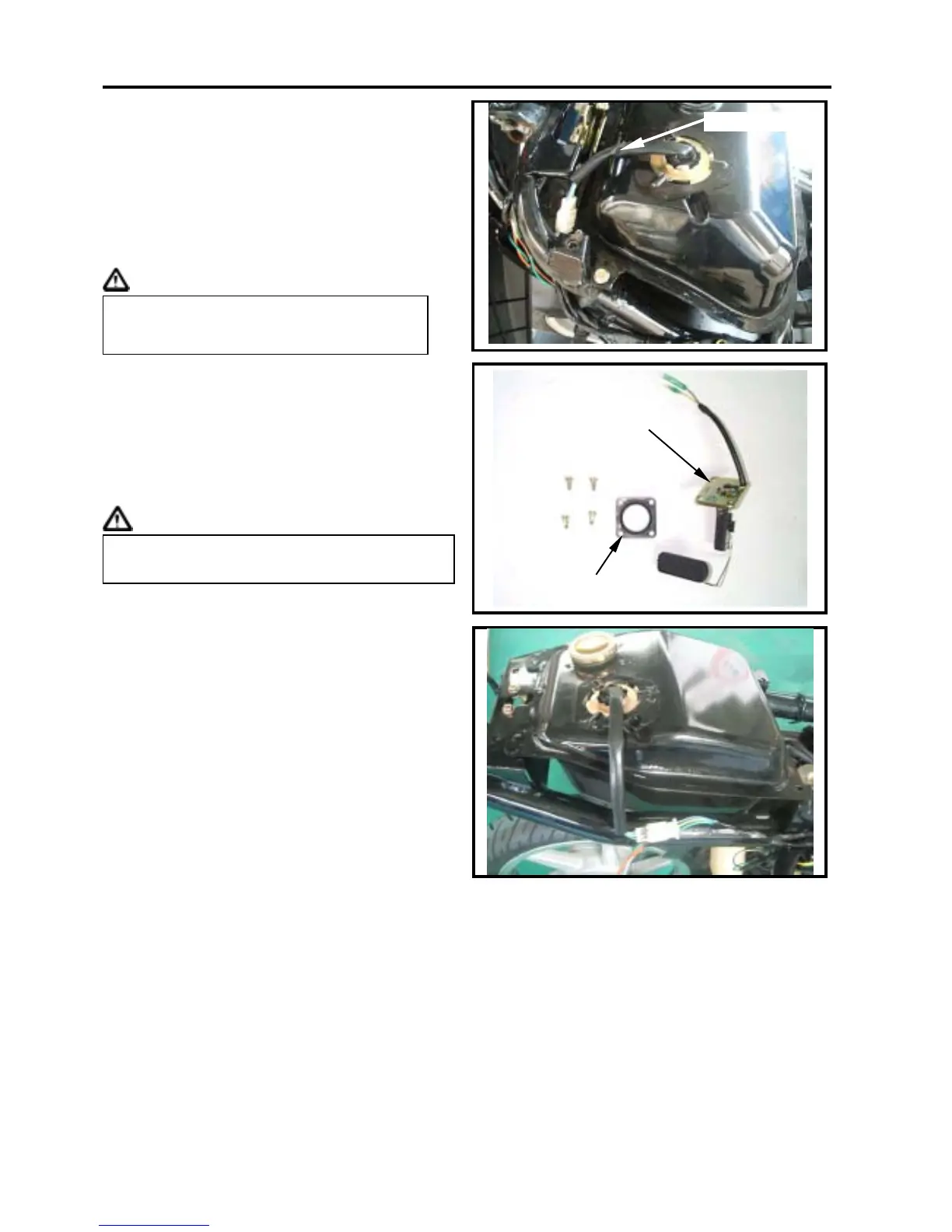

FUEL TANK
Fuel unit removal
Remove the seat.
Remove the rear carrier. (3 bolts)
Remove the luggage box and the double
seat(4 bolts).
Disconnect fuel unit connector.
Remove fuel unit.
Cautions
Fuel unit inspection. (Refer to chapter 16 -
electrical equipment).
Fuel unit installation
Install the gauge in the reverse order of
removal.
Cautions
FUEL TANK REMOVAL
Open the seat.
Remove the rear carrier. (3 bolts)
Remove the luggage box and the double
seat(4 bolts).
Remove the left & right body cover.
Disconnect the fuel unit connector.
Remove the fuel pipe, fuel filter.
Remove the fuel tank (2 bolts).
Fuel Tank Installation
Install the tank in the reverse order of
removal.
Do not bend the float arm of fuel unit.
Do not fill out too much gasoline to
fuel tank.
Do not forget to install the gasket of fuel unit
or damage it.
fuel unit
gasket
fuel unit connecto
