SYM 3. LUBRICATION SYSTEM
3-5

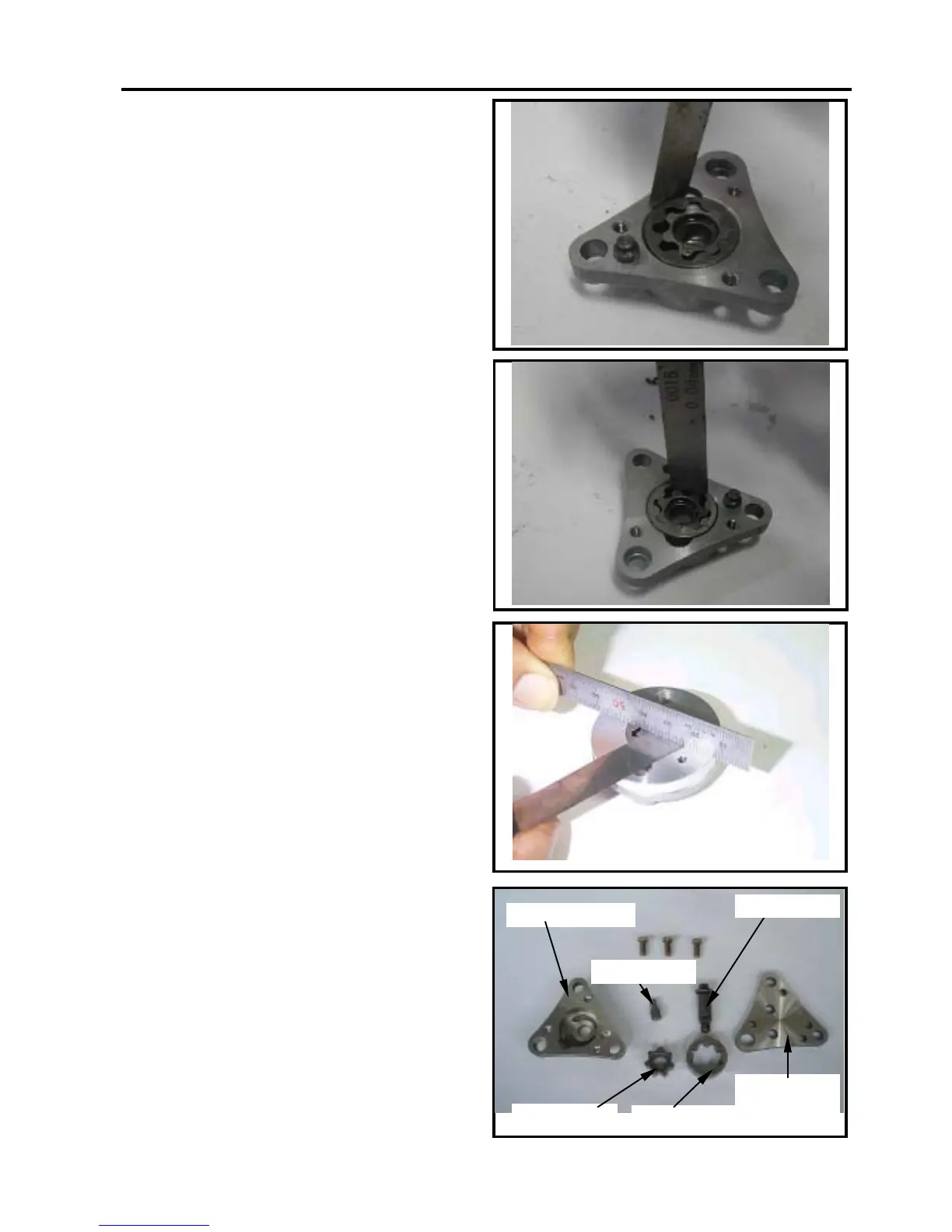

Oil Pump Inspection
Check the clearance between oil pump body
and outer rotor.
Limit: below 0.12 mm
Check clearance between inner and outer
rotors.
Limit: below 0.12 mm
Check clearance between rotor side face
and pump body.
Limit: below 2.0 mm
Oil Pump Re-assembly
Install inner and outer rotors into the pump
body.
Insert the drive shaft into the inner rotor.
Install the driving shaft.
Install the fixing pin.
Install the oil pump cover.
Install 3 screws into the oil pump.
outer roto
