SYM 8. V-BELT DRIVING SYSTEM/KICK STARTER ARM/STARTER CLUTCH
8-13

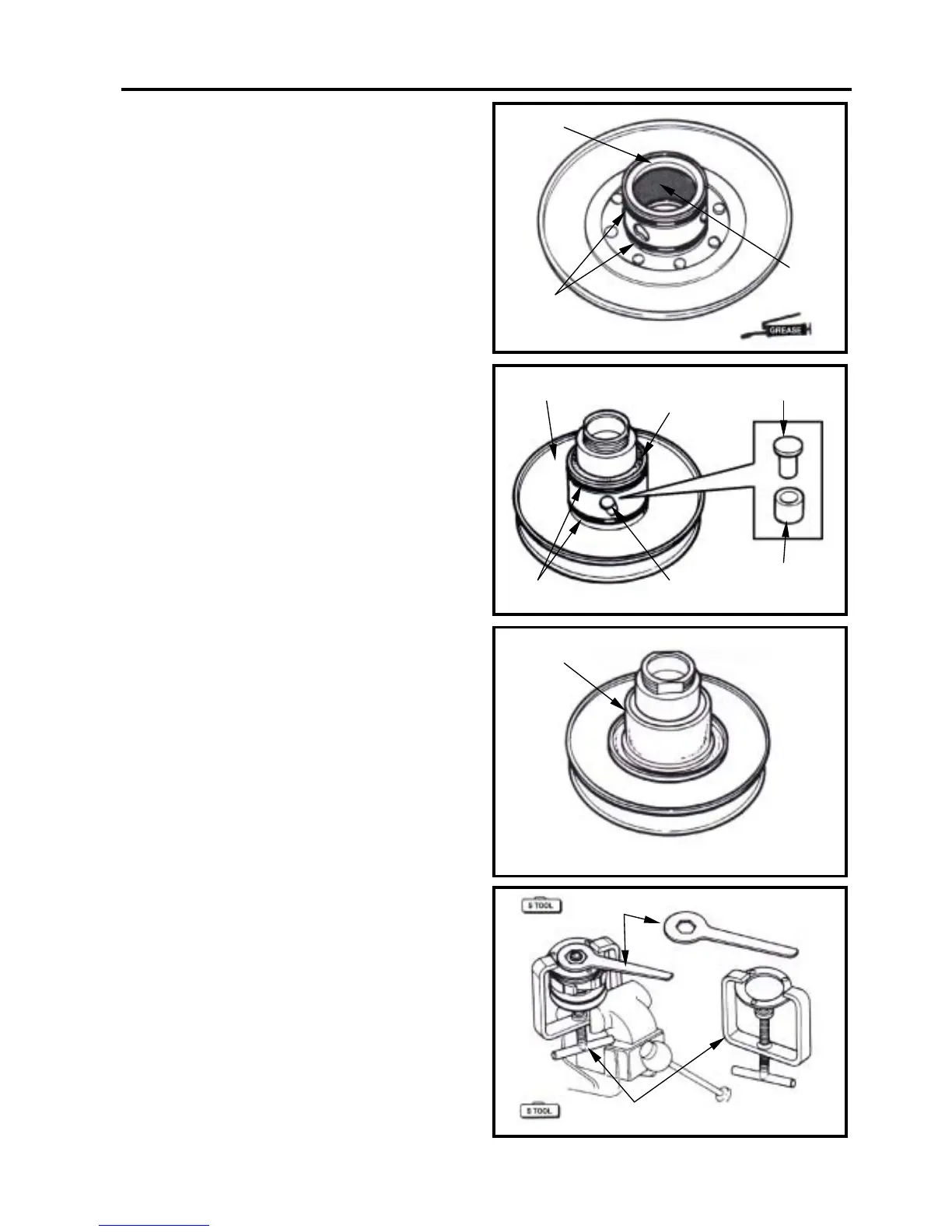

Installation of clutch/driven pulley
Install new oil seal and O-ring onto sliding
pulley. Apply with specified grease to
lubricate the inside of sliding pulley.
Install sliding pulley onto driven pulley.
Install guide pin and guide pin roller.
Install oil socket.
Install driven pulley,spring and clutch into
clutch spring compressor, and press down
the assembly by turning manual lever until
mounting nut that can be installed.
Hold the compressor by bench vise and
tighten the mounting nut to specified torque
with special nut wrench.
Remove the clutch spring compressor.
Torque value: 5.0~6.0 kg-m
Install clutch/driven pulley and driving belt
onto driving shaft.
Oil seal
O-ring
Specified
grease
Oil socket
O-ring
Guide pin
Guide pin
roller
Guide pin
Oil seal
Sliding pulley
Clutch spring compressor
Special nut wrench
