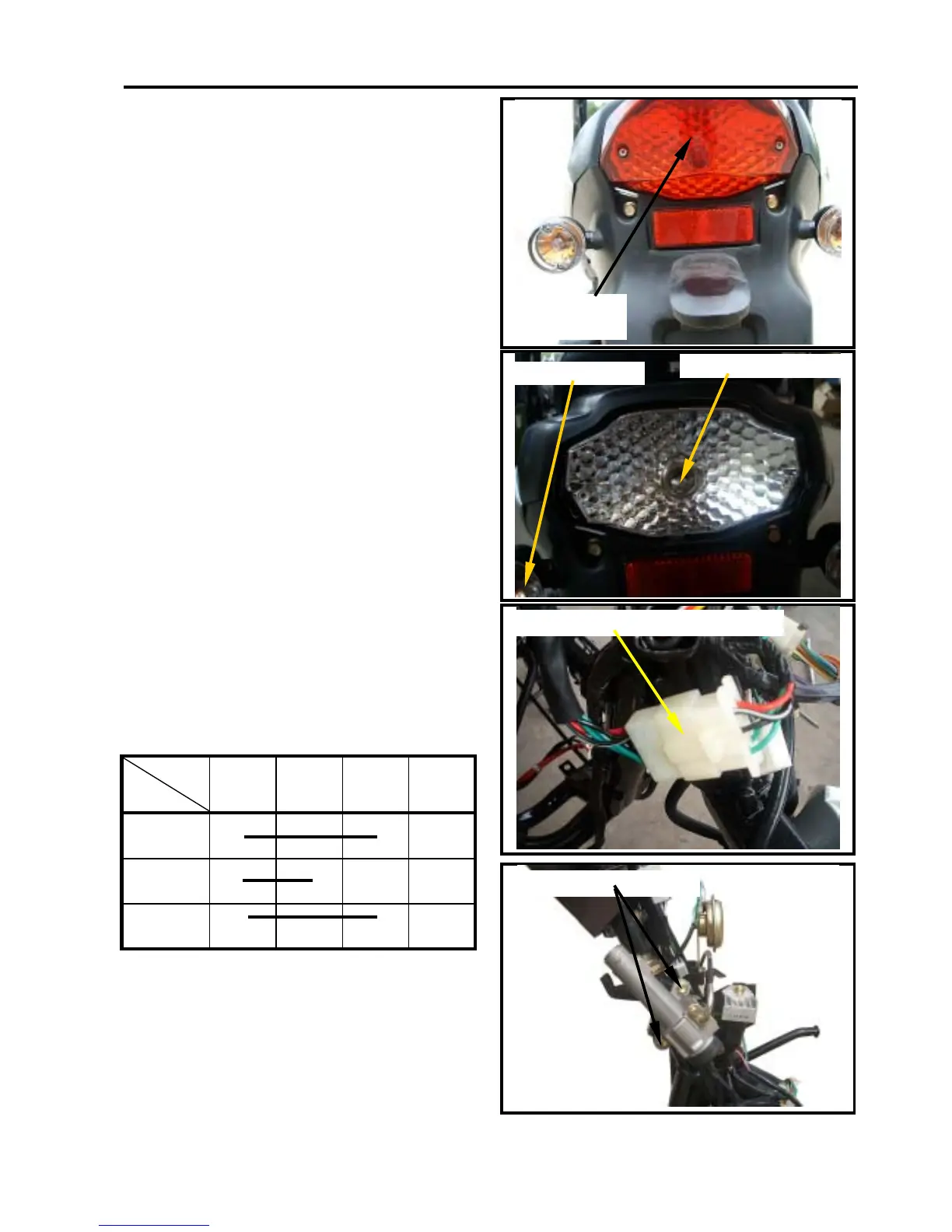

SYM 16. ELECTRICAL EQUIPMENT
16-19
Remove the tail light assembly.
Replace the bulbs of the tail light, brake light
(12V 5W/21W)
Replace the bulbs of the turn signal light
(12V/10W).
Installation
Install the bulb in reverse order of removal.
MAIN SWITCH/HORN
Main Switch
Check
Remove the headlight connector and the front
cover.
Disconnect main switch leads connector.
Check connector terminals for continuity.
color
Location
Black Red
green green
OFF
●
●
ON
● ●
LOCK
●
●
Replacement
Remove the main switch connector and
fixing bolts (bolts x 2)
Remove the main switch.
Install a new main switch and tighten the
bolts. (bolts x2)
main switch connector terminals
tail light & brake light
turn signal light
The tail light
assembly
main switch bolts x 2
