SYM 5. REMOVAL OF ENGINE
5-3

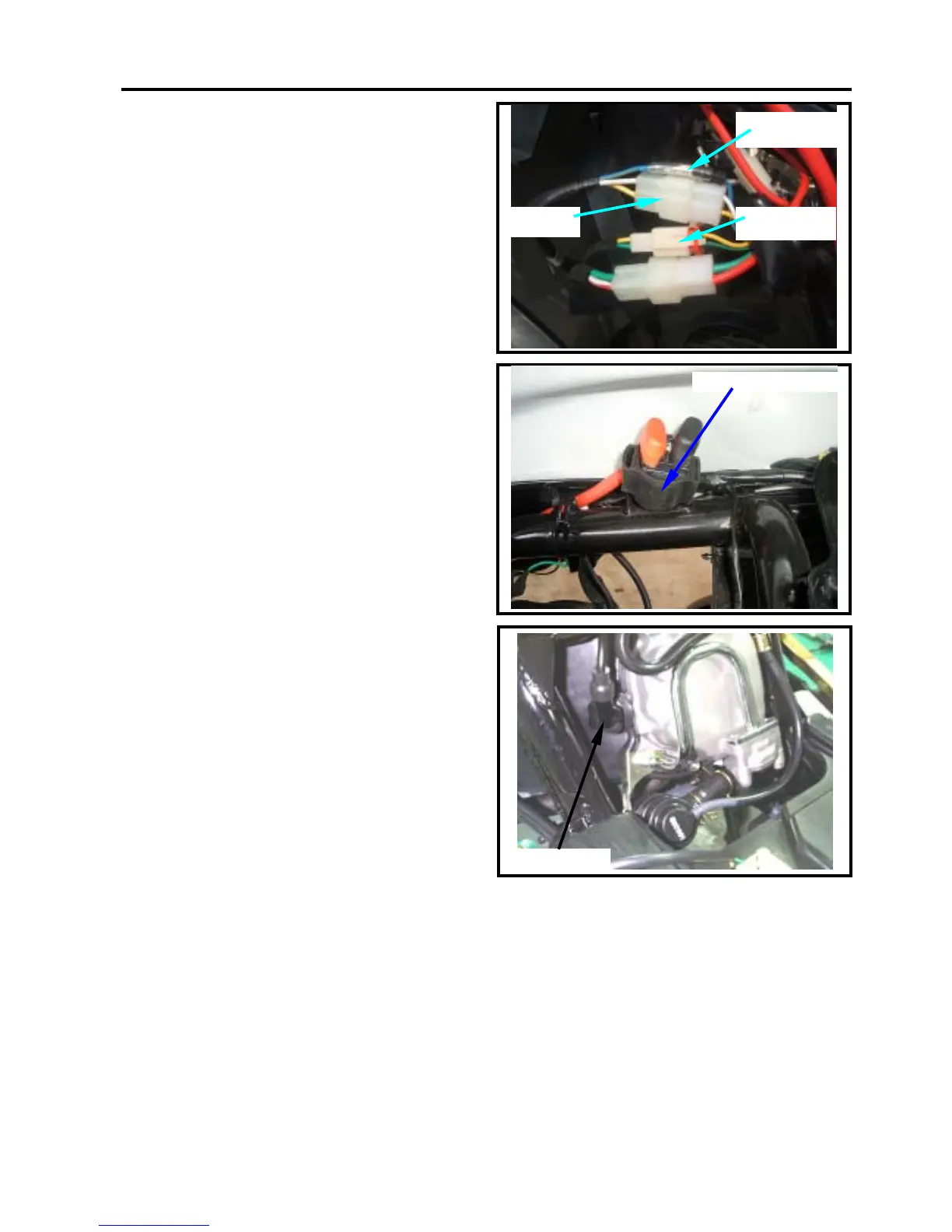

ENGINE REMOVAL
Open the seat.
Remove the luggage box assembly (4
bolts ).
Remove the body cover .
Remove the power connector of auto by-
start.
Remove the generator connector and pulse
generator connector.
Remove the starter motor wire on the Starter
magnetic switch.
Remove the spark plug cap.
Spark plug cap
Starter magnetic switch
Auto by-start
connector
G
enerato
r
connector
pulse generator
connector
