3. LUBRICATION SYSTEM SYM
3-6

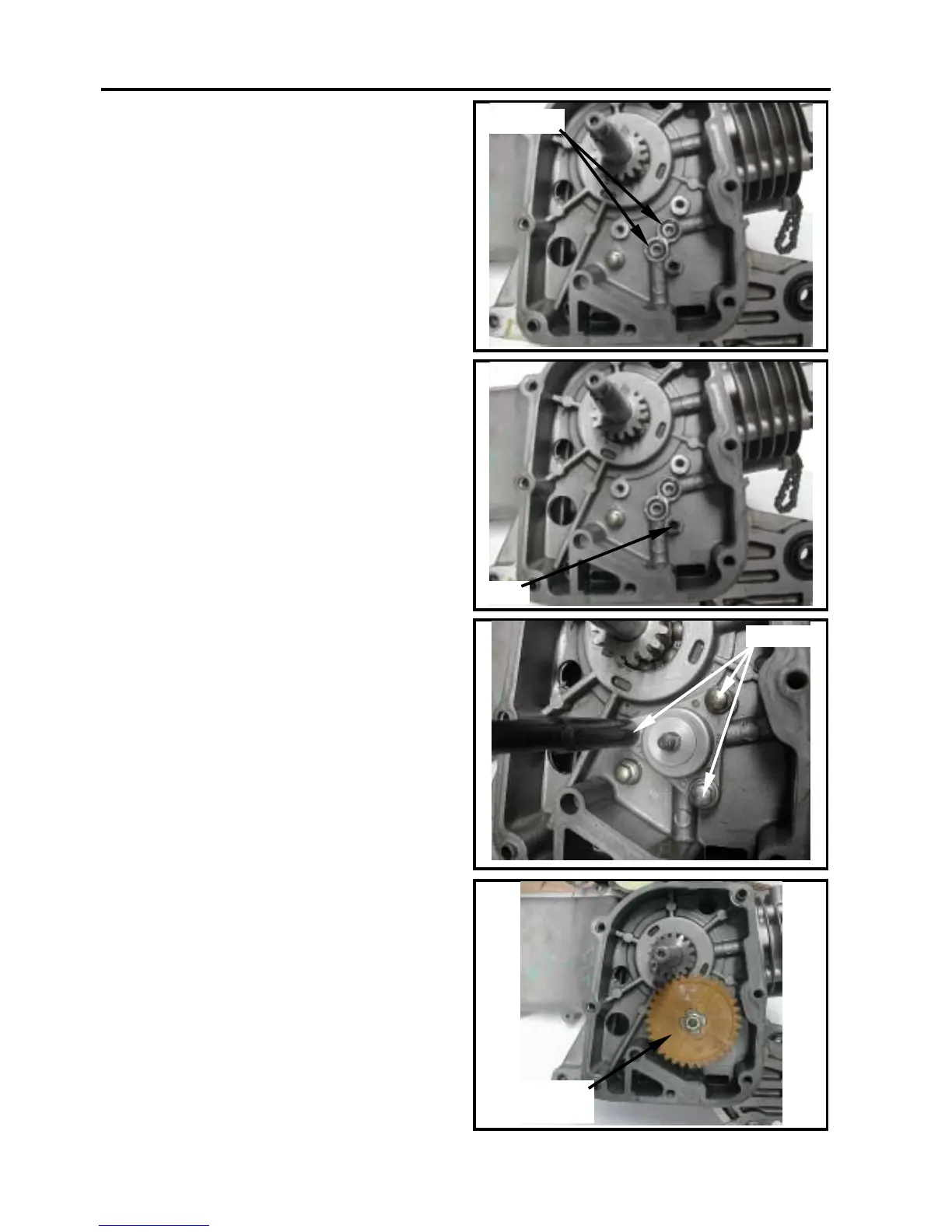

Oil Pump Installation
Install the 2 O-rings.
Install the oil pump pin.
Install the oil pump.
Install the oil pump body bolts (3 bolts).
Install the oil pump driving gear nut.
Install the alternator (refer to chapter10).
Install the engine right crankcase cover.
pump driving
gear nut
3 bolts
pin
2 O-rings
