TM8100/TM8200 Service Manual General Information 117
© Tait Electronics Limited June 2006

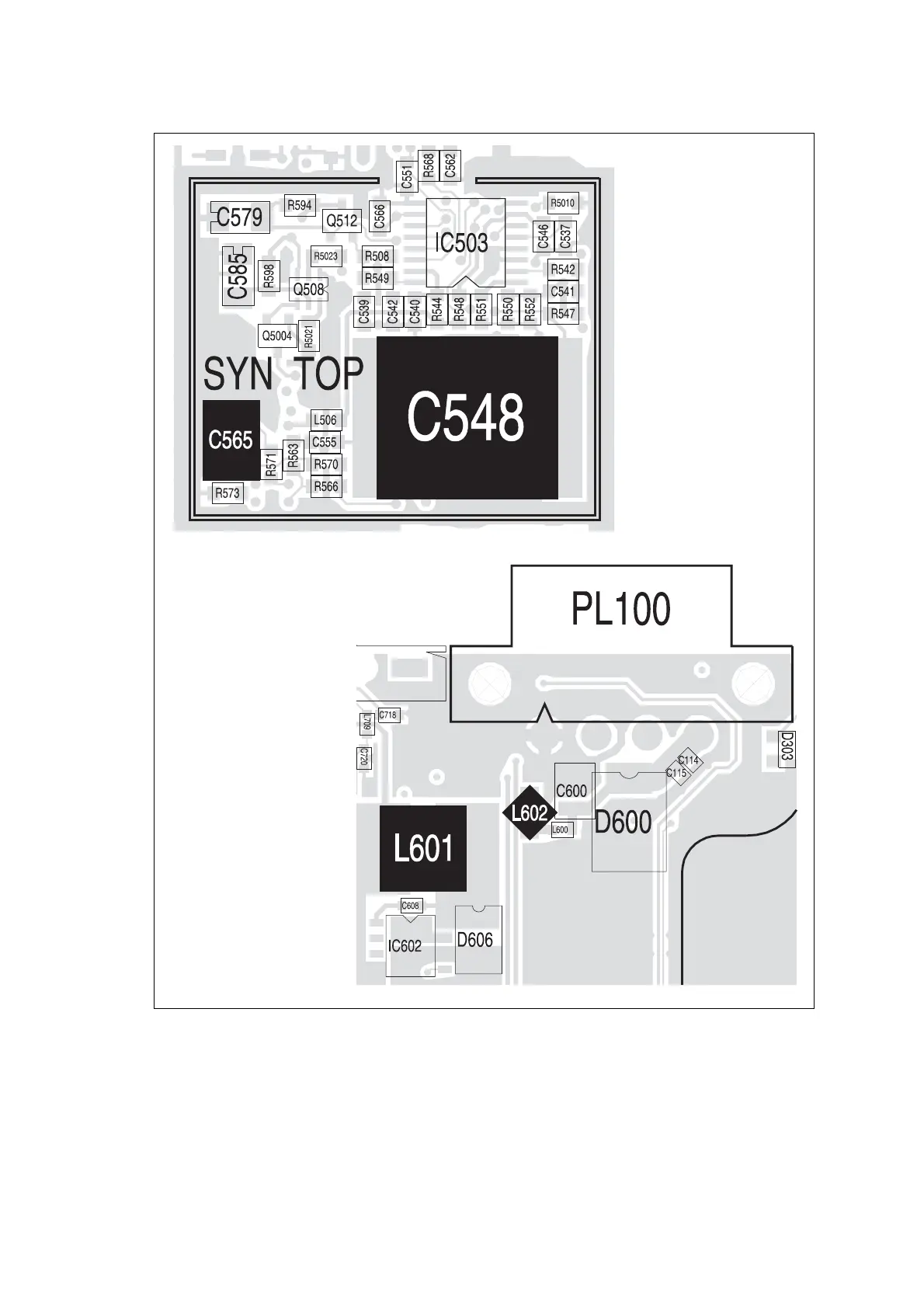

Figure 4.5 Locations of the capacitors C548 and C565 and the inductors L601 and L602
top side
(VHF board. UHF board similar)
Note that other components may be
fitted for C548 (such as C5085 and
C5086 for UHF radios)
bottom side
(UHF board. VHF board similar)
