TM8100/TM8200 Service Manual Disassembly and Reassembly 131
© Tait Electronics Limited June 2006
5.2 Disassembling the Radio Body
Disassemble only as much as necessary to replace the defective parts.
For reassembly instructions, refer to “Reassembling the Radio Body” on
page 137.
Removing the Cover 1. At the upper edge of the lower screw bosses on both sides of the radio
body, insert a 1/8 inch (3mm) flat-bladed screwdriver.
2. Push the screwdriver under the cover towards the upper screw boss to
release the cover from the upper screw boss.
3. Remove the cover.

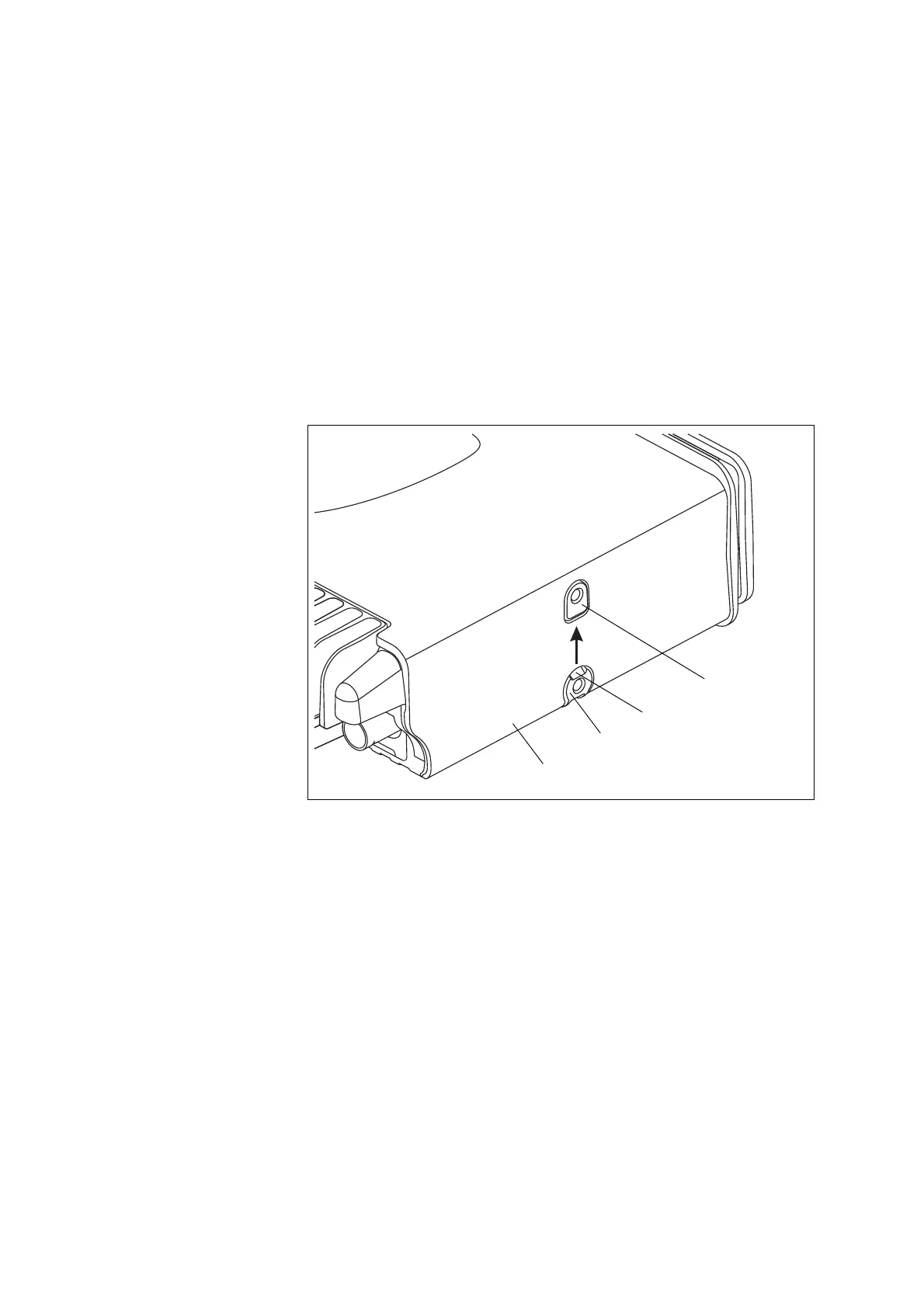

Figure 5.2 Removing the cover
insertion
point
upper
screw boss
cover
lower
screw boss
