Tait TM8110 Service Manual

TM8100/TM8200 Service Manual TOPA-SV-024 Test Unit 575
© Tait Electronics Limited June 2006
34.3 PCB Information
34.3.1 Parts List (PCB IPN 220-01418-02A Rev. 4)

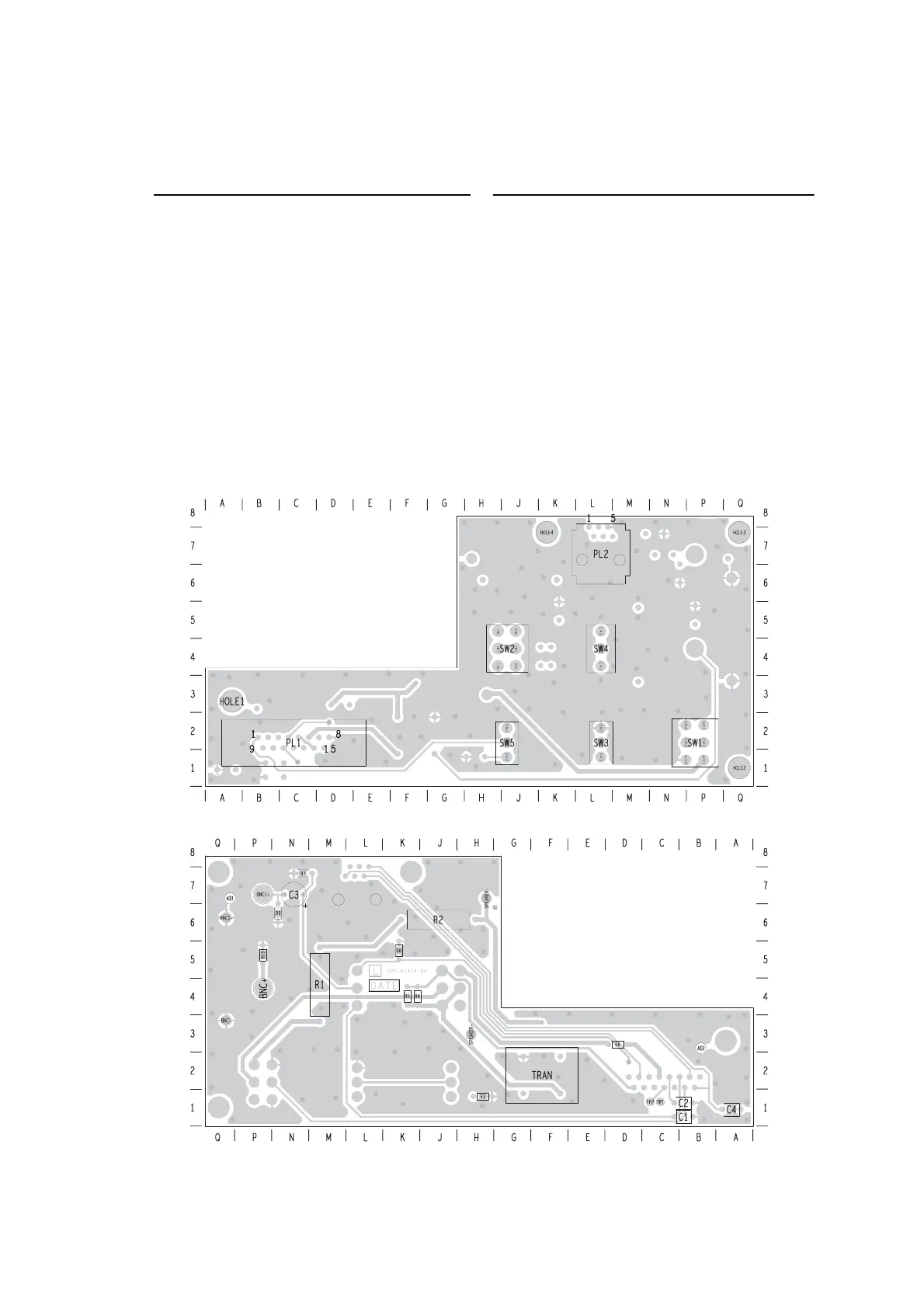

34.3.2 PCB Layout
BNC1 240-02100-11 Skt Coax BNC 3.5mm Pnl N/Tag
BNC2 240-02100-11 Skt Coax BNC 3.5mm Pnl N/Tag
C1 011-54100-01 Cap Cer AI 1n 10% T/C B 50v
C2 011-54100-01 Cap Cer AI 1n 10% T/C B 50v
C3 020-59100-06 Cap Elec Rdl 100m 16v 6.3x11
C4 011-54100-01 Cap Cer AI 1n 10% T/C B 50v
PL1 240-00010-55 Plg 15w Drng W-Wrap Pnl Mtg
PL2 240-04021-60 Skt 6w Modr Ph Vrt T-Ent
R1 032-31820-01 Res M/F Pwr 17x5 8e2 5% 2.5w
R2 032-31820-01 Res M/F Pwr 17x5 8e2 5% 2.5w
R3 030-55120-20 Res Flm 4x1.6 12k 5% 0.4w
R4 030-53560-20 Res Flm 4x1.6 560e 5% 0.4w
R5 030-54270-20 Res Flm 4x1.6 2k7 5% 0.4w
R6 030-52560-20 Res Flm 4x1.6 56e 5% 0.4w
R7 030-55100-20 Res Flm 4x1.6 10k 5% 0.4w
SW1 230-00010-42 Sw Tgl On Off On Dpdt Ms500hb
SW2 230-00010-57 Sw Tgl Dpdt On-On Pnl Mtg
SW3 230-00010-03 Sw Tgl Spst Mini Pnl Mtg
SW4 230-00010-16 Sw Tgr Spst 3-Pos Pnl Mtg
SW5 230-00010-03 Sw Tgl Spst Mini Pnl Mtg
TRAN 054-00010-17 Xfmr Line 600 Ohm 1:1
Not part of the PCB:
SPKR 032-31820-01 Res M/F Pwr 17x5 8e2 5% 2.5w
250-00010-19 Spkr C/W Rubber Sealing Ring
R
e
f
.
IPN D
escr
i
pt
i
on
R
e
f
.
IPN D
escr
i
pt
i
on
top side
bottom side
IPN 220-01418-02
