TM8100/TM8200 Service Manual TMAA03-02 Security Bracket 507

24 TMAA03-02 Security Bracket

The TMAA03-02 security bracket can be used in place of the standard

U-bracket in locations where you want to stop opportunistic removal of the

radio by a third party, or where you want to have a quick release setup that

allows you to swap over radios (e.g. leasing situation). The security bracket

also provides electrical isolation to the radio.

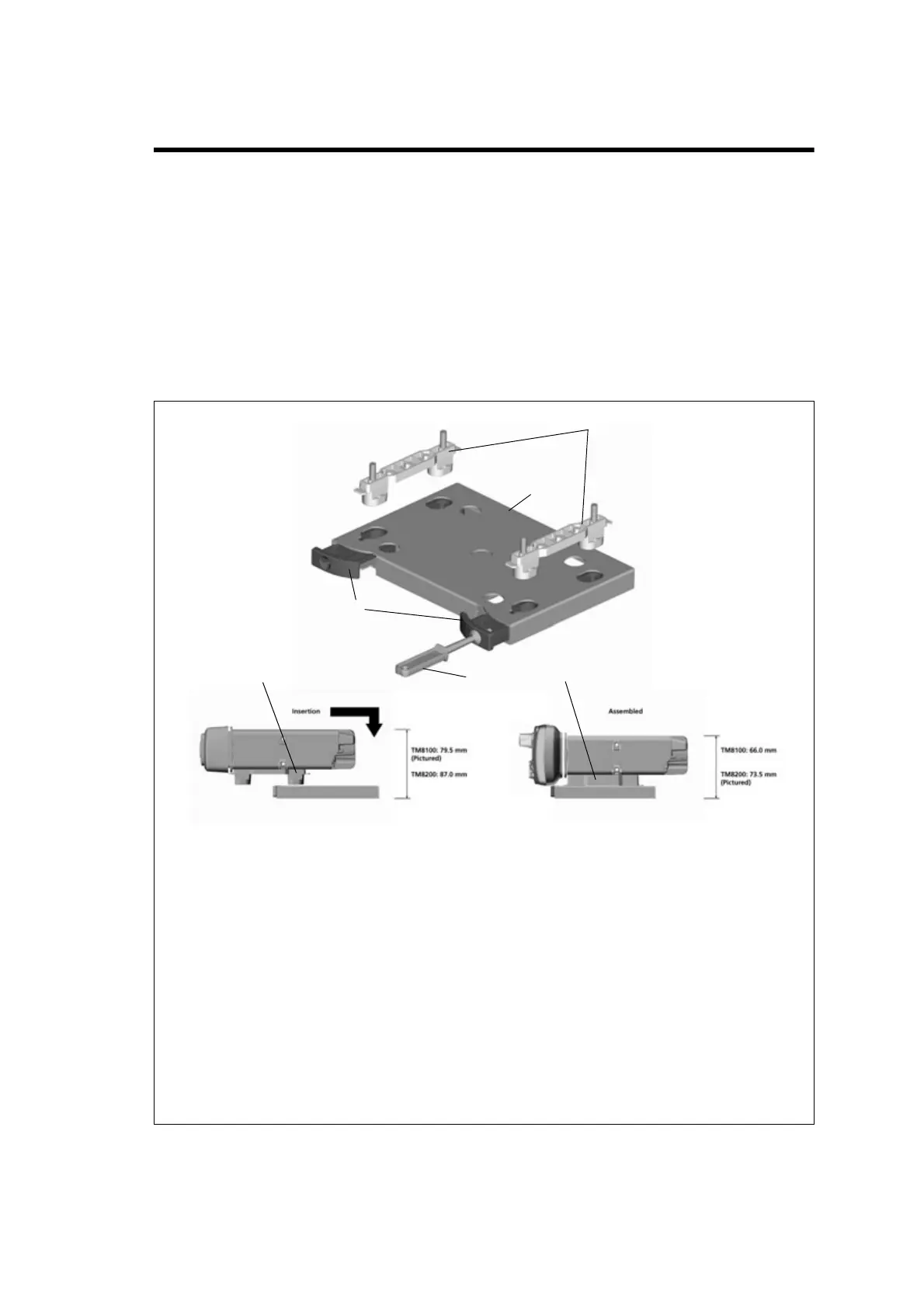

The parts of the TMAA03-02 security bracket are illustrated in Figure 24.1.

Figure 24.1 Parts of the TMAA03-02 security bracket

Description Quantity

security bracket cradle base 1

short mounting rails for TM8100 2

slide locks 1 left

1 right

screws (M4x25 T/T P/T ContiR) -

for attaching short mounting rails

to TM8100 radio (not pictured)

slide lock key 2

tall mounting rails for TM8200 2

self-tapping screws (10Gx20 hex/

poz) - for fixing security bracket in

place (not pictured)

4 screws (M4x30 T/T P/T ContiR) -

for attaching tall mounting rails to

TM8200 (not pictured)

anti-vibration washers for self-

tapping screws (not pictured)

Note:

B and C are pre-assembled

Mounting rails (see E and F)
