Greensmaster 3150Hydraulic System Page 4 -- 72

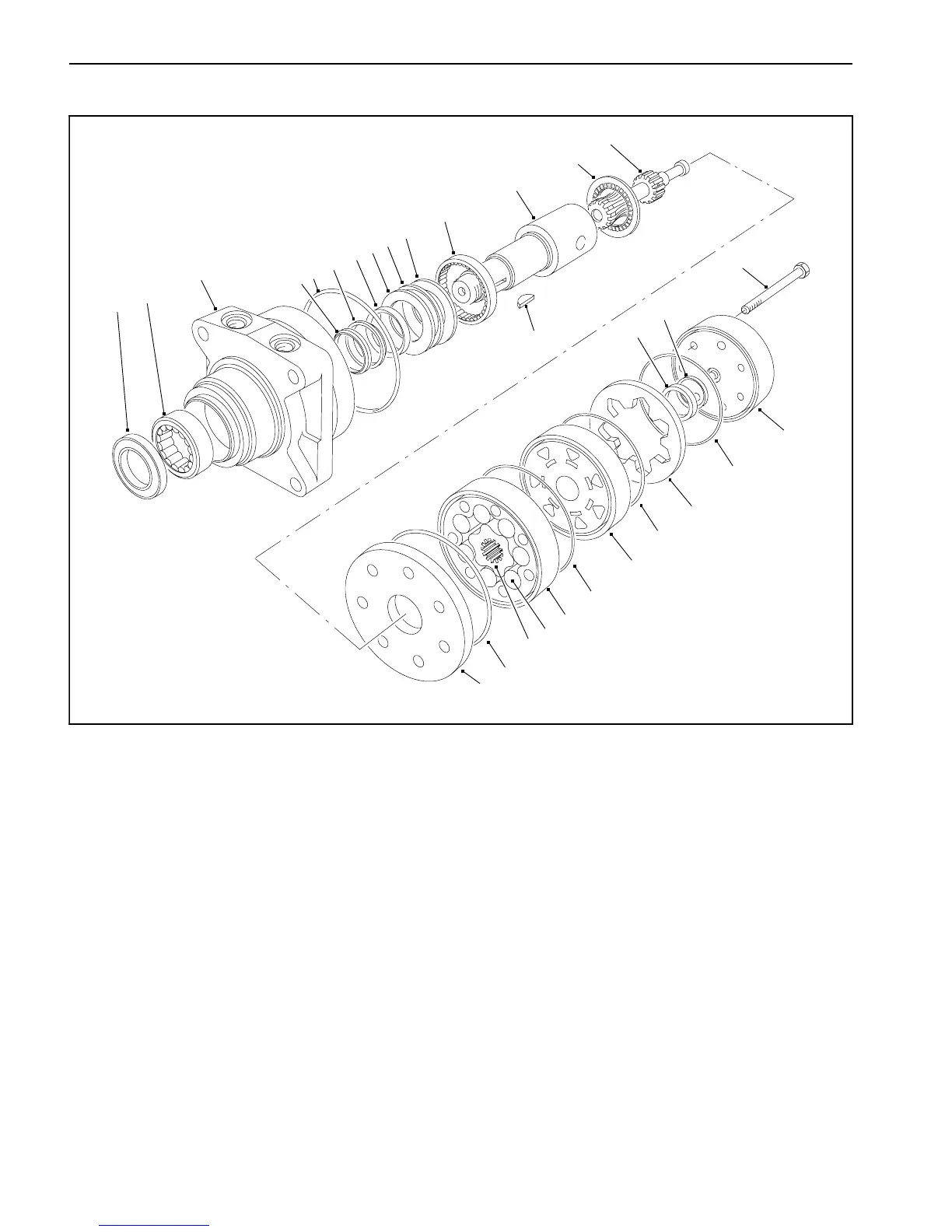

Wheel Motor Service
1. Dirt seal
2. Bearing
3. Housing
4. Back--up washer
5. Seal ring
6. Back--up washer
7. Inner seal
8. Thrust washer
9. Thrust bearing
10. Bearing
11. Coupling shaft
12. Thrust bearing
13. Drive link
14. Cap screw
15. Commutator seal
16. Commutator
17. Woodruff key
18. Wear plate
19. Rotor
20. Vane
21. Stator
22. Manifold
23. Commutator ring
24. End cover
Figure 51
1
2
3
4
5
6
7
8
9
10
16
17
18
19
20
21
22
23
24
11
12
13
14
15
8
5
5
5
5
NOTE: For repair of the wheel motors, see the Parker
Torqmotor
TM
Service Procedure (TC, TB, TE, TJ, TF,
TG, TH and TL Series) at the end of this chapter.
