Toro Greensmaster
3150 Service Manual

Page 9 -- 10

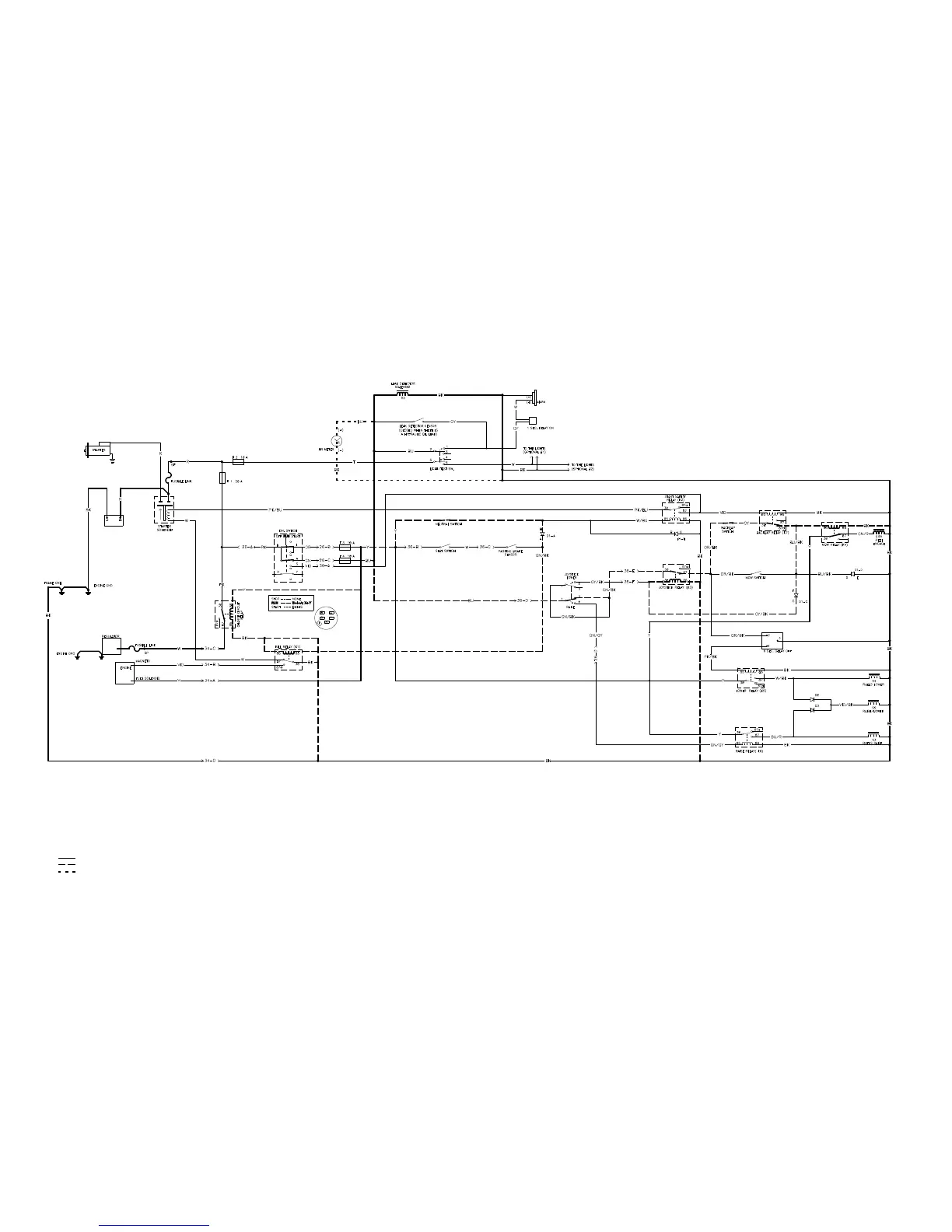

Backlap Circuits
Power Current
Control Current
Greensmaster 3150
Indication Current
(ENERGIZED)
(ENERGIZED)
(NOT OCCUPIED)
(IN NEUTRAL)
(ON POSITION)
(ENERGIZED)
(ENERGIZED)
NOTE: DIODE D1--C ALLOWS
CURRENT FLOW TO KEEP
JOYSTICK RELAY ENERGIZED
AFTERJOYSTICKIS
RELEASED FROM LOWER
NOTE: JOYSTICK RELAY INITIALLY ENERGIZED
WHEN JOYSTICKIS MOVED TO LOWER
(BACKLAP
POSITION)
