Toro Greensmaster
3150 Service Manual

Greensmaster 3150
DPA Cutting Units
Page 7 -- 24

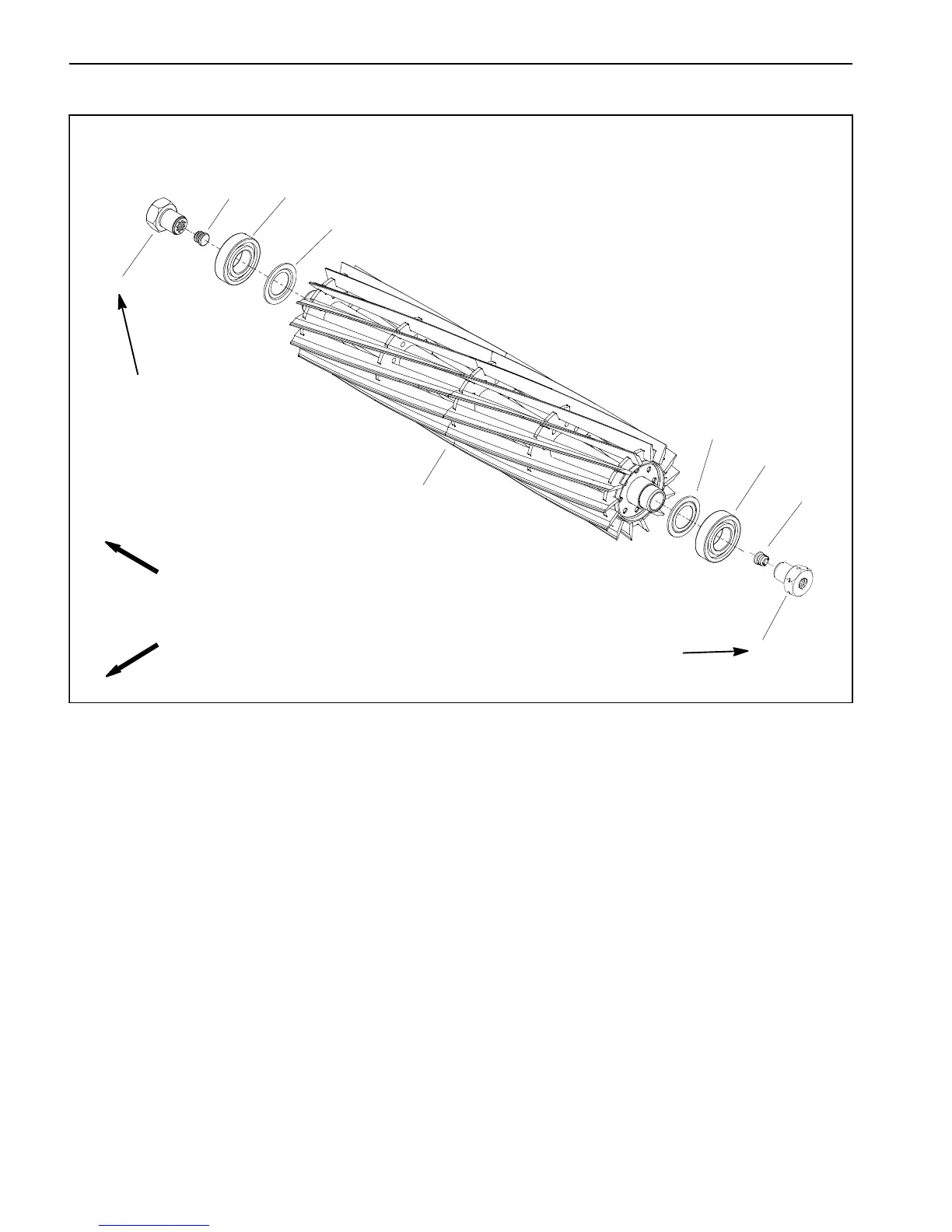

Reel Assembly Service
1. Cutting reel
2. Flocked seal (2 used)
3. Bearing (2 used)
4. Plug (2 used)
5. Reel nut (RH thread)
6. Reel nut (LH thread)
Figure 23
90 to 110 ft--lb
(123 to 149 N--m)
FRONT
RIGHT
(Right Hand Threads)
(Left Hand Threads)
1
2
3
4
5
3
2
90 to 110 ft--lb
(123 to 149 N--m)
6
4
NOTE: The reel nuts (items 5 and 6) are different. The
reelnut with lefthand threads(item 6)has ablack finish
and has notches on the head. The reel nut with right
hand threads (item 5) has a zinc finish and does not
have notches on the head.
