Toro Greensmaster
3150 Service Manual

Greensmaster 3150Groomer Page 8 -- 14

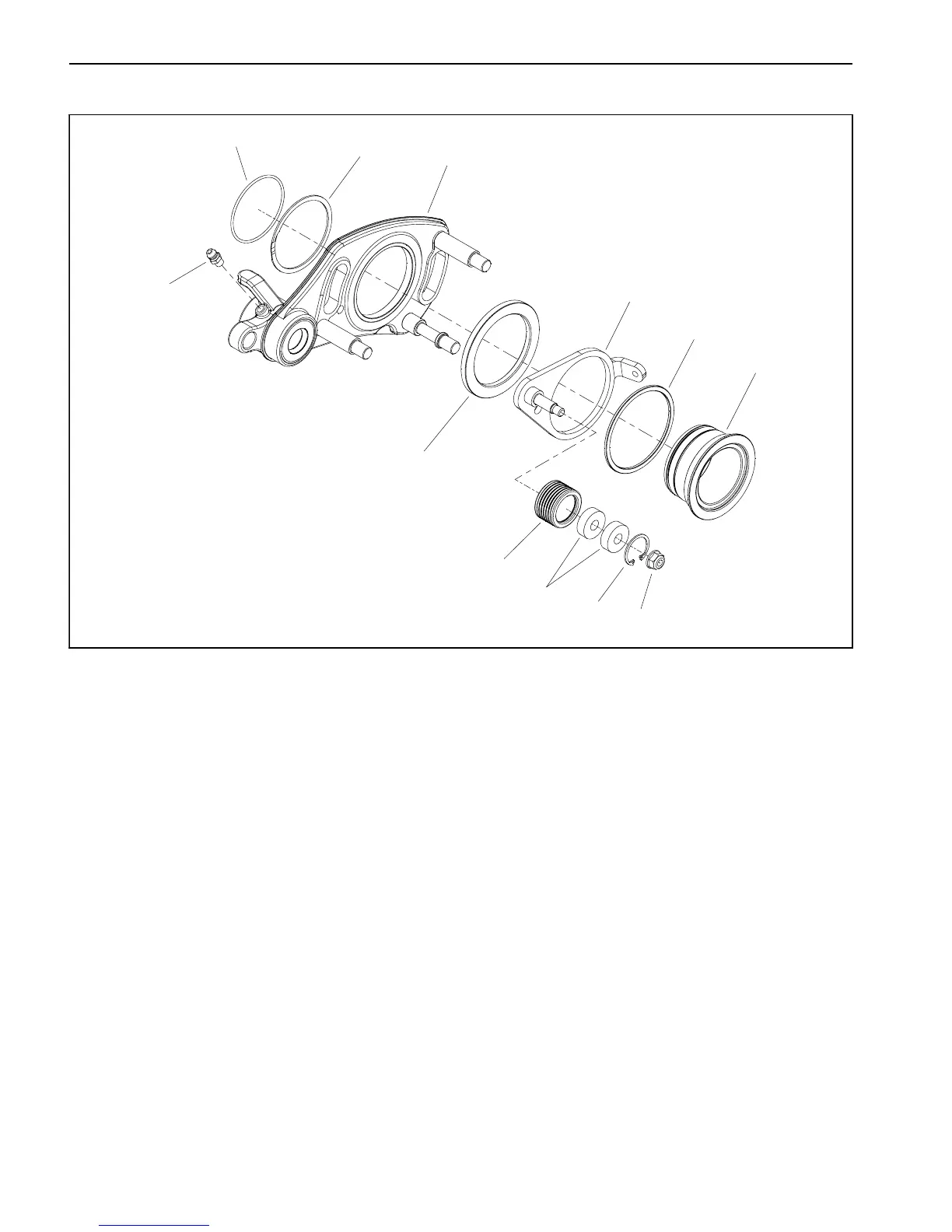

Idler Assembly
Figure 14
1. Pivot hub
2. Spacer
3. Idler bracket
4. Spacer
5. Drive plate assembly
6. O--ring
7. Retaining ring
8. Grease fitting
9. Bearing (2 used)
10. Retaining ring
11. Idler pulley
12. Lock nut
1
2
3
4
5
6
7
8
11
12
9
10
