Greensmaster 3150Page 6 -- 12Chassis

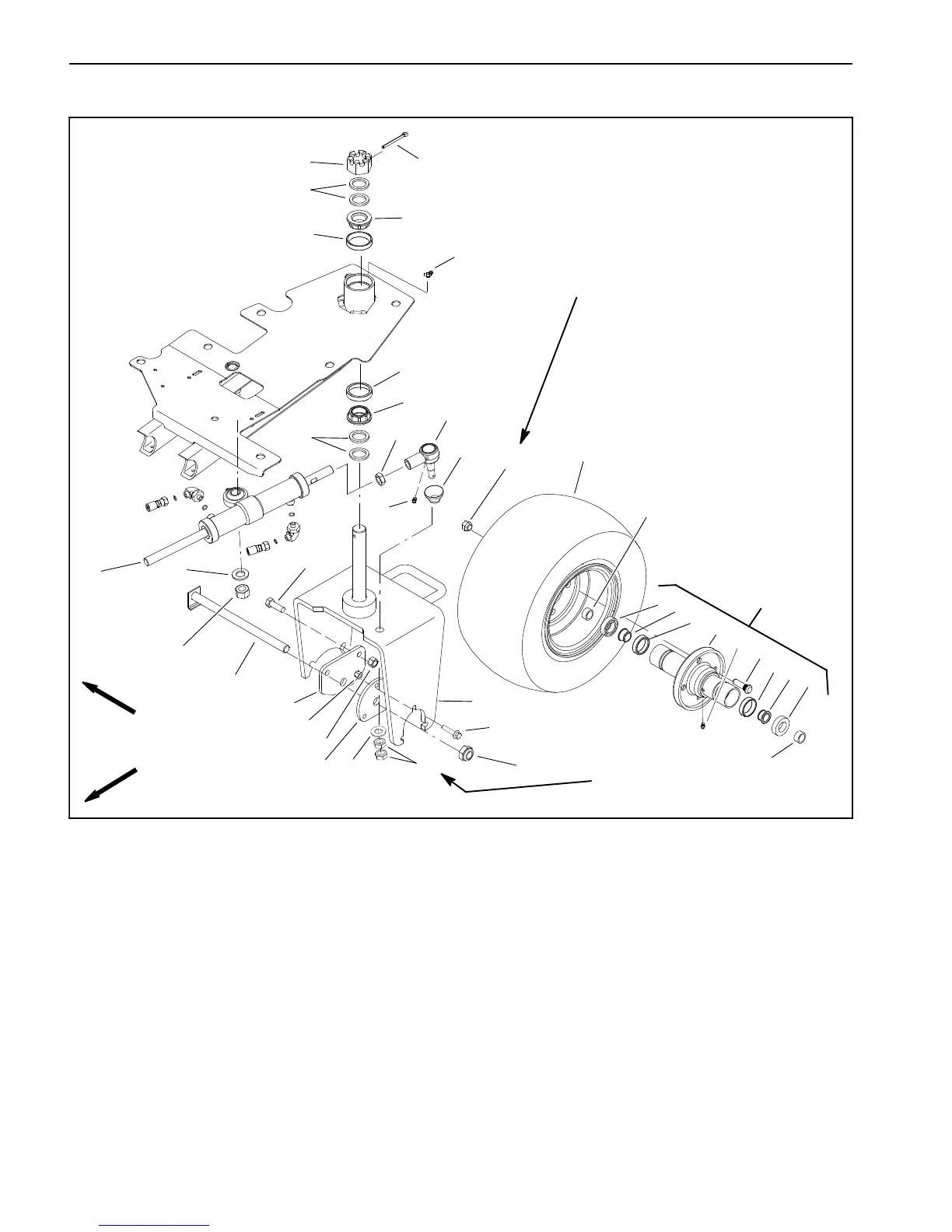

Rear Castor Fork
1. Steering cylinder
2. Bearing cup (2 used)
3. Bearing cone (2 used)
4. Washer (4 used)
5. Slotted hex nut
6. Cotter pin
7. Grease fitting
8. Jam nut
9. Rod end
10. Dust seal
11. Lug nut (4 used)
12. Wheel assembly
13. Washer
14. Lock nut
15. Cap screw (2 used)
16. Spacer (2 used)
17. Hub assembly
18. Seal (2 used)
19. Bearing cone (2 used)
20. Bearing cup (2 used)
21. Hub
22. Grease fitting
23. Drive stud (4 used)
24. Castor fork
25. Flange head screw (3 used)
26. Lock nut
27. Castor bolt
28. Jam nut (2 used)
29. Flat washer
30. Adapter plate
31. Lock nut (2 used)
32. Lock nut (3 used)
33. Motor adapter plate
34. Grease fitting
Figure 10
FRONT
RIGHT
4
1
70 to 90 ft--lb
(95 to 122 N--m)
2
3
4
5
6
7
8
9
10
2
3
11
12
13
14
15
16
17
18
19
20
16
18
19
20
21
22
23
24
25
26
28
2930
31
32
33
27
34
65 to 85 ft--lb
(89 to 115 N--m)
