Greensmaster 3150Groomer Page 8 -- 6
Adjustments
CAUTION
Never work on the cutting unit with the engine
running.Alwaysstoptheengineandremovethe
key from the ignition switch before working on
the mower.
NOTE: See the Groomer Installation Instructions for
adjustment procedures for the groomer on your
Greensmaster.
Height/Depth of Groomer Adjustment
NOTE: Grooming is performed above the soil level.
When adjusting groomer height/depth, groomer blades
should never penetrate the soil.
1. Park machine on a clean and level surface, lower
cutting units completely to the ground, stop engine, en-
gage parking brake and remove key from the ignition
switch.
2. Make sure rollers are clean and cutting reel is set to
the desired height--of--cut (see Cutting Unit Operator’s
Manual for cutting unit adjustment procedures).
3. Position the grooming reel to the lowered, grooming
position (Fig. 1).
NOTE: Improper orover--aggressiveuse ofthegroom-
ing reel (i.e. too deep or too frequent grooming) may
cause u nnecessary stress on the turf leading to severe
greens damage. Use the groomer cautiously.
4. On one end of the grooming reel, measure the dis-
tance from the lowest tip of the groomer blade to the
workingsurface. Liftand turnheight adjustment knobto
raiseorlowerthebladetip(Fig.1).Eachnotchonthe
adjustment knob changes the groomer height approxi-
mately 0.003 inch (0.08 mm).
5. Repeat step 4 on the opposite end of the groomer.
Then, recheck setting on the first side of groomer.
Heightsettingonbothendsofgroomershouldbeidenti-
cal.

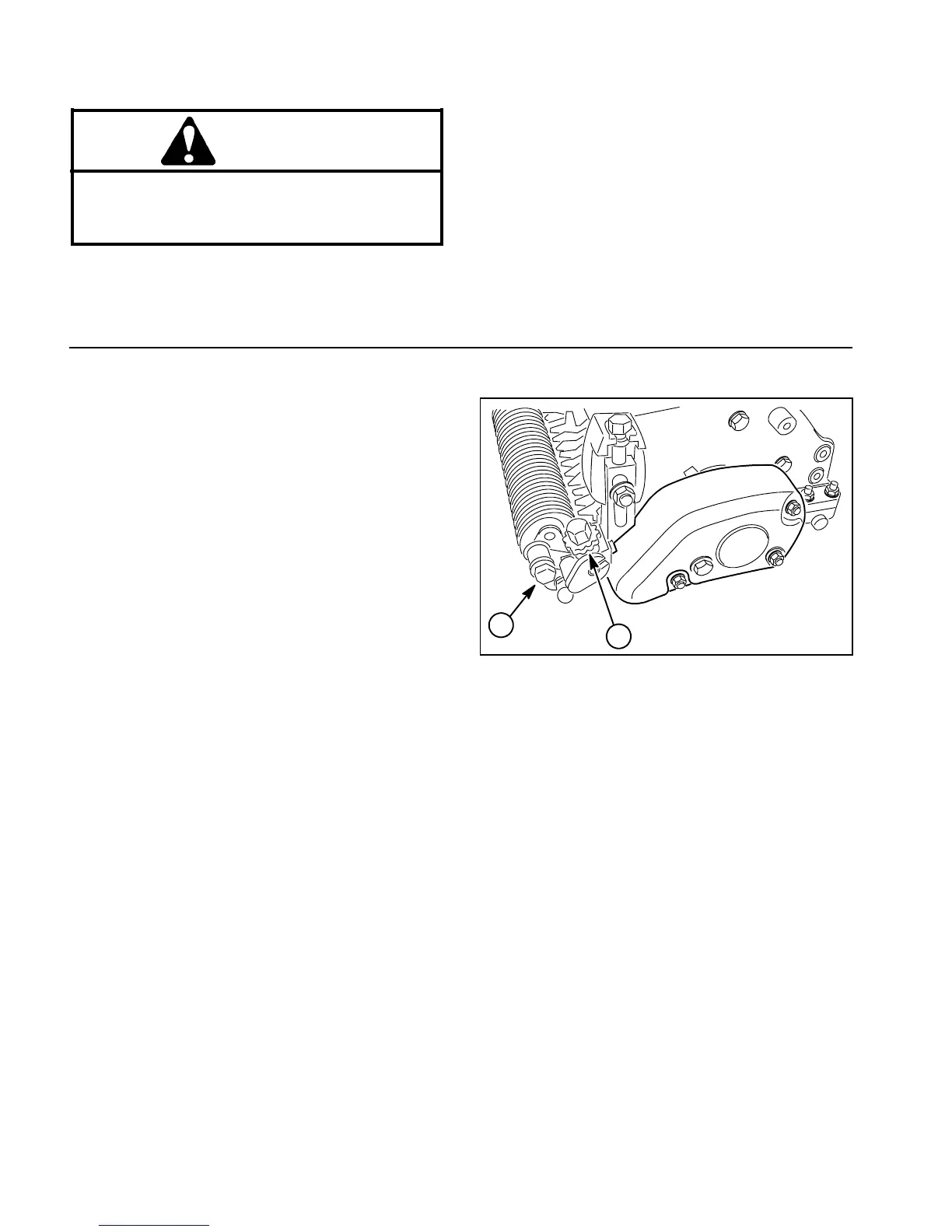

1. Height adjustment knob 2. Lock screw
Figure 1
2
1
