Toro Greensmaster
3150 Service Manual

Greensmaster 3150Hydraulic System Page 4 -- 70

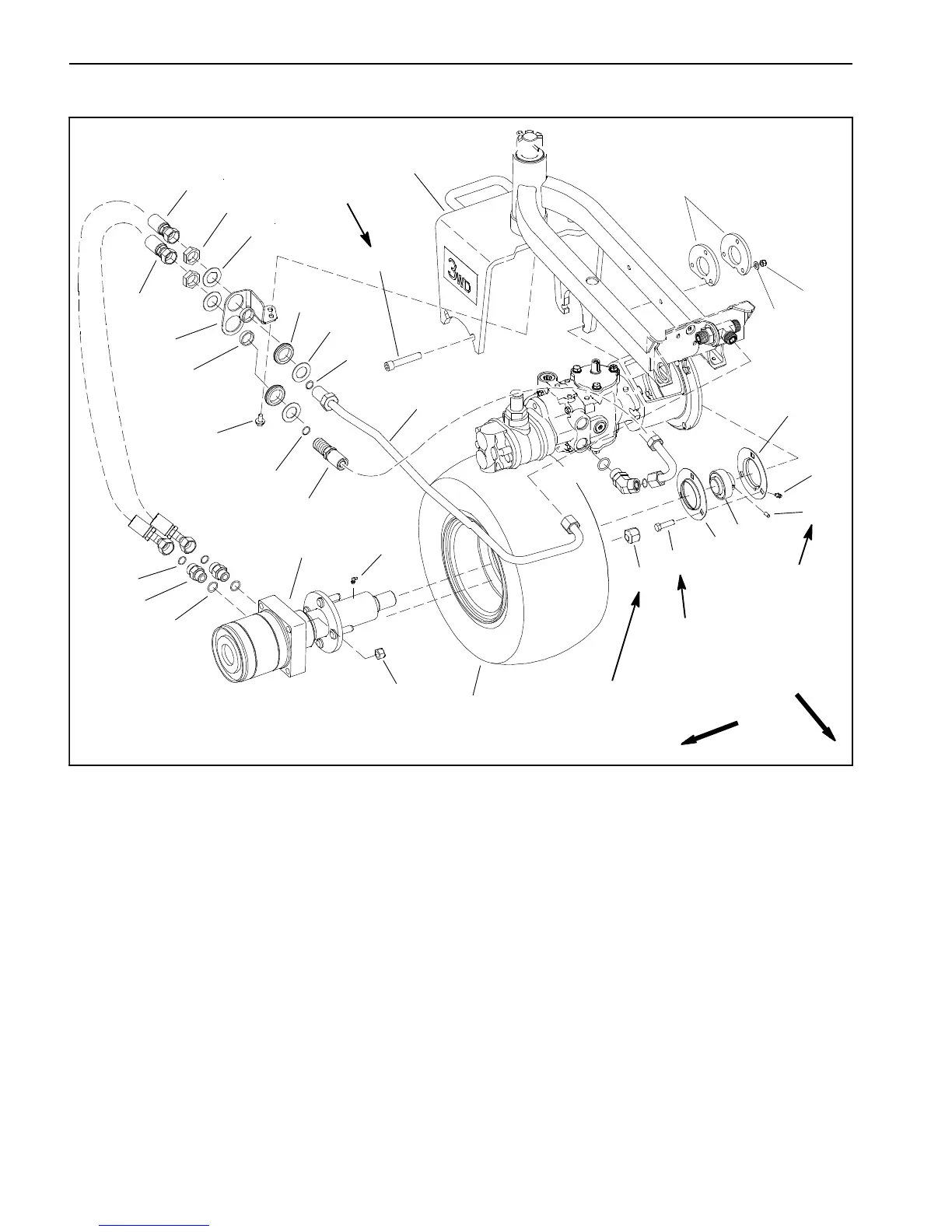

Rear Wheel Motor (Optional 3 WD)
Figure 50
FRONT
RIGHT
18
6
16
19
5
31
3
2
30
15
23
7
5
1
4
14
9
10
11
12
13
20
24
25
26
17
21
22
1. Lock nut (2 used)
2. Spacer (2 used)
3. Grommet (2 used)
4. Hydraulic hose assembly
5. Washer (4 used)
6. Castor fork
7. Mount spacer (2 used)
8. Grease fitting
9. Bearing flangette (lube)
10. Bearing
11. Bearing flangette
12. Cap screw (3 used)
13. Lock nut (2 used)
14. Wheel motor & hub assembly
15. Adapter (2 used)
16. Socket head screw (2 used)
17. Bulkhead bracket
18. Lug nut (4 used)
19. Hydraulic hose assembly
20. Hydraulic tube assembly
21. Washer (3 used)
22. Lock nut (3 used)
23. O--ring
24. O--ring
25. O--ring
26. O--ring
27. Set screw
28. Wheel assembly
29. Grease fitting
30. Hydraulic hose assembly
31. Washer head screw (2 used)
70 to 90 ft--lb
(95 to122 N--m)
100 ft--lb
(135 N--m)
40 ft--lb
(55 N--m)
80 to 100 in--lb
(9.0 to 11.3 N--m)
27
28
8
Loctite #242
29
NOTE: For service of the hub and motor assembly
(item 14) on machines equipped with 3WD, see Rear
Wheel (Optional3WD) and Rear Wheel Hub and Motor
Assembly (Optional 3WD) in the Service and Repairs
section of Chapter 6 -- Chassis.
