Greensmaster 3150Hydraulic System Page 4 -- 88
Hydraulic Manifold
1. 90
o
hydraulic fitting (4 used)
2. Tee hydraulic fitting
3. Hydraulic test fitting
4. Dust cap
5. O--ring
6. 90
o
hydraulic fitting
7. 90
o
hydraulic fitting
8. 90
o
hydraulic fitting
9. 90
o
hydraulic fitting
10. Straight hydraulic fitting (2 used)
11. 45
o
hydraulic fitting
12. Hydraulic manifold assembly
13. Cap screw (2 used)
14. 45
o
hydraulic fitting
15. Hydraulic tube
16. Straight hydraulic fitting
17. O--ring
18. Hydraulic tube
19. Hydraulic hose
20. O--ring
21. Hydraulic hose
22. O--ring
23. O--ring
24. Hydraulic hose
25. Hydraulic hose
26. Hydraulic hose
27. Hydraulic tube
28. O--ring
29. O--ring
30. Hydraulic hose
31. Hydraulic hose
32. Hydraulic hose
33. Hydraulic hose
34. O--ring
35. O--ring
36. Hydraulic hose
37. O--ring
38. O--ring
39. O--ring

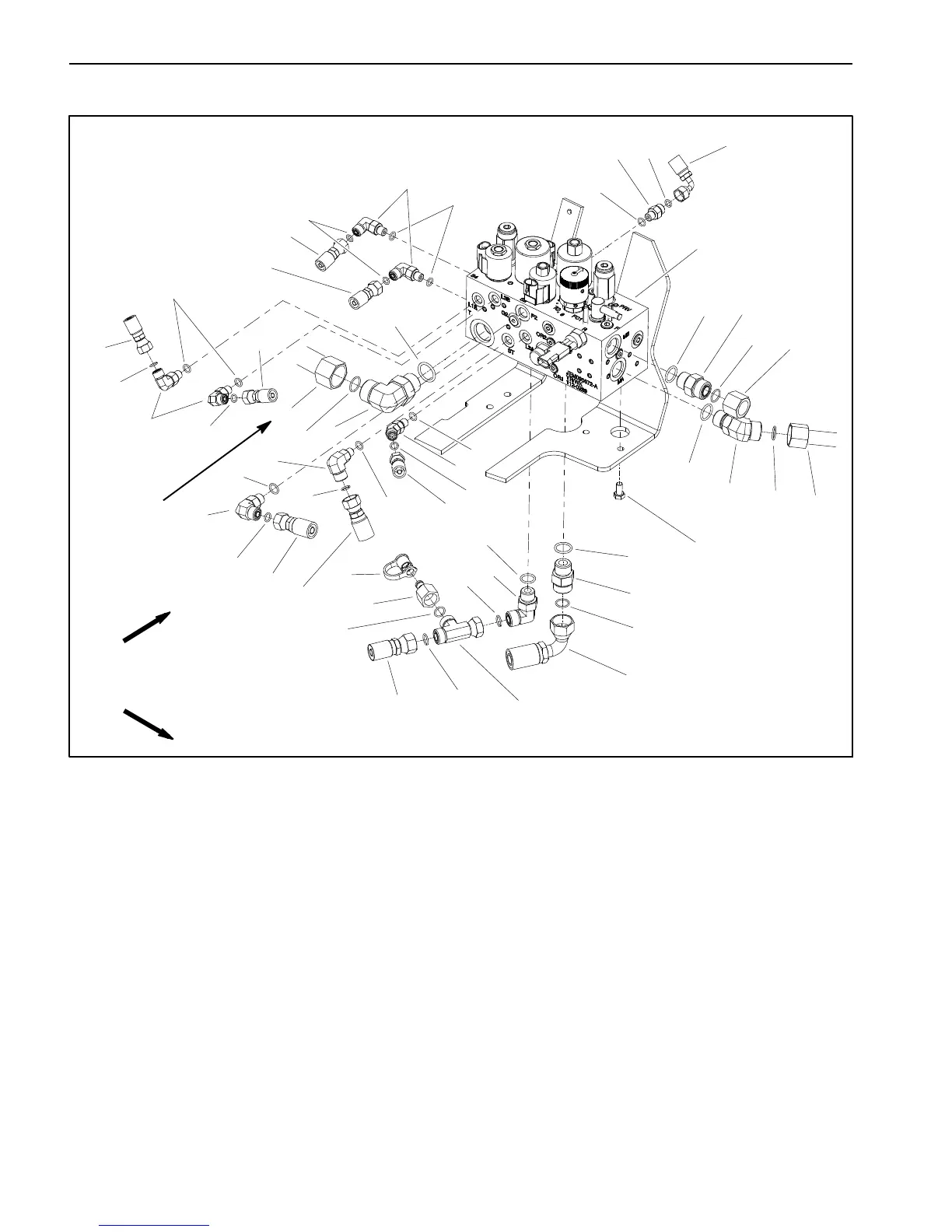

Figure 66
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
23
24
25
26
27
28
29
30
10
1
5
5
5
5
17
17
17
22
23
28
28
31
32
33
34
35
36
37
38
17
37
39
55 to 65 ft--lb
(75to88N--m)
NOTE: The p orts on the manifold are marked for easy
identification of components. Example: FC1 is the reel
circuit flow control valve and P1 is the gear pump con-
nection port (see Hydraulic Schematic to identify the
function of the hydraulic lines and cartridge valves at
each port location).
