Greensmaster 3150 GroomerPage 8 -- 7
Service and Repairs
Groomer Belt Replacement
1. Park machine on a clean and level surface, lower
cutting units completely to the ground, stop engine, en-
gage parking brake and remove key from the ignition
switch.
2. If equipped, remove rear roller brush from cutting
unit (see Rear Roller Brush Removal in the Service and
Repairs section of Chapter 7 -- DPA Cutting Units).
3. Remove three (3) lock nuts that secure groomer
drive cover, then remove cover (Fig. 2).
4. Pivot idler pulley by placing a 12mm wrench on
pulleynutandrotatingidlerbrackettorelax belttension.
Slip groomer drive belt off pulleys (Fig. 3). Carefully re-
lease idler bracket.
IMPORTANT: Make sure that the drive belt is cen-
tered on the pulleys and correctly aligned with
pulley grooves after installation.
5. Install new drive belt to drive pulley, idler pulley and
driven pulley observing correct belt routing (Fig. 3).
6. Secure beltcoverto machinewith three(3) locknuts
(Fig. 2).
7. If equipped, install rear roller brush to cutting unit
(see Rear Roller Brush Installation in the Service and
Repairs section of Chapter 7 -- DPA Cutting Units).

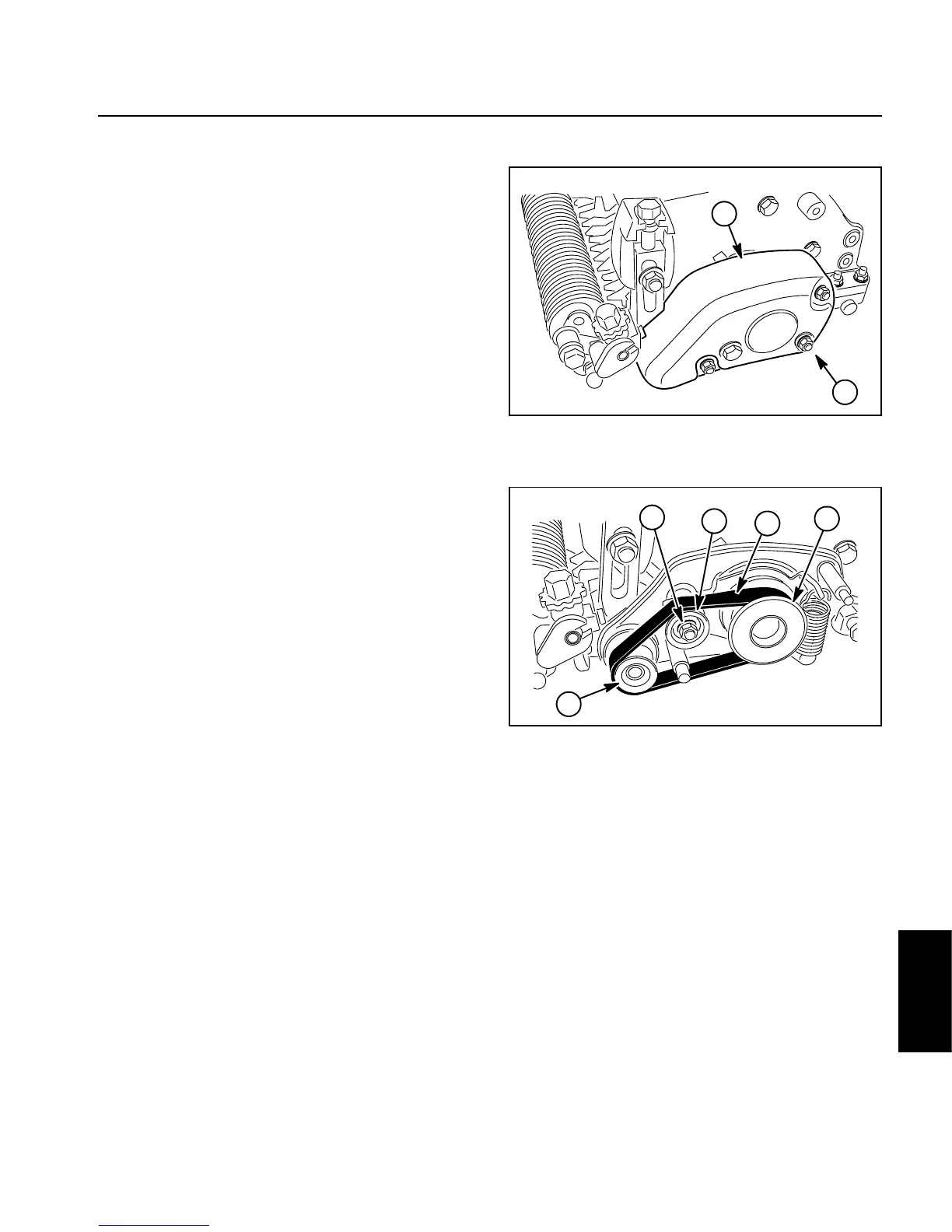

1. Groomer drive cover 2. Lock nut (3 used)
Figure 2
1
2
1. Drive pulley
2. Idler pulley
3. Idler pulley nut
4. Driven pulley
5. Groomer drive belt
Figure 3
1
2
3
4
5
Groomer
