Greensmaster 3150Hydraulic System Page 4 -- 86

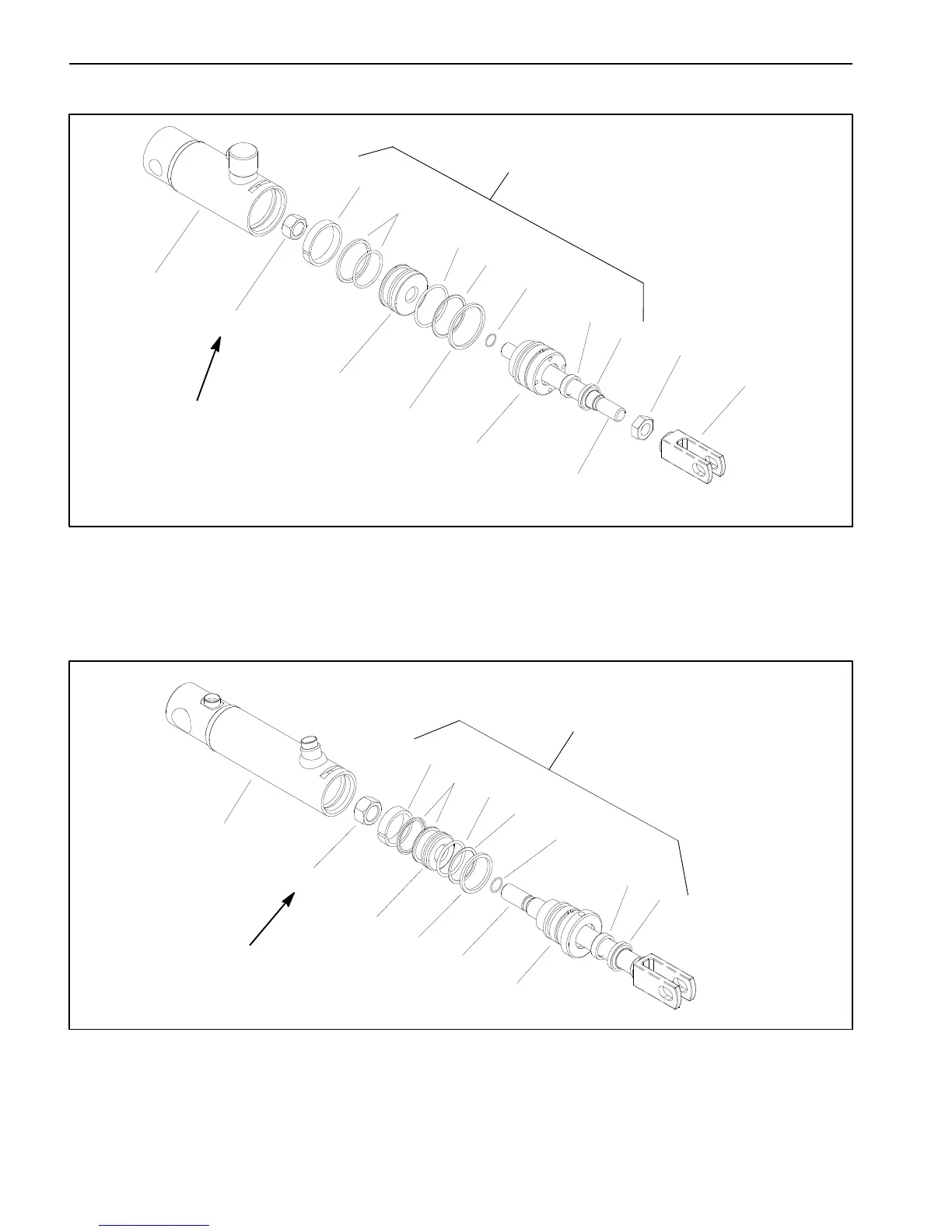

Lift Cylinder Service
1. Seal kit
2. Wear ring
3. Seal with loader
4. O--ring
5. Back--up ring
6. O--ring
7. Seal
8. Wiper
9. Jam nut
10. Rod clevis
11. Rod
12. Head
13. Retaining ring
14. Piston
15. Lock nut
16. Barrel
Figure 64
FRONT HYDRAULIC CYLINDER
1
9
8
7
6
5
4
3
2
15
14
13
12
11
10
16
60 to 75 ft--lb
(82 to 101 N--m)
1. Seal kit
2. Wear ring
3. Seal with loader
4. O--ring
5. Back--up ring
6. O--ring
7. Seal
8. Wiper
9. Head
10. Rod
11. Retaining ring
12. Piston
13. Lock nut
14. Barrel
Figure 65
CENTER HYDRAULIC CYLINDER
60 to 75 ft--lb
(82 to 101 N--m)
1
2
3
5
6
4
7
10
11
12
13
14
9
8
