Toro Greensmaster
3150 Service Manual

Greensmaster 3150Hydraulic System Page 4 -- 94

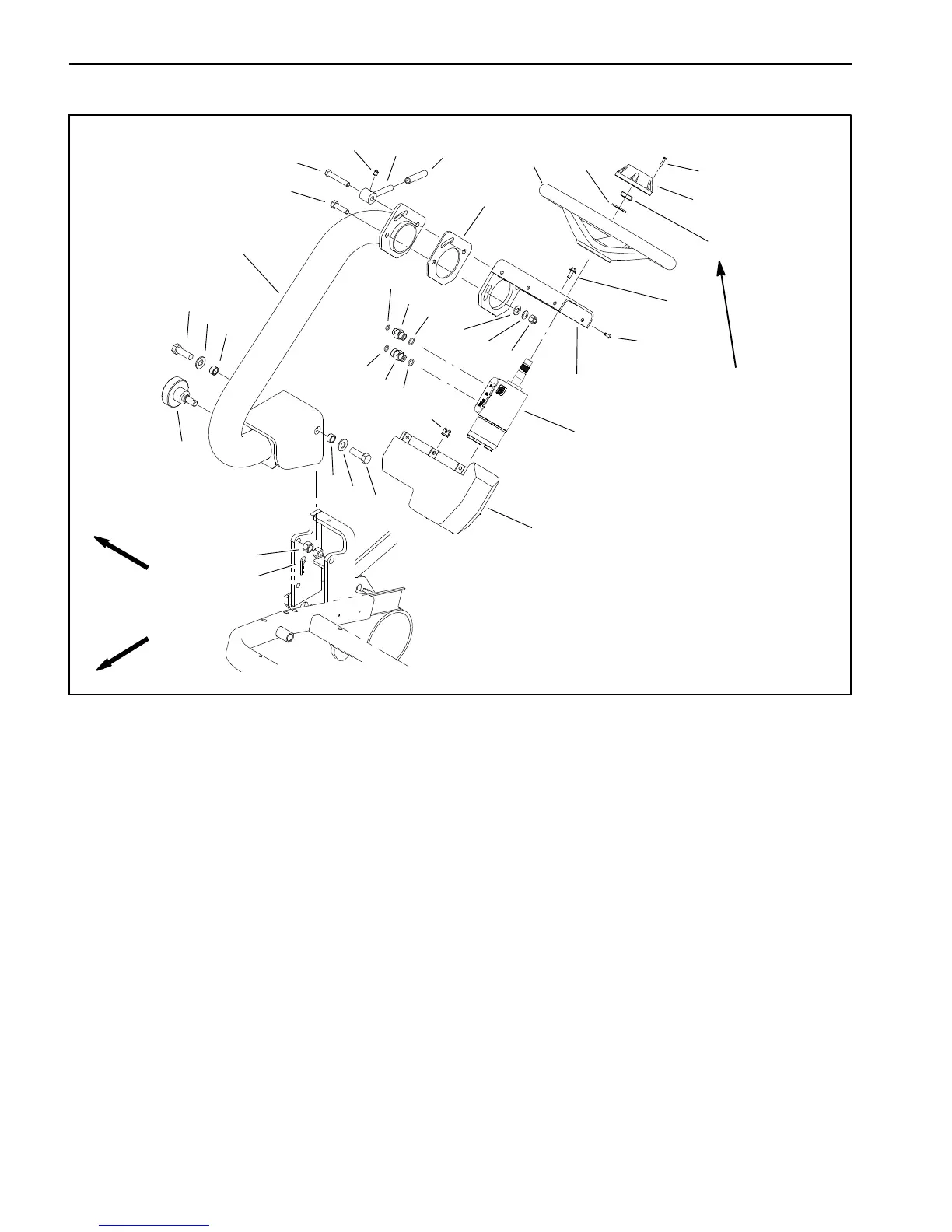

Steering Control Valve
1
20 to 26 ft--lb
(28to35N--m)
1. Steering arm
2. Cap screw (2 used)
3. Cap screw
4. Set screw
5. Lever
6. Handle
7. Friction plate
8. Steering wheel
9. Hex nut
10. Screw
11. Steering wheel cover
12. Cap screw (4 used)
13. Steering mount
14. Cap screw (6 used)
15. Flat washer
16. Lock nut (2 used)
17. Lock washer (2 used)
18. Flat washer (2 used)
19. Straight hydraulic fitting (2 used)
20. O--ring
21. O--ring
22. Steering valve
23. Straight hydraulic fitting (2 used)
24. O--ring
25. Panel nut (6 used)
26. Steering valve cover
27. Cap screw (2 used)
28. Flat washer (2 used)
29. Spacer (2 used)
30. Knob
31. Lock nut (2 used)
32. Hair pin
Figure 70
FRONT
RIGHT
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
24
23
25
26
27
28
29
29
28
27
30
31
32
